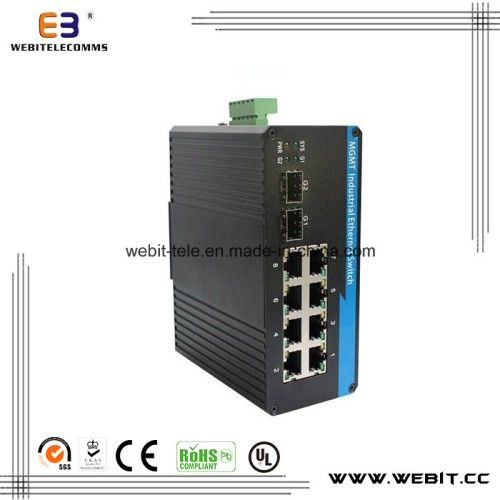

WB-GYP208交换机支持端口1至8上支持PoE（以太网供电）的8端口管理型以太网交换机。交换机分为电源设备（PSE），以这种方式使用时，WB-GYP208交换机使电源集中，并提供每端口15.4瓦的功率。这些开关可用于为符合IEEE 802.3af标准的供电设备（PD）供电，无需额外的接线，并支持具有10 / 100M，全/半双工，MDI / MDI-X的IEEE 802.3 / 802.3u / 802.3x自动感应为您的工业以太网提供了经济的解决方案。此外，内置继电器警告功能可在网络工程师发生电源故障或端口中断时发出警报。
=特征和优点=
8个符合IEEE 802.3af标准的PoE和以太网组合端口
每个PoE端口的48 VDC高达15.4瓦
智能功耗检测与分类
冗余双VDC电源输入
支持OP-Ring（恢复时间<15ms) ,RSTP/STP/MSTPMSTP
-40〜85℃工作温度范围（T型）
支持WEB，CLI，Telnet /串行控制台，Windows实用程序和SNMP管理
非阻塞存储和共享存储交换机架构
MAC地址：8K
=端口配置=
RJ45端口：自动协商，10 / 100Base-T，全/半双工，自动MDI / MDIX，cat5＃铜线缆，操作距离小于100米。
1000Base-FX光口：SFP模块
单模式：20，40，60，80，100,120Km，可选
多模式：550M
波长：850nm，1310nm，1550nm
下载程序端口：基于串行网络管理（RS-232），RJ45
报警输出接口：一个继电器报警输出。支持电源，端口链路和环网报警
指示灯：端口链路，环路故障/异常报警指示10M / 100M速率，运行指示
电源输入选项
输入电压：48V DC（46〜50VDC），冗余电源输入
过载电流保护
支持双电源备份
支持双电源报警输入
连接：6针端子
=环境限制=
-40ºC〜+80ºC（宽温））emperature)
存储温度：-40ºC〜+85ºC+85ºCrdm;C+ 85ºC
湿度：5％〜95％
机械尺寸
尺寸：61 x 120 x 140 mm
房屋保护：IP40防护，铝合金
安装：DIN导轨或墙壁安装
重量：760g
= =批准
emi：fcc part 15subpart b class a，cispr（en55022）class a
EMS：
o en61000-4-2（esd），3级
o EN61000-4-3（RS），3级
o en61000-4-4（eft），3级
o EN61000-4-5（浪涌），3级
o EN61000-4-6（CS），3级
o EN61000-4-8，3级
冲击：IEC 60068-2-27
自由落体：IEC 60068-2-32
振动：IEC 60068-2-6
=保修=
5年

The WB-GYP208 switches 8-port managed Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 8. The switches are classified as power source equipment (PSE), and when used in this way, the WB-GYP208 switches enable centralization of the power supply and provide up to 15.4 watts of power per port. The switches can be used to power IEEE 802.3af compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network. In addition, the built-in relay warning function alerts network engineers when power failures or port breaks occur.
=Features and Benefits=
8 IEEE 802.3af-compliant PoE and Ethernet combo ports
Up to 15.4 watts at 48 VDC per PoE port
Intelligent power consumption detection and classification
Redundant dual VDC power inputs
Support for OP-Ring (Recovery time<15ms) ,RSTP/STP/MSTPMSTP
-40 to 85C operating temperature range (T models)
Support for WEB, CLI, Telnet/serial console, Windows utility and SNMP Management
Non-blocking store-and-forward shared-memory switch architecture
MAC address:8K
=Port Configuration=
RJ45 Port: Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.
1000Base-FX Optical Port: SFP module
Single-mode:20, 40, 60, 80, 100,120Km,optional
Multi-mode: 550M
Wavelength: 850nm, 1310 nm, 1550nm
DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45
Alarm output interface: One relay alarm output. Support power, port link and ring network alarm
Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication
Power Input options
Input Voltage: 48V DC (46~50VDC) ,Redundant power input
Overload Current Protection
Support dual power backup
Support dual power alarm input
Connection: 6 pin terminal
=Environmental Limits=
-40ºC ~+ 80ºC( Wide Temperature)emperature)emperature)
Storage Temperature:-40ºC ~+ 85ºC+ 85ºCrdm;C+ 85ºC
Humidity: 5%~95%
Mechanical Dimension
Dimensions: 61 x 120 x 140 mm
House Protection: IP40 protection, Aluminium Alloy
Installation: DIN-Rail or wall mounting
Weight: 760g
=Approval=
EMI: FCC Part 15Subpart B Class A, CISPR (EN55022) class A
EMS:
o EN61000-4-2 (ESD),Level 3
o EN61000-4-3 (RS),Level 3
o EN61000-4-4 (EFT),Level 3
o EN61000-4-5 (Surge),Level 3
o EN61000-4-6 (CS),Level 3
o EN61000-4-8,Level 3
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
=Warranty=
5 years
