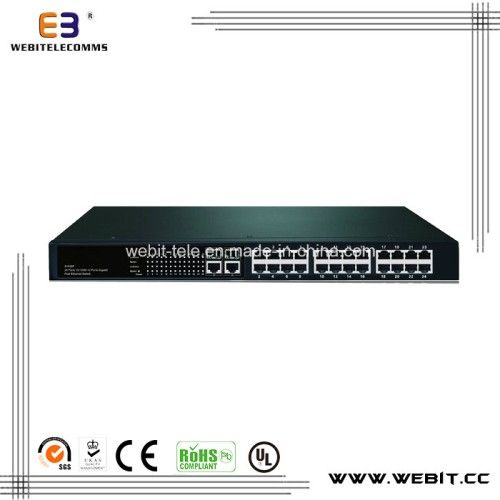

10/100/1000m Telecom Level Fiber Ethernet Switches with 24 Ports
10/100 / 1000m具有24个端口的电信级光纤以太网交换机
议价
加入意向| 型号。 | WB-fes2024 |
| 接线设备 | 集成接线 |
| 条件 | 用过的 |
| 交货时间 | 7〜14天 |
| 规范 | ce，rohs，iso，sgs |
| HS编码 | 8517709000 |
| 类型 | 光纤收发器 |
| 证明 | ce，iso，rohs |
| 港口 | 2〜24端口可选 |
| 商标 | Webitelecomms |
| 起源 | 宁波中国。 |
为Netbar，工作站，中小企业会议，无法管理的10/100 / 1000M上行光纤以太网交换机生产。提供24 * 10/100 / 1000M自适应RJ45产品，2 * 10/100 / 1000M上行RJ45 / SFP（迷你GBIC）端口，可以减少延时和宽度，满足高数据传输。盒子符合19'机架安装设计。
（1）主要特点
1.符合IEEE802.3 / IEEE802.3u，IEEE802.3ab，IEEE802.3z标准
每个端口可以适应全双工802.3x和半双工
3. 24 * 10 / 100M适配RJ45端口，2 * 10/100 / 1000M RJ45 / SFP（迷你GBIC）重新连接
4.采用存储转发模式
5.支持MAC学习
6.灵活的LED指示灯，显示工作情况，并在每分钟内找出错误
19U盒，机架式设计
（2）Spefication
标准 | 802.3 / ieee 802.3u / ieee 802.3ab / ieee 802.3z / ieee 802.3x |
| 修复端口 | 24 * 10 / 100M adative RJ45端口 2 * 10/100 / 1000M上行RJ45 / SFP（迷你GBIC）端口 |
以太网电缆 | 10Base-T：CAT -3/4/5 UTP，最大可达100m 100Base-TX：CAT-5 UTP，最大可达100m 1000Base-T：CAT-5e UTP，最大可达100m |
纤维模型 | 50 /125μm多模，传输550mit 550mit 550m 9 /125μm单模，10kmit传输10kmit 10km 9 /125μm单模，传输40kmit 40kmit 40km 9 /125μm单模，传输80kmit 80kmit 80km |
LED指示灯 | （电源）。（连接/活动）（速度）1-26 |
| 卷 | 8.8Gbps |
| 苹果电脑 | 8K |
转换率 | 10Mbps的：14880pps 100Mbps的：148800pps 100Mbps的：1488000pps |
尺寸 | 440 * 180 * 44（毫米） |
| 输入电压 | 100V〜240VAC，50 / 60HZ |
| 消费 | < 15W |
| 工作温度 | 0ºC至40ºC40ºCrdm;Co 40ºC |
| 储存温度 | -40ºC至70ºC70ºCrdm;Co 70ºC |
| 湿度 | 5％至90％RH |
| 散热 | 自然散热 |
| 打包清单 | 电源 ECOM S1526F设备 指示和担保卡 固定安装 焦点 |
| Model NO. | WB-FES2024 |
| Wiring Devices | Integrated Wiring |
| Condition | Used |
| Lead Time | 7~14 Days |
| Specification | CE, RoHS, ISO, SGS |
| HS Code | 8517709000 |
| Type | Fiber Transceiver |
| Certification | CE, ISO, RoHS |
| Port | 2~24 Ports for Optional |
| Trademark | Webitelecomms |
| Origin | Ningbo China. |
Produced for the Netbar, working station, Conference of Small and Medium Sized Enterprises, unmanageable 10/100/1000M uplink Fiber Ethernet Switch. provides 24* 10/100/1000M adaptive RJ45 prots , 2*10/100/1000M uplink RJ45/SFP (mini GBIC) Re-port, can reduce the time-delay and width and satisfy with the high data transfer. The casset obeys to the 19' rack-mount designs.
(1)Main features
1. Comply with IEEE802.3/IEEE802.3u,IEEE802.3ab,IEEE802.3z Standar
2. Each ports can adapt to Full-duplex 802.3x and half-duplex
3. 24 * 10/100M adative RJ45 ports,2*10/100/1000M RJ45/SFP(mini GBIC)Re-ports
4. Adopt to the Store-and-forward mode
5. Support for the MAC learning
6. Flexible LED indicator,it shows the working situation and figure out the error in every minute
7. 19U casset, rack-mount design
(2)Spefication
Standard | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3z/IEEE 802.3x |
| Fix ports | 24 * 10/100M adative RJ45 ports 2*10/100/1000M uplink RJ45/SFP(mini GBIC)Re-ports |
Ethernet Cable | 10Base-T:CAT -3/4/5 UTP,max up to 100m 100Base-TX:CAT-5 UTP,max up to 100m 1000Base-T:CAT-5e UTP,max up to 100m |
Fiber model | 50/125µm Multimode ,transmit 550mit 550mit 550m 9/125µm single-mode,transmit 10kmit 10kmit 10km 9/125µm single-mode,transmit 40kmit 40kmit 40km 9/125µm single-mode, transmit 80kmit 80kmit 80km |
LED Indicator | (Power).(Link/Act)(Speed)1-26 |
| Volume | 8.8Gbps |
| MAC | 8K |
Tranfer Rate | 10Mbps:14880PPS 100Mbps:148800PPS 100Mbps:1488000PPS |
SIZE | 440*180*44(mm) |
| Input Voltage | 100V~240VAC,50/60Hz |
| Consumption | < 15W |
| Operating Temperature | 0ºC to 40ºCo 40ºCrdm;Co 40ºC |
| Storage Tem | -40ºC to 70ºCo 70ºCrdm;Co 70ºC |
| Humidity | 5% to 90% RH |
| Heat Dissipation | Natural heat dissipation |
| Packing list | Power supply ECOM S1526F device Instruction and Guarantee Card Fix mount Focal point |
