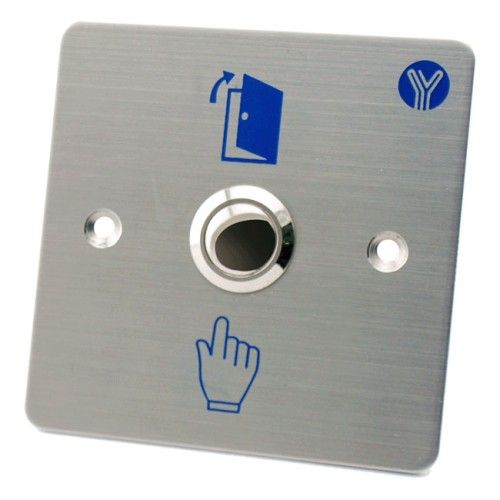

Door Release Button (Stainless steel) EL-807
门释放按钮（不锈钢）EL-807
议价
加入意向| 型号。 | EL-807 |
| 开关数量 | 单控开关 |
| 用法 | 控制按钮，开始按钮，限位按钮，复位按钮，检查按钮，回放开关，断路器，切换开关，控制开关 |
| 联系方式 | 键入联系人 |
| 证明 | ce，ccc |
| 标准结构 | 不锈钢面板，钢钮扣 |
| 输出接点 | 无/ COM |
| 适合门 | 空心门 |
| 工作湿度 | 0-95％（相对湿度） |
| 重量 | 0.17公斤 |
| 规范 | CE |
| 类型 | 正常关闭 |
| 结构体 | 放大器分离型 |
| 类 | 双极开关开关 |
| 牌 | Techcrepower |
| 外形尺寸 | 88lx88wx20h（毫米） |
| 目前评级 | 3a @ 36vdc最大 |
| 机械寿命 | 500000测试 |
| 工作温度 | 10〜+ 55℃（14-131f）-131f）131f) |
| 面板材料 | 不锈钢面板，拉丝成品 |
| 商标 | techcrepower |
| 起源 | 中国 |
介绍：
门禁按钮是门禁系统中最常见和最常用的按钮。它们经常用于公共机构，银行，大中小企业，百货公司和住宅。
产品规格：
产品参数参数说明
Dimensions88Lx88Wx20H（毫米）
标准结构不锈钢面板，钢钮扣
额定电流3A @ 36VDC最大
输出ContactNO / COM
机械寿命500000测试
适用于门下门
工作温度10〜+ 55℃（14-131F）131F）131F)
工作湿度0-95％（相对湿度）
面板材料不锈钢面板，拉丝成品
Weight0.17kg
优点：
不锈钢面板优雅风格。
500000次循环测试。
三触点输出，适用于各种锁。
访问控制的最佳选择。
门禁按钮是门禁系统中最常见和最常用的按钮。它们经常用于公共机构，银行，大中小企业，百货公司和住宅。
产品规格：
产品参数参数说明
Dimensions88Lx88Wx20H（毫米）
标准结构不锈钢面板，钢钮扣
额定电流3A @ 36VDC最大
输出ContactNO / COM
机械寿命500000测试
适用于门下门
工作温度10〜+ 55℃（14-131F）131F）131F)
工作湿度0-95％（相对湿度）
面板材料不锈钢面板，拉丝成品
Weight0.17kg
优点：
不锈钢面板优雅风格。
500000次循环测试。
三触点输出，适用于各种锁。
访问控制的最佳选择。
| Model NO. | EL-807 |
| Number of Switch | Single Control Switch |
| Usage | Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
| Contact Type | Type a Contact |
| Certification | CE, CCC |
| Standard Structure | Stainless Steel Panel, Steel Button |
| Output Contact | No/COM |
| Suitable for Door | Hollow Door |
| Operating Humidity | 0-95% ( Relative Humidity) |
| Weight | 0.17kg |
| Specification | CE |
| Type | Normal Close |
| Structure | Amplifier Separated Type |
| Kind | Double-pole on-off Switch |
| Brand | Techcrepower |
| Dimensions | 88lx88wx20h(mm) |
| Current Rating | 3A@36VDC Max |
| Mechanical Life | 500000 Tested |
| Operating Temp | 10~+55°c(14-131f)-131f)131f) |
| Panel Material | Stainless Steel Panel, Wire Drawing Finished |
| Trademark | techcrepower |
| Origin | China |
Introduction:
Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.
Specifications:
Product Parameter Parameter Description
Dimensions88Lx88Wx20H(mm)
Standard StructureStainless steel Panel, Steel Button
Current Rating3A@36VDC Max
Output ContactNO/COM
Mechanical Life500000 tested
Suitable for DoorHollow Door
Operating temp10~+55° C(14-131F)131F)131F)
Operating Humidity0-95% ( relative humidity)
Panel MaterialStainless steel Panel, Wire Drawing Finished
Weight0.17kg
Advantage:
Stainless steel Panel with Elegant Style.
500000 Cycles tests.
Three Contact Output, Suitable for all kinds of Locks.
The Best Choice for Access Control.
Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.
Specifications:
Product Parameter Parameter Description
Dimensions88Lx88Wx20H(mm)
Standard StructureStainless steel Panel, Steel Button
Current Rating3A@36VDC Max
Output ContactNO/COM
Mechanical Life500000 tested
Suitable for DoorHollow Door
Operating temp10~+55° C(14-131F)131F)131F)
Operating Humidity0-95% ( relative humidity)
Panel MaterialStainless steel Panel, Wire Drawing Finished
Weight0.17kg
Advantage:
Stainless steel Panel with Elegant Style.
500000 Cycles tests.
Three Contact Output, Suitable for all kinds of Locks.
The Best Choice for Access Control.
