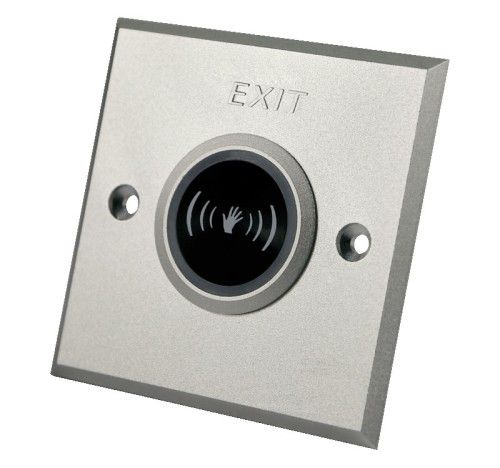

Infrared Sensor Exit Button EL-806D
红外传感器退出按钮EL-806D
议价
加入意向| 型号。 | EL-806D |
| 开关数量 | 单控开关 |
| 用法 | 控制按钮，开始按钮，限位按钮，复位按钮，检查按钮，断路器，切换开关，控制开关 |
| 联系方式 | 键入联系人 |
| 证明 | ce，ccc |
| 输入 | DC12V |
| 输出接点 | NO / NC / COM |
| 适合门 | 空心门 |
| 合适的湿度 | 0-95％（相对湿度） |
| 重量 | 0.15公斤 |
| 规范 | CE |
| 类型 | 正常关闭 |
| 结构体 | 放大器分离型 |
| 类 | 双极开关开关 |
| 牌 | Techcrepower |
| 外形尺寸 | 86lx86wx25h（毫米） |
| DC12V | 1a @ 30vdc，0.5a@125vac |
| 机械寿命 | 1 000 000测试 |
| 工作温度 | -20℃〜+ 55℃（14-131f）C（14-131f）(14-131f) |
| 检测范围 | 4-10cm（可调） |
| 商标 | techcrepower |
| 起源 | 中国 |
介绍：
门禁按钮是门禁系统中最常见和最常用的按钮。它们经常用于公共机构，银行，大中小企业，百货公司和住宅。
产品规格：
产品参数参数说明
Dimensions86Lx86Wx25H（毫米）
InputDC12V
接触等级1A @ 30VDC，0.5A@125VAC
输出ContactNO / NC / COM
机械寿命1,000,000次测试
适用于门下门
工作温度-20°C〜+ 55°C（14-131°F）（14-131°F）(14-131F)
适用湿度0-95％（相对湿度）
检测范围4-10cm（可调）
LED指示灯白色LED指示灯：电源关闭红色LED指示灯：电源打开（待机）绿色LED指示灯：电源开启（感觉）
Weight0.15kg
优点：
无机械螺栓设计
不锈钢面板优雅风格
经过1 000 000次循环测试
三触点输出，适用于
各种锁
访问控制的最佳选择
门禁按钮是门禁系统中最常见和最常用的按钮。它们经常用于公共机构，银行，大中小企业，百货公司和住宅。
产品规格：
产品参数参数说明
Dimensions86Lx86Wx25H（毫米）
InputDC12V
接触等级1A @ 30VDC，0.5A@125VAC
输出ContactNO / NC / COM
机械寿命1,000,000次测试
适用于门下门
工作温度-20°C〜+ 55°C（14-131°F）（14-131°F）(14-131F)
适用湿度0-95％（相对湿度）
检测范围4-10cm（可调）
LED指示灯白色LED指示灯：电源关闭红色LED指示灯：电源打开（待机）绿色LED指示灯：电源开启（感觉）
Weight0.15kg
优点：
无机械螺栓设计
不锈钢面板优雅风格
经过1 000 000次循环测试
三触点输出，适用于
各种锁
访问控制的最佳选择
| Model NO. | EL-806D |
| Number of Switch | Single Control Switch |
| Usage | Control Button, Start Button, Limit Button, Reset Button, Check Button, Disconnector, Change-over Switch, Control Switch |
| Contact Type | Type a Contact |
| Certification | CE, CCC |
| Input | DC12V |
| Output Contact | No/Nc/COM |
| Suitable for Door | Hollow Door |
| Suitable Humidity | 0-95% (Relative Humidity) |
| Weight | 0.15kg |
| Specification | CE |
| Type | Normal Close |
| Structure | Amplifier Separated Type |
| Kind | Double-pole on-off Switch |
| Brand | Techcrepower |
| Dimensions | 86lx86wx25h(mm) |
| DC12V | 1A@30VDC, 0.5A@125VAC |
| Mechanical Life | 1, 000, 000 Tested |
| Operating Temp | -20°c~+55°c(14-131f)c(14-131f)(14-131f) |
| Detection Range | 4-10cm(Adjustable) |
| Trademark | techcrepower |
| Origin | China |
Introduction:
Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.
Specifications:
Product ParameterParameter Description
Dimensions86Lx86Wx25H(mm)
InputDC12V
Contact Rating1A@30VDC, 0.5A@125VAC
Output ContactNO/NC/COM
Mechanical Life1, 000, 000 tested
Suitable for DoorHollow Door
Operating temp-20° C~+55° C(14-131F)(14-131F)(14-131F)
Suitable Humidity0-95% (relative humidity)
Detection range4-10cm(Adjustable)
LED IndicatorWhite LED indicator: Power OFF Red LED indicator: Power ON(standby) Green LED indicator: Power ON(sensation)
Weight0.15kg
Advantage:
Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 1, 000, 000 Cycles
Three Contact Output, Suitable for
All kinds of locks
The Best Choice of Access Control
Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.
Specifications:
Product ParameterParameter Description
Dimensions86Lx86Wx25H(mm)
InputDC12V
Contact Rating1A@30VDC, 0.5A@125VAC
Output ContactNO/NC/COM
Mechanical Life1, 000, 000 tested
Suitable for DoorHollow Door
Operating temp-20° C~+55° C(14-131F)(14-131F)(14-131F)
Suitable Humidity0-95% (relative humidity)
Detection range4-10cm(Adjustable)
LED IndicatorWhite LED indicator: Power OFF Red LED indicator: Power ON(standby) Green LED indicator: Power ON(sensation)
Weight0.15kg
Advantage:
Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 1, 000, 000 Cycles
Three Contact Output, Suitable for
All kinds of locks
The Best Choice of Access Control
