High Quality Infrared Sensor Exit Button
高品质红外传感器退出按钮
议价
加入意向| 型号。 | AB-806C |
| 开关数量 | 单控开关 |
| 用法 | 控制按钮，开始按钮，限位按钮，复位按钮，检查按钮，回放开关，断路器，切换开关，控制开关 |
| 联系方式 | 键入联系人 |
| 证明 | sgs，iso9001，ul，ce，ccc |
| 输入 | DC12V |
| 输出接点 | NO / NC / COM |
| 适合门 | 空心门 |
| 重量 | 0.12公斤 |
| 交货 | 3-5天 |
| 规范 | iso，ce，fcc，rohs，sgs |
| 类型 | 正常关闭 |
| 结构体 | 放大器分离型 |
| 类 | 双极开关开关 |
| 牌 | Techcrepower |
| 外形尺寸 | 86lx50wx34h（毫米） |
| 联系等级 | 1a @ 30vdc，0.5a@125vac |
| 机械寿命 | 1 000 000测试 |
| 检测范围 | 4-10cm（可调） |
| 打包 | 箱子和纸箱 |
| 商标 | Techcrepower |
| 起源 | 深圳 |
高品质矩形红外传感器退出按钮
介绍 ：
门禁按钮是门禁系统中最常见和最常用的按钮。它们经常用于公共机构，银行，大中小企业，百货公司和住宅。
产品规格：
| 外形尺寸 | 86Lx50Wx34H（毫米） |
| 输入 | DC12V |
| 联系等级 | 1A @ 30VDC，0.5A @ 125VAC |
| 输出接点 | NO / NC / COM |
| 机械寿命 | 1,000,000次测试 |
| 适合门 | 空心门 |
| 工作温度 | -20℃〜+ 55℃（14-131f）（14-131f）(14-131F) |
| 合适的湿度 | 0-95％（相对湿度） |
| 检测范围 | 4-10cm（可调） |
| LED指示灯 | 白色LED指示灯：电源关闭红色LED指示灯：电源打开（待机）绿色LED指示灯：电源开启（感觉） |
| 重量 | 0.12公斤 |
优点：
无机械螺栓设计
不锈钢面板优雅风格
经过100万次循环测试
三触点输出，适用于
各种锁
访问控制的最佳选择
| Model NO. | AB-806C |
| Number of Switch | Single Control Switch |
| Usage | Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch |
| Contact Type | Type a Contact |
| Certification | SGS, ISO9001, UL, CE, CCC |
| Input | DC12V |
| Output Contact | No/Nc/COM |
| Suitable for Door | Hollow Door |
| Weight | 0.12kg |
| Delivery | 3-5 Days |
| Specification | ISO, CE, FCC, RoHS, SGS |
| Type | Normal Close |
| Structure | Amplifier Separated Type |
| Kind | Double-pole on-off Switch |
| Brand | Techcrepower |
| Dimensions | 86lx50wx34h(mm) |
| Contact Rating | 1A@30VDC, 0.5A@125VAC |
| Mechanical Life | 1, 000, 000 Tested |
| Detection Range | 4-10cm(Adjustable) |
| Packaging | Box and Carton |
| Trademark | Techcrepower |
| Origin | Shenzhen |

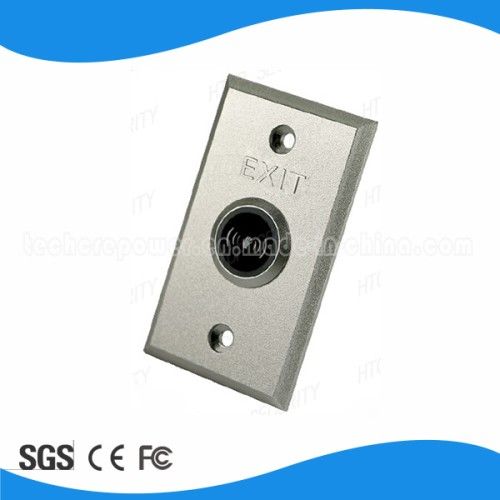

High Quality Rectangle Infrared Sensor Exit Button
Introduction :
Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large,small and medium-sized enterprises, department stores and residences.
Specifications:
| Dimensions | 86Lx50Wx34H(mm) |
| Input | DC12V |
| Contact Rating | 1A@30VDC,0.5A@125VAC |
| Output Contact | NO/NC/COM |
| Mechanical Life | 1,000,000 tested |
| Suitable for Door | Hollow Door |
| Operating temp | -20°C~+55°C(14-131F)(14-131F)(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Detection range | 4-10cm(Adjustable) |
| LED Indicator | White LED indicator: Power OFF Red LED indicator: Power ON(standby) Green LED indicator: Power ON(sensation) |
| Weight | 0.12kg |
Advantage:
Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 1,000,000 Cycles
Three Contact Output,Suitable for
all kinds of locks
The Best Choice of Access Control
