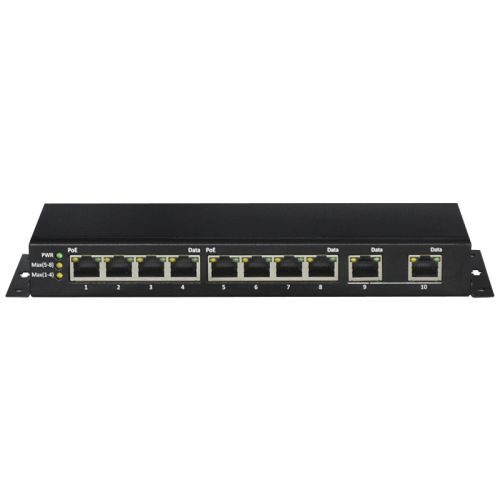

8 Poe Port and 2 Data Uplink Port Poe Network Switch (TS1008F)
8 Poe端口和2个数据上行链路端口PoE网络交换机（TS1008F）
| 型号。 | ts1008f |
| 类型 | 有线 |
| 电源引脚分配 | 数据提供超过1/2和3/6 |
| Poe标准 | 802.3af标准/ AT |
| 应用 | 苏荷 |
| 转移率 | 个10 / 100Mbps |
| 网络 | 以太网络 |
| 商标 | phynam |
| 规范 | ce / emc，ce / lvd，fcc认证 |
| HS编码 | 85176219 |
| 通讯模式 | 全双工和半双工双机uplex |
| 端口 | 8个100米Poe端口和2千兆上行端口 |
| Poe距离 | 高达100米 |
| 网站 | 中间节点路由器 |
| 火墙 | 没有防火墙 |
| 港口结构 | 不是模块化 |
| 性能 | 存储 - 转发 |
| 运输包装 | 单位包装尺寸：374 * 232 * 82mm |
| 起源 | 东莞广东中国 |
8个PoE端口和2个数据上行端口PoE网络交换机（TS1008F）
具有48V / 2A外部电源的8端口10 / 100Mbps PoE交换机为您的PoE设备（IP摄像机，VoIP，无线AP等）提供了更轻松的安装方式，可以根据PoE标准检测PoE设备。用户不必担心PoE交换机会损坏其PoE设备。最大传输距离为100米，采用Cat5电缆。电缆较短可降低电缆的功率退化;高品质的电缆也可以减少功耗。插拔播放设计使安装相当容易，用户不需要任何配置，这使得PoE交换机成为IP摄像机，无线AP，VoIP用户的非常好的选择。sers.
主要特征
8 10 / 100Mbps自动协商RJ45端口支持PoE和2个10 / 100M上行接口
符合IEEE802.3af /标准
每个端口支持自动协商 - 10 / 20,100 / 200Mbps（快速以太网）
带宽3.6Gbps
单个PoE端口的最大功率为32W
支持自动检测功能，在系统电源过载或非PoE设备时保护系统
LED指示灯用于监控电源，连接，活动和速度
48V / 2A外部电源适配器，超过12（+）36（ - ）
支持半双工模式的全双工和背压IEEE802.3ax流量控制
技术规格
注意：
1）所有操作只能由合格的维修技术人员提供。
2）确保连接到交换机的PD符合IEEE 802.3af标准。
3）拔下电源适配器之前，请确保电源已关闭。
4）确保所有PoE PD的功耗小于总功率
5）请避免交换机上放置重物。
6）请勿在靠近水的地方使用本产品，例如在湿地下室或游泳池附近。
7）避免在暴风雨期间使用本产品。雷电可能会有远程的电击危险。
8）对于室外使用，开关本身应放置在室内
防护罩。
9）固件升级过程中的切断电源可能会损坏设备。
10）仅使用制造商指定的附件/附件。
11）打开开关或篡改保修贴纸可能导致您的保修失效。
具有48V / 2A外部电源的8端口10 / 100Mbps PoE交换机为您的PoE设备（IP摄像机，VoIP，无线AP等）提供了更轻松的安装方式，可以根据PoE标准检测PoE设备。用户不必担心PoE交换机会损坏其PoE设备。最大传输距离为100米，采用Cat5电缆。电缆较短可降低电缆的功率退化;高品质的电缆也可以减少功耗。插拔播放设计使安装相当容易，用户不需要任何配置，这使得PoE交换机成为IP摄像机，无线AP，VoIP用户的非常好的选择。sers.
主要特征
8 10 / 100Mbps自动协商RJ45端口支持PoE和2个10 / 100M上行接口
符合IEEE802.3af /标准
每个端口支持自动协商 - 10 / 20,100 / 200Mbps（快速以太网）
带宽3.6Gbps
单个PoE端口的最大功率为32W
支持自动检测功能，在系统电源过载或非PoE设备时保护系统
LED指示灯用于监控电源，连接，活动和速度
48V / 2A外部电源适配器，超过12（+）36（ - ）
支持半双工模式的全双工和背压IEEE802.3ax流量控制
技术规格
| 标准协议协议ocols | IEEE802.3,802.3u，802.3af / at，802.3x |
| csma / cd，tcp / ip | |
| 基本功能 | 线速性能 MAC地址自动学习和自动老化 用于半双工模式的全双工模式和背压的IEEE802.3x流量控制 |
| 电源 | 100-240 V，50/60 Hz，带48V / 2A电源适配器 |
| 转移方式 | 存储 - 转发 |
| 接口 | 8个10/100 / Mbps RJ45 poe端口，2千兆上行端口 |
| 网络媒体 | 10Base-T：UTP类别3,4,5电缆（最大100m） EIA / TIA-568100ÙSTP（最大100m）妈妈100m）um 100m) 100Base-Tx：UTP类别5,5e电缆（最大100m） eia / tia-568100Ùstp（最大100m）最大100m）ax 100m) 1000Base-T：UTP类别5,5e电缆（最大100m） |
| 指标 | 电源，链路/动作（10 / 100Mbps） |
| 证书 | fcc，ce，rohs |
| 环境 | 工作温度：0°C〜45°C〜45°Ceg;C~45°C 储存温度：-10°C〜70°C〜70°Ceg;C~70°C 工作湿度：10％〜90％无冷凝 存储湿度：5％〜90％无冷凝 |
| 外形尺寸 | 225 * 121 * 35毫米 |
| 安全标准 | CE / LVD |
| 保证 | 一年 |
| 包装内容 | 8端口PoE交换机 数据表 电源线（可选型） |
注意：
1）所有操作只能由合格的维修技术人员提供。
2）确保连接到交换机的PD符合IEEE 802.3af标准。
3）拔下电源适配器之前，请确保电源已关闭。
4）确保所有PoE PD的功耗小于总功率
5）请避免交换机上放置重物。
6）请勿在靠近水的地方使用本产品，例如在湿地下室或游泳池附近。
7）避免在暴风雨期间使用本产品。雷电可能会有远程的电击危险。
8）对于室外使用，开关本身应放置在室内
防护罩。
9）固件升级过程中的切断电源可能会损坏设备。
10）仅使用制造商指定的附件/附件。
11）打开开关或篡改保修贴纸可能导致您的保修失效。
| Model NO. | TS1008F |
| Type | Wired |
| Power Pin Assignment | Data Provided Over Pairs Over 1/2and 3/6 |
| Poe Standard | 802.3af/at |
| Application | Soho |
| Transfer Rate | 10/100Mbps |
| Network | Ethernet |
| Trademark | PHYNAM |
| Specification | CE/EMC, CE/LVD, FCC Certification |
| HS Code | 85176219 |
| Communication Mode | Full-Duplex & Half-DuplexDuplexuplex |
| Ports | 8 100m Poe Port and 2 Giga Uplink Port |
| Poe Distance | up to 100m |
| Network Site | Intermediate Node Routers |
| Firewall | Without Firewall |
| Port Structure | Not Modular |
| Performance | Store-and-Forward |
| Transport Package | Unit Packge Size: 374*232*82mm |
| Origin | Dongguan Guangdong China |
8 Poe Port and 2 Data Uplink Port Poe Network Switch (TS1008F)
The 8 port 10/100Mbps PoE switch with 48V/2A external power, provides a easier installation way for your PoE devices (IP cameras,VoIP,wireless AP,etc.).And it can detect your PoE devices according to PoE standard.So the users do not need to worry about the PoE switch will damage their PoE devices.The max transmission distance is 100 meters with Cat5 cables.Ideally,shorter cable would reduce the power degradation over the cables; with high quality cables also can reduce power loss.Plug & play design make the installation quite easy,users do not need any configuration,which make this PoE switch a very good choice for IP cameras,wireless AP,VoIP users.users.sers.
Key features
8 10/100Mbps Auto-Negotiation RJ45 ports support PoE and 2 10/100M uplink interface
Complies with IEEE802.3af /at standards
Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
Bandwidth 3.6Gbps
Max power for single PoE port is 32W
Supports automatically detect function to protect the system when the system power is overloaded or there is non-PoE device
LED indicators for monitoring power, link,activity and speed
48V/2A external power adapter,power over 12(+) 36(-)
Supports IEEE802.3ax flow control for Full Duplex and back-pressure for Half Duplex mode
Technical Specification
Caution :
1) All operation should be provided only by a qualified service technician.
2) Make sure the PDs you connected to the Switch are compliant with IEEE 802.3af.
3) Make sure the power is off before unplugging the power adapter.
4) Makes sure all PoE PDs power consumption is less than total power
5) Please avoid any heavy thing placed on the Switch.
6) Do not use this product near water, for example, in a wet basement or near a swimming pool.
7) Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
8) For outdoor use, the Switch itself should be housed inside a
protective enclosure.
9)Cutting power during a firmware upgrade can damage your device.
10)Only use attachments/accessories specified by the manufacturer.
11)Opening the switch or tampering with the warranty sticker can void your warranty.
The 8 port 10/100Mbps PoE switch with 48V/2A external power, provides a easier installation way for your PoE devices (IP cameras,VoIP,wireless AP,etc.).And it can detect your PoE devices according to PoE standard.So the users do not need to worry about the PoE switch will damage their PoE devices.The max transmission distance is 100 meters with Cat5 cables.Ideally,shorter cable would reduce the power degradation over the cables; with high quality cables also can reduce power loss.Plug & play design make the installation quite easy,users do not need any configuration,which make this PoE switch a very good choice for IP cameras,wireless AP,VoIP users.users.sers.
Key features
8 10/100Mbps Auto-Negotiation RJ45 ports support PoE and 2 10/100M uplink interface
Complies with IEEE802.3af /at standards
Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
Bandwidth 3.6Gbps
Max power for single PoE port is 32W
Supports automatically detect function to protect the system when the system power is overloaded or there is non-PoE device
LED indicators for monitoring power, link,activity and speed
48V/2A external power adapter,power over 12(+) 36(-)
Supports IEEE802.3ax flow control for Full Duplex and back-pressure for Half Duplex mode
Technical Specification
| Standard & Protocolsocolsocols | IEEE802.3, 802.3u, 802.3af/at, 802.3x |
| CSMA/CD, TCP/IP | |
| Basic Function | Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.3x flow control for Full-Duplex Mode and back-pressure for Half-Duplex Mode |
| Power supply | 100-240 V, 50/60 Hz,with 48V/2A power adapter |
| Transfer Method | Store-and-Forward |
| Interface | 8 10/100/Mbps RJ45 poe ports ,2 giga uplink ports |
| Network Media | 10Base-T: UTP category 3, 4, 5 cable (max 100m) EIA/TIA-568 100Ù STP (maximum 100m)mum 100m)um 100m) 100Base-Tx: UTP category 5, 5e cable (max 100m) EIA/TIA-568 100Ù STP (max 100m)max 100m)ax 100m) 1000Base-T: UTP category 5, 5e cable (max 100m) |
| Indicators | Power, Link/Act ( 10/100Mbps) |
| Certificates | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C~45°C~45°Ceg;C~45°C Storage Temperature: -10°C~70°C~70°Ceg;C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Dimensions | 225*121*35 mm |
| Security Standard | CE/LVD |
| Warranty | One year |
| Package content | 8 port PoE switch Datasheet Power cord (optional type) |
Caution :
1) All operation should be provided only by a qualified service technician.
2) Make sure the PDs you connected to the Switch are compliant with IEEE 802.3af.
3) Make sure the power is off before unplugging the power adapter.
4) Makes sure all PoE PDs power consumption is less than total power
5) Please avoid any heavy thing placed on the Switch.
6) Do not use this product near water, for example, in a wet basement or near a swimming pool.
7) Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
8) For outdoor use, the Switch itself should be housed inside a
protective enclosure.
9)Cutting power during a firmware upgrade can damage your device.
10)Only use attachments/accessories specified by the manufacturer.
11)Opening the switch or tampering with the warranty sticker can void your warranty.
