TS1008F是8 * 10 / 100M TX和2 * giga SFP端口PoE交换机。 PoE端口可以自动检测并提供符合IEEE802.3af /兼容的有源设备（PD）的电源。同一根电缆上的电力和数据传输可以将您的网络扩展到没有电源线或插座的地方，您可以在其中安装AP，IP摄像机或IP电话等设备。
TS1008F提供了简单，经济有效和无阻塞的线速性能，具有19英寸金属形状，适用于办公室或部门网络应用中的机架部署。
特征
接口信息
8 * 10 / 100Mbps RJ45端口
2 * 1000Mbps SFP端口
8 *端口PoE
PoE（以太网供电）
符合IEEE802.3af /以太网供电
支持每个PoE端口的PoE功率高达32W
自动检测电源设备
远程电源和数据馈送高达100m
开关
全双工操作的流量控制和半双工操作的背压
4K MAC地址，自动地址学习和地址老化
内置电源可由客户选择
PoE功能
TS1008F可以为连接的设备提供高达32瓦的功率，如VoIP电话，无线接入点;监控摄像机等，现有的猫。 5设备线缆。该开关不需要网络中的设备的单个电源，节省了电源线的成本，并避免了电源插座的可用性问题。
超载安排
TS1008F具有优先功能，有助于在系统电源过载时保护系统。 PoE端口优先安排，系统将切断优先级最低的端口（较大端口号，较低优先级）。
应用
提供8端口PoE在线电源接口，TS1008F可以轻松构建集中控制的IP电话系统，IP摄像机系统和无线AP组。摄像机可以安装在公司或校园的拐角处，用于监视需求。没有电源插座限制，TS1008F可以更轻松高效地安装摄像头
规范
硬件
适配器信息

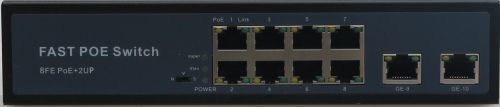

TS1008F is a 8 *10/100M TX and 2 *giga SFP port PoE switch. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
TS1008F provides a simple, costeffective, and non-blocking wire-speed performance with 19-inch metal shape for rack deployment in office or department network application.
Features
Interface information
8 *10/100Mbps RJ45 ports
2 *1000Mbps SFP ports
8*ports PoE
PoE(Power over Ethernet)
Complies with IEEE802.3af/at Power over Ethernet
Supports PoE Power up to 32W for each PoE port
Auto detect power device
Remote power and Data feeding up to 100m
Switch
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
4K MAC address, automatic address learning and address aging
Built-in power supply can be chosen by the customer
PoE Features
The TS1008F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.
Overload Arrangement
TS1008F has the priority function which will help protect the system when the system power is overloaded. a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port(The larger port number, the lower priority).
Application
Providing 8-Port PoE in-line power interfaces, the TS1008F can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the powersocket limitation, the TS1008F makes the installation of cameras more easily and efficiently
Specification
Hardware
Adapter information
