Arial'font-family：Arial，Helvetica，sans-serif;'> 8端口10 / 100Mbps PoE交换机采用48V / 1.25A外部电源，为PoE设备（如IP摄像机，无线AP）提供了更轻松的安装方式，VoIP。它可以根据PoE标准检测您的PoE设备，因此用户不必担心PoE交换机会损坏其PoE设备。最大传输距离为Cat5电缆100米。电缆的功率退化;高品质的电缆也可以减少功耗。插拔播放设计使安装相当容易，用户不需要任何配置，这使得PoE交换机成为IP摄像机，无线AP，VoIP用户的非常好的选择。sers.
特征
4 10 / 100M自动协商RJ45 PoE端口+ 4个非PoE RJ45端口
符合IEEE802.3af标准
每个端口支持自动协商 - 10 / 20,100 / 200Mbps（快速以太网）
带宽1.6G
单个PoE端口的最大功率为15.4W
具有自动检测功能，在系统电源过载或非PoE设备时保护系统
LED指示灯用于监控电源，连接，活动和速度
48V /1.25A外部电源适配器，超过12（+）36（ - ）
支持半双工模式的全双工和背压IEEE802.3ax流量控制
Arial'font-family：Arial，Helvetica，sans-serif;'>技术规格：

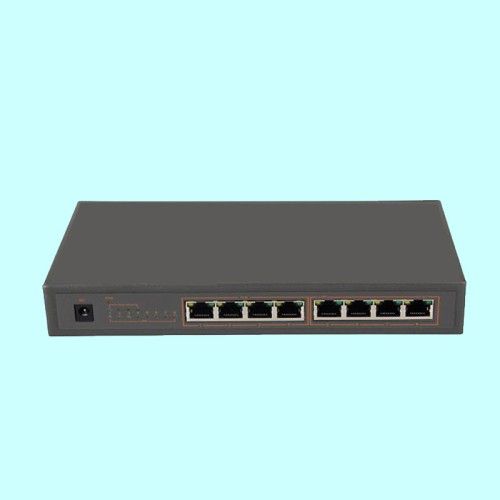

Arial'font-family:Arial, Helvetica, sans-serif;'﹥This 8 port 10/100Mbps PoE switch is with 48V/1.25A external power,it provides a easier installation way for PoE devices ,such as IP cameras,wireless AP,VoIP.And it can detect your PoE devices according to PoE standard.So the users do not need to worry about the PoE switch will damage their PoE devices.The max transmission distance is 100 meters with Cat5 cables.Ideally,shorter cable would reduce the power degradation over the cables; with high quality cables also can reduce power loss.Plug & play design make the installation quite easy,users do not need any configuration,which make this PoE switch a very good choice for IP cameras,wireless AP,VoIP users.users.sers.
Feature
4 10/100M Auto-Negotiation RJ45 PoE port + 4 non PoE RJ45 port
Complies with IEEE802.3af standards
Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
Bandwidth 1.6G
Max power for single PoE port is 15.4W
With automatically detect function to protect the system when the system power is overloaded or there is non-PoE device
LED indicators for monitoring power, link,activity and speed
48V /1.25A external power adapter,power over 12(+) 36(-)
Supports IEEE802.3ax flow control for Full Duplex and back-pressure for Half Duplex mode
Arial'font-family:Arial, Helvetica, sans-serif;'﹥Technical Specification:
