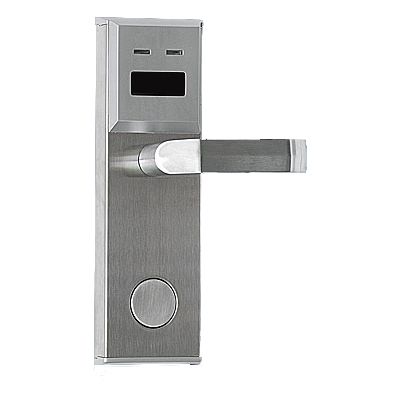

Stainless Steel Silver Mf Card Handle Lock in Door Locks (L523-M)
不锈钢银手柄锁门锁（L523-M）
| 型号。 | l523-m的 |
| 材料 | 不锈钢 |
| 样式 | 现代 |
| 电源类型 | DC |
| 证明 | ce，fcc，rohs |
| 用法 | 酒店，家庭，商业 |
| 名称 | 酒店客房卡锁 |
| 房屋颜色 | 银/金 |
| 卡支持 | Mf1 S50 Plus S70 |
| 工作距离 | 最大45mm |
| 打包 | 箱包装 |
| 规范 | CE |
| 类型 | 智能卡 |
| 表面处理 | 镜面不锈钢 |
| 遥控 | 无遥控器 |
| 数据存储类型 | 离线 |
| 颜色 | 金色和银色 |
| 型号 | L523-M卡锁 |
| 外壳材料 | 不锈钢 |
| 榫 | ansi 5锁 |
| 通讯 | 13.56MHz RFID（带钥匙卡）/红外线（带Lma） |
| 功率 | lr6（aa）电池x 4个 |
| 商标 | Techcrepower |
| 起源 | 中国 |
门锁不锈钢银MF卡手柄锁（L523-M）
特征：
不锈钢面板
RFIDMF®技术，为钥匙卡，非接触式阅读钥匙卡提供100万次的写入寿命ycard
ANSI榫眼
锁定时自由啮合
由AA电池供电，便于更换新产品
一个新电池组打开20 000次
审计跟踪记录最新的800锁交易。
低电池电压警告（哔声和红灯）
会议模式通过通行卡激活通行模式
酒店不要打扰（DND）功能：当拇指从内侧开启时，锁定会通过显示红灯拒绝钥匙卡
紧急释放功能：当紧急情况发生时，锁舌和锁扣自动地通过内部手柄摇动而轻松出口
40mm-50mm厚门
每间酒店锁具双双钟，准确控制客人入住和出发时间，方便客人管理客房。
产品规格：
电源：LR6（AA）电池X 4PCS
低功率报警电压：4.8V
通讯：13.56MHz RFID（带钥匙卡）/红外线（带手持）
卡支持：MF®S50 plus S70s S70s S70
工作距离：45mm最大
工作温度：0-60°Ceg; Ceg; C
工作湿度：15〜85％RH
静态电流： < 30uA30uA
工作电流： < 150mA50mA
内存：800交易包括时间/日期/卡ID /卡类型/房间ID
毛重：3.1KG
包装：10PCS /纸箱为74.0X42.0X32.0CM
内容：前/后面板，榫眼，圆筒，keyx2，电池组，手动/打击
（不含电池，无卡）
特征：
不锈钢面板
RFIDMF®技术，为钥匙卡，非接触式阅读钥匙卡提供100万次的写入寿命ycard
ANSI榫眼
锁定时自由啮合
由AA电池供电，便于更换新产品
一个新电池组打开20 000次
审计跟踪记录最新的800锁交易。
低电池电压警告（哔声和红灯）
会议模式通过通行卡激活通行模式
酒店不要打扰（DND）功能：当拇指从内侧开启时，锁定会通过显示红灯拒绝钥匙卡
紧急释放功能：当紧急情况发生时，锁舌和锁扣自动地通过内部手柄摇动而轻松出口
40mm-50mm厚门
每间酒店锁具双双钟，准确控制客人入住和出发时间，方便客人管理客房。
产品规格：
电源：LR6（AA）电池X 4PCS
低功率报警电压：4.8V
通讯：13.56MHz RFID（带钥匙卡）/红外线（带手持）
卡支持：MF®S50 plus S70s S70s S70
工作距离：45mm最大
工作温度：0-60°Ceg; Ceg; C
工作湿度：15〜85％RH
静态电流： < 30uA30uA
工作电流： < 150mA50mA
内存：800交易包括时间/日期/卡ID /卡类型/房间ID
毛重：3.1KG
包装：10PCS /纸箱为74.0X42.0X32.0CM
内容：前/后面板，榫眼，圆筒，keyx2，电池组，手动/打击
（不含电池，无卡）
| Model NO. | L523-M |
| Material | Stainless Steel |
| Style | Modern |
| Power Type | DC |
| Certification | CE, FCC, RoHS |
| Usage | Hotel, Household, Commercial |
| Name | Hotel Room Card Lock |
| Housing Color | Silver/Golden |
| Card Support | Mf1 S50 Plus S70 |
| Working Distance | 45mm Max |
| Packaging | Box and Carton Packing |
| Specification | CE |
| Type | Smart Card |
| Surface Treatment | Mirror Stainless Steel |
| Remote Control | Without Remote Control |
| Data Storage Types | Offline |
| Color | Golden and Silver |
| Model Number | L523-M Card Lock |
| Housing Material | Stainless Steel |
| Mortise | ANSI 5 Latch |
| Communication | 13.56MHz RFID (with Keycard)/Infrared (with Lma) |
| Power | Lr6 (AA)Battery X 4PCS |
| Trademark | Techcrepower |
| Origin | China |
Stainless Steel Silver MF Card Handle Lock in Door Locks (L523-M)
Features:
Stainless steel panel
RFID MF® Technology, 100, 000 times write life for keycard, contactless reading keycardycardycard
ANSI mortise
Free-engage while locking
Powered by AA battery, easy replace new
Openings 20, 000 times for one new battery pack
Audit trail records the latest 800 lock transactions.
Low Battery Voltage warning (beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release function: The deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens
40mm-50mm thickness door
Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
Specifications:
Power: LR6 (AA)battery X 4PCS
Low power alarm voltage: 4.8V
Communication: 13.56MHz RFID (with keycard)/infrared (with Handheld)
Card support: MF® S50 plus S70s S70s S70
Working Distance: 45mm Max
Working Temperature: 0-60° Ceg; Ceg; C
Working Humidity: 15~85%RH
Static current: < 30uA30uA
Working current: < 150mA50mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Gross Weight: 3.1KG
Package: 10PCS/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel, mortise, cylinder, keyx2, battery-pack, manual/Strike
(no battery included, no card)
Features:
Stainless steel panel
RFID MF® Technology, 100, 000 times write life for keycard, contactless reading keycardycardycard
ANSI mortise
Free-engage while locking
Powered by AA battery, easy replace new
Openings 20, 000 times for one new battery pack
Audit trail records the latest 800 lock transactions.
Low Battery Voltage warning (beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release function: The deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens
40mm-50mm thickness door
Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
Specifications:
Power: LR6 (AA)battery X 4PCS
Low power alarm voltage: 4.8V
Communication: 13.56MHz RFID (with keycard)/infrared (with Handheld)
Card support: MF® S50 plus S70s S70s S70
Working Distance: 45mm Max
Working Temperature: 0-60° Ceg; Ceg; C
Working Humidity: 15~85%RH
Static current: < 30uA30uA
Working current: < 150mA50mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Gross Weight: 3.1KG
Package: 10PCS/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel, mortise, cylinder, keyx2, battery-pack, manual/Strike
(no battery included, no card)
