Modern Zinc Alloy ANSI Mortise Mf Card Electronic Lock for Hotel Door (L923-TM)
现代锌合金ANSI铝合金门电子锁（L923-TM）
议价
加入意向| 型号。 | l923-TM |
| 类型 | 电子 |
| 形状 | 榫眼门锁 |
| 部分 | 键 |
| 颜色 | 银色或金色 |
| 榫 | ANSI |
| 记忆 | 800笔交易 |
| 规范 | CE |
| 材料 | 铁 |
| 样式 | 现代 |
| 防盗标准 | A |
| 门厚适合 | 定制 |
| 完 | 镀铬丝线图 |
| 卡支持 | Mf®S50 Plus S70us S70s S70 |
| 商标 | Techcrepower |
| 起源 | 中国 |
现代锌合金ANSI门锁MF卡门锁电子锁（L923-TM）
介绍：
L923-TM是用于酒店锁管理系统的镀铬拉丝的锌合金。
特征：
锌合金，镀铬拉丝
125KHZ T5577 TEMIC卡技术，非接触式阅读卡
ANSI榫眼
锁定时自由啮合
由AA电池供电，便于更换新产品
一个新电池组打开20 000次
审计跟踪记录最新的800锁交易
低电池电压警告（哔声和红灯）
会议模式通过通行卡激活通行模式
酒店不要打扰（DND）功能：当拇指从内侧开启时，锁定会通过显示红灯拒绝钥匙卡
恐慌释放功能N：当紧急情况发生时，锁舌和锁扣自动地通过内部手柄进行回波，以便于出口
Hotel Lock System™必填项。quired.
40mm-50mm厚门。
每间酒店锁具双双钟，准确控制客人入住和出发时间，方便客人管理客房。
规格
电源：LR6（AA）电池x 4个
低功率报警电压：4.8V
通讯：125KHZ TEMIC卡RFID（带钥匙卡）/红外线（带LMA）
卡支持：125KHZ TEMIC卡
工作距离：45mm最大
工作温度：0-60°Ceg; Ceg; C
工作湿度：15〜85％RH
静态电流： < 30uA30uA
工作电流： < 150mA50mA
内存：800交易包括时间/日期/卡ID /卡类型/房间ID
毛重：3.3KG
包装：10pcs /纸箱在74.0X42.0X32.0CM
内容：前/后面板，榫眼，圆筒，keyx2，电池组，手动/打击
（不含电池，无卡）
我们是专业的酒店门锁系统，我们可以提供各种酒店门锁，如MF1卡酒店门锁，TCP / IP网络酒店门锁，无线酒店门锁，指纹酒店门锁，数字酒店门锁，Temic卡酒店门锁等。
锌合金门锁酒店门锁门锁
介绍：
L923-TM是用于酒店锁管理系统的镀铬拉丝的锌合金。
特征：
锌合金，镀铬拉丝
125KHZ T5577 TEMIC卡技术，非接触式阅读卡
ANSI榫眼
锁定时自由啮合
由AA电池供电，便于更换新产品
一个新的电池组打开20,000次
审计跟踪记录最新的800锁交易
低电池电压警告（哔声和红灯）
会议模式通过通行卡激活通行模式
酒店不要打扰（DND）功能：当拇指从内侧开启时，锁定会通过显示红灯拒绝钥匙卡
紧急释放功能：当紧急情况发生时，锁舌和闩锁自动地通过内部手柄摇动到容易出口
需要酒店锁系统™。quired.
40mm-50mm厚门。
每间酒店锁具双双钟，准确控制客人入住和出发时间，方便客人管理客房。
规格
电源：LR6（AA）电池x 4个
低功率报警电压：4.8V
通讯：125KHZ TEMIC卡RFID（带钥匙卡）/红外线（带LMA）
卡支持：125KHZ TEMIC卡
工作距离：45mm最大
工作温度：0-60°C; Cdeg;C
工作湿度：15〜85％RH
静态电流： < 30uA30uA
工作电流： < 150mA50mA
内存：800交易包括时间/日期/卡ID /卡类型/房间ID
毛重：3.3KG
包装：10pcs /纸箱在74.0X42.0X32.0CM
内容：前/后面板，榫眼，圆筒，keyx2，电池组，手动/打击
（不含电池，无卡）
介绍：
L923-TM是用于酒店锁管理系统的镀铬拉丝的锌合金。
特征：
锌合金，镀铬拉丝
125KHZ T5577 TEMIC卡技术，非接触式阅读卡
ANSI榫眼
锁定时自由啮合
由AA电池供电，便于更换新产品
一个新电池组打开20 000次
审计跟踪记录最新的800锁交易
低电池电压警告（哔声和红灯）
会议模式通过通行卡激活通行模式
酒店不要打扰（DND）功能：当拇指从内侧开启时，锁定会通过显示红灯拒绝钥匙卡
恐慌释放功能N：当紧急情况发生时，锁舌和锁扣自动地通过内部手柄进行回波，以便于出口
Hotel Lock System™必填项。quired.
40mm-50mm厚门。
每间酒店锁具双双钟，准确控制客人入住和出发时间，方便客人管理客房。
规格
电源：LR6（AA）电池x 4个
低功率报警电压：4.8V
通讯：125KHZ TEMIC卡RFID（带钥匙卡）/红外线（带LMA）
卡支持：125KHZ TEMIC卡
工作距离：45mm最大
工作温度：0-60°Ceg; Ceg; C
工作湿度：15〜85％RH
静态电流： < 30uA30uA
工作电流： < 150mA50mA
内存：800交易包括时间/日期/卡ID /卡类型/房间ID
毛重：3.3KG
包装：10pcs /纸箱在74.0X42.0X32.0CM
内容：前/后面板，榫眼，圆筒，keyx2，电池组，手动/打击
（不含电池，无卡）
我们是专业的酒店门锁系统，我们可以提供各种酒店门锁，如MF1卡酒店门锁，TCP / IP网络酒店门锁，无线酒店门锁，指纹酒店门锁，数字酒店门锁，Temic卡酒店门锁等。
锌合金门锁酒店门锁门锁
介绍：
L923-TM是用于酒店锁管理系统的镀铬拉丝的锌合金。
特征：
锌合金，镀铬拉丝
125KHZ T5577 TEMIC卡技术，非接触式阅读卡
ANSI榫眼
锁定时自由啮合
由AA电池供电，便于更换新产品
一个新的电池组打开20,000次
审计跟踪记录最新的800锁交易
低电池电压警告（哔声和红灯）
会议模式通过通行卡激活通行模式
酒店不要打扰（DND）功能：当拇指从内侧开启时，锁定会通过显示红灯拒绝钥匙卡
紧急释放功能：当紧急情况发生时，锁舌和闩锁自动地通过内部手柄摇动到容易出口
需要酒店锁系统™。quired.
40mm-50mm厚门。
每间酒店锁具双双钟，准确控制客人入住和出发时间，方便客人管理客房。
规格
电源：LR6（AA）电池x 4个
低功率报警电压：4.8V
通讯：125KHZ TEMIC卡RFID（带钥匙卡）/红外线（带LMA）
卡支持：125KHZ TEMIC卡
工作距离：45mm最大
工作温度：0-60°C; Cdeg;C
工作湿度：15〜85％RH
静态电流： < 30uA30uA
工作电流： < 150mA50mA
内存：800交易包括时间/日期/卡ID /卡类型/房间ID
毛重：3.3KG
包装：10pcs /纸箱在74.0X42.0X32.0CM
内容：前/后面板，榫眼，圆筒，keyx2，电池组，手动/打击
（不含电池，无卡）
| Model NO. | L923-TM |
| Type | Electronic |
| Shape | Mortise Door Lock |
| Part | Key |
| Color | Silver or Golden |
| Mortise | ANSI |
| Memory | 800 Transactions |
| Specification | CE |
| Material | Iron |
| Style | Modern |
| Anti-theft Standard | A |
| Door Thickness Fits | Customized |
| Finish | Chrome-Plasted Wire Drawing |
| Card Support | Mf® S50 Plus S70us S70s S70 |
| Trademark | Techcrepower |
| Origin | China |

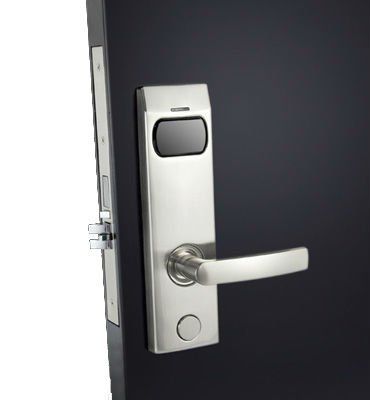

Modern Zinc Alloy ANSI Mortise MF Card Electronic Lock for Hotel Door (L923-TM)
Introduction:
L923-TM is Zinc-alloy made with Chrome-plasted wire drawing for hotel lock management system.
Features:
Zinc-alloy, Chrome-plasted wire drawing
125KHZ T5577 TEMIC Card Technology, contactless reading keycard
ANSI mortise
Free-engage while locking
Powered by AA battery, easy replace new
Openings 20, 000 times for one new battery pack
Audit trail records the latest 800 lock transactions
Low Battery Voltage warning (beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release functio. N: The deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens
Hotel Lock System™ Required.quired.quired.
40mm-50mm thickness door.
Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
SPECIFICATIONS
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage: 4.8V
Communication: 125KHZ TEMIC Card RFID (with keycard)/infrared (with LMA)
Card support: 125KHZ TEMIC Card
Working Distance: 45mm Max
Working Temperature: 0-60° Ceg; Ceg; C
Working Humidity: 15~85%RH
Static current: < 30uA30uA
Working current: < 150mA50mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Gross Weight: 3.3KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel, mortise, cylinder, keyx2, battery-pack, manual/Strike
(no battery included, no card)
We are professional in Hotel Door Lock System, and we can provide various Hotel Door Lock, such as MF1 Card Hotel Door Lock, TCP/IP Network Hotel Door Lock, Wireless Hotel Door Lock, Fingerprint Hotel Door Lock, Digital Hotel Door Lock, Temic Card Hotel Door Lock and so on.
Zinc Alloy Temic Card Hotel Door Lock in Door Locks
Introduction:
L923-TM is Zinc-alloy made with Chrome-plasted wire drawing for hotel lock management system.
Features:
Zinc-alloy, Chrome-plasted wire drawing
125KHZ T5577 TEMIC Card Technology, contactless reading keycard
ANSI mortise
Free-engage while locking
Powered by AA battery, easy replace new
Openings 20,000 times for one new battery pack
Audit trail records the latest 800 lock transactions
Low Battery Voltage warning (beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release functio.n: the deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens
Hotel Lock System™ required.quired.quired.
40mm-50mm thickness door.
Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
SPECIFICATIONS
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage: 4.8V
Communication: 125KHZ TEMIC Card RFID (with keycard)/infrared (with LMA)
Card support: 125KHZ TEMIC Card
Working Distance: 45mm Max
Working Temperature: 0-60°Cdeg;Cdeg;C
Working Humidity: 15~85%RH
Static current: < 30uA30uA
Working current: < 150mA50mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Gross Weight: 3.3KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)
Introduction:
L923-TM is Zinc-alloy made with Chrome-plasted wire drawing for hotel lock management system.
Features:
Zinc-alloy, Chrome-plasted wire drawing
125KHZ T5577 TEMIC Card Technology, contactless reading keycard
ANSI mortise
Free-engage while locking
Powered by AA battery, easy replace new
Openings 20, 000 times for one new battery pack
Audit trail records the latest 800 lock transactions
Low Battery Voltage warning (beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release functio. N: The deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens
Hotel Lock System™ Required.quired.quired.
40mm-50mm thickness door.
Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
SPECIFICATIONS
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage: 4.8V
Communication: 125KHZ TEMIC Card RFID (with keycard)/infrared (with LMA)
Card support: 125KHZ TEMIC Card
Working Distance: 45mm Max
Working Temperature: 0-60° Ceg; Ceg; C
Working Humidity: 15~85%RH
Static current: < 30uA30uA
Working current: < 150mA50mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Gross Weight: 3.3KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel, mortise, cylinder, keyx2, battery-pack, manual/Strike
(no battery included, no card)
We are professional in Hotel Door Lock System, and we can provide various Hotel Door Lock, such as MF1 Card Hotel Door Lock, TCP/IP Network Hotel Door Lock, Wireless Hotel Door Lock, Fingerprint Hotel Door Lock, Digital Hotel Door Lock, Temic Card Hotel Door Lock and so on.
Zinc Alloy Temic Card Hotel Door Lock in Door Locks
Introduction:
L923-TM is Zinc-alloy made with Chrome-plasted wire drawing for hotel lock management system.
Features:
Zinc-alloy, Chrome-plasted wire drawing
125KHZ T5577 TEMIC Card Technology, contactless reading keycard
ANSI mortise
Free-engage while locking
Powered by AA battery, easy replace new
Openings 20,000 times for one new battery pack
Audit trail records the latest 800 lock transactions
Low Battery Voltage warning (beep and red light)
Passage mode activate by passage card for meeting case
Do not disturb (DND) function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release functio.n: the deadbolt and latch are automatically retraced by inside handle shaking to easy egress when emergency happens
Hotel Lock System™ required.quired.quired.
40mm-50mm thickness door.
Each hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
SPECIFICATIONS
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage: 4.8V
Communication: 125KHZ TEMIC Card RFID (with keycard)/infrared (with LMA)
Card support: 125KHZ TEMIC Card
Working Distance: 45mm Max
Working Temperature: 0-60°Cdeg;Cdeg;C
Working Humidity: 15~85%RH
Static current: < 30uA30uA
Working current: < 150mA50mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Gross Weight: 3.3KG
Package: 10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)
