Online Zigbee Hotel Wireless Door Lock
在线Zigbee酒店无线门锁
议价
加入意向| 型号。 | L527W无线在线酒店锁 |
| 类型 | 电子 |
| 部分 | 锁 |
| 用法 | 家用门锁，卧室 |
| 颜色 | 银/金 |
| 榫 | ansi 5 latch，p2s p2l |
| 阅读距离 | 最大5厘米 |
| 工作温度 | 0〜60°C°Cg;c°c |
| 规范 | CE证书 |
| 材料 | 锌合金 |
| 形状 | 榫眼门锁 |
| 门厚适合 | 35-50mm |
| 锁材料 | 不锈钢 |
| 卡的种类 | iso14443型a（mf-1 s50，s70），13.56mhz |
| 卡容量 | 150张卡 |
| 记录容量 | 250条记录 |
| 商标 | Techcrepower |
| 起源 | 深圳 |
产品规格：
2.4G（Zigbee）无线频率
rfid mf1卡（iso1443a）
不锈钢
无线在线Zigbee酒店门锁
无线酒店锁是为大型酒店和办公楼设计的先进产品，继承了网络锁的所有优点，解决了网络锁电缆的麻烦，使得无线锁网络的建立变得更加容易。基本功能和网络功能与其他网络锁（TCP / IP，RS485）一致：通过前台，管理员可以下载数据到无线锁，远程控制锁，实时监控锁定状态;当打开门PC可立即接收解锁记录等...
参数：
材料 | 不锈钢 |
表面处理 | 不锈钢拉丝+ ABS塑料 |
| 颜色 | 银色（金色可选） |
| 榫 | ansi 5 latch，p2s p2l |
| 功率 | MF1®S50 plus S70s S70s S70 |
| 卡的种类 | iso14443型a（mf-1 s50，s70），13.56mhz |
| 榫 | ANSI 5锁存 |
| 检查卡的方式 | 电磁感应 |
| 阅读距离 | 最大5厘米 |
| 卡容量 | 150张卡 |
| 工作温度 | 0-60°CDEG; C ^deg;C |
| 记录容量 | 250条记录（自动上传网络时，将覆盖开始记录满时）。 |
| 工作电流 | < 300mA00mA |
| 待机平均电流 | <82uA82uA |
| 通讯频率 | 2.4G |
| 尺寸 | 305×78×28（mm）倍; 28（mm）times;28 (mm) |
| 通讯电源 | 接收27mA;传输25mA |
| 通信距离（半径）： | 空间最大30米（8厘米天线），50米（12厘米天线）（可通过无线门桥可以缩短通信距离，理论距离无限制） |
我们的酒店锁系统卡类型：
客人卡：接待处完整的方案客人卡通过给予房间的开始和到期日期;客人通过此卡进入客房。
万事达卡：通过管理/家政管理来访问酒店的所有房间
地板卡：干净的工作人员进入一楼的房间。
建筑卡片：由经理持有进入一栋楼的房间
通行卡：一张这张卡已经在一扇门上读取，这个门可以自由访问，而不用读卡
紧急卡：在没有任何卡的情况下进入所有房间，以防紧急情况
| Model NO. | L527W Wireless Online Hotel Lock |
| Type | Electronic |
| Part | Lock |
| Usage | Household Door Locks, Bedroom |
| Color | Silver/Golden |
| Mortise | ANSI 5 Latch, P2s P2l |
| Read Distance | Max 5cm |
| Work Temperature | 0~60°c°cg;c°c |
| Specification | CE Certificate |
| Material | Zinc Alloy |
| Shape | Mortise Door Lock |
| Door Thickness Fits | 35-50mm |
| Lock Material | Stainless Steel |
| Card Type | ISO14443 Type a(Mf-1 S50,S70), 13.56MHz |
| Card Capacity | 150 Cards |
| Record Capacity | 250 Records |
| Trademark | Techcrepower |
| Origin | Shenzhen |
Specifications:
1. 2.4G (Zigbee) wireless frequency
2. RFID MF1 card (ISO1443A)
3. Stainless steel

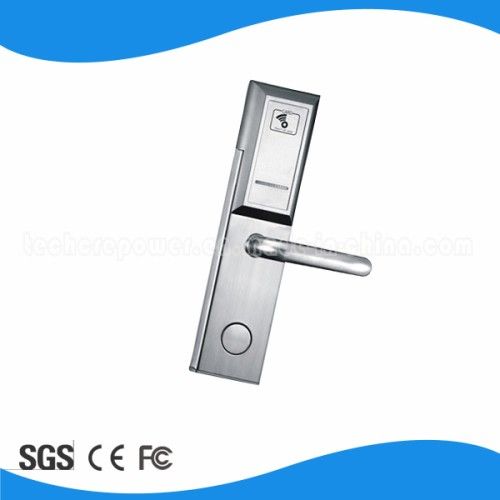

Wireless Online Zigbee Hotel Door Lock
Wireless Hotel Lock is an advanced product which is designed for large hotel and office building, inherits all advantages of networked lock, work out the troublesome of networked lock cabling, making it easier to build up wireless lock network. The basic feature and networked feature coincide with other networked lock ( TCP/IP, RS485): through front desk, manager can download data to wireless lock, remotely control locks, real time monitor the lock status; when open the door PC can instantly receive the unlocking records, etc...
Parameter:
Material | Stainless steel |
Surface Treatment | Stainless steel wire drawing + ABS plastic |
| Color | Silver (Golden Optional) |
| Mortise | ANSI 5 Latch, P2S P2L |
| Power | MF1® S50 plus S70s S70s S70 |
| Card type | ISO14443 TYPE A(MF-1 S50,S70), 13.56MHz |
| Mortise | ANSI 5 latch |
| Way of checking card | Electromagnetic Induction |
| Read distance | MAX 5CM |
| Card Capacity | 150 cards |
| Working Temperature | 0-60°Cdeg;Cdeg;C |
| Record Capacity | 250 records (automatically upload when Networking, will cover the begin records when it's full). |
| Working current | < 300mA00mA |
| Standby average current | <82uA82uA |
| Communication Frequency | 2.4G |
| Dimension | 305×78×28 (mm)times;28 (mm)times;28 (mm) |
| Communication Power | Receive 27mA; transmit 25mA |
| Communication Distance(Radius): | Max 30 m in empty space (8cm aerial ), 50m(12cm aerial ) (Can length the communication distance by the wireless gate bridge, no limit to distance in theory) |
Our Hotel Lock System Card Types:
Guest card: Reception completely program Guest card by giving a begin and expiry date for a room; Guest access room by this card.
Master card: Hold by management / housekeeping to access all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card has been read on one door, this door could be accessed freely, without reading keycard
Emergency card: Enter the all rooms without any card in case emergency
