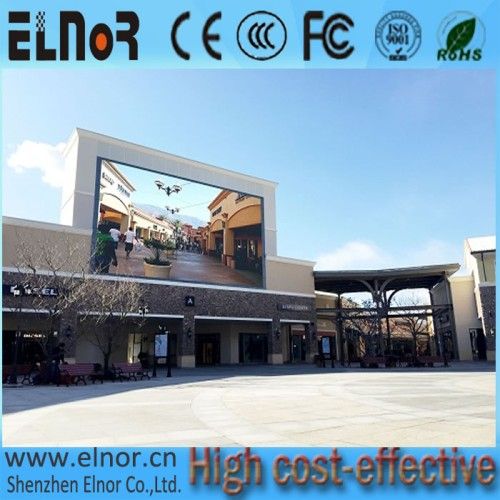

P3.91 SMD Die-Casting Outdoor Full Color LED Display Screen
P3.91 SMD压铸户外全彩LED显示屏
产品描述
规格
产品优势
1.价格优势：市场上最优惠的价格。
2.性能优势：最佳亮度，高刷新率，高一致性，大视角等。
3.质量优势：从材料到成品，从设计到生产，我们控制所有步骤，确保质量和可靠性。
4.服务优势：拥有专业的服务团队24小时服务！
主要特点
定制设计。
2.真正的色彩再现和真实的视频质量。
3.极限系统可靠性。
4.快速设置，易于操作和完全控制。
优点
高亮度，可调。内置功能卡支持，亮度自动调节。
2.包括专业运动软件和硬件的交钥匙解决方案。
通过严格的质量控制系统，无与伦比的产品稳定性。
我们的服务
1.您的询价与我们的产品或定价将在24小时内回复。
2.保护您的销售区域，设计理念和所有您的私人信息。
3.高品质加上合理的价格加上责任售后等于成功和赢。
贸易条款
1.付款：T / T，生产前30％的存款，70％的余额在交付前支付。
运输费用根据您的要求报价。
3.货运港口：深圳，中国大陆。
4. moq：1件。
技术培训
1.我们免费提供技术培训，包括工厂的操作培训和维护培训。
2.我们将派工程师为您提供一些技术支持。
文件和认证
1.我们提供操作手册，软件和测试报告等。
2.我们还可以提供各种认证，如CE，RoHS等。
CAD绘图和固定
1.我们提供CAD图纸如何免费修复显示和一些其他专家建议。
2.如果我们在谈判后预期我们会将我们的工程师送到您的位置。
我们可以做什么
1.我们所有的产品将进行老化测试，我们保证您的产品在发货前没有问题
2.支持您的徽标印在产品上，让您的徽标闪耀任何地方。
3. OEM / ODM订单热烈欢迎。
保修政策
1.所有产品和附件将在出货前进行测试和检查。
2.所有产品有2 - 5年保修。
我们提供最好的售后服务。如果出现任何问题，我们的团队将尽我们的努力。
售后服务：
1.免费维护和升级。
2.投诉响应时间不超过24小时;维护指导和问题解决方案在48小时内提供。
3.客户满意度跟踪报告。
4.免费技术培训支持。
5.全套文件免费，包括安装指南，软件操作手册，易维护手册和控制系统软件光盘等。
6.大型项目的特殊服务，如体育场馆，展览会，广场等。
规格
视觉参数 | |
像素间距： | 3.91mm |
像素密度： | 65410像素/ m2 |
像素配置： | smd2525 |
模块尺寸： | 250×250mm |
柜尺寸： | 500 * 1000mm |
柜重量： | 58公斤/箱 |
柜材质： | 铝 |
性能参数 | |
亮度： | 5000-5200尼特 |
最佳观看距离： | > 4m |
平均功耗： | 280w / m 2 |
最大功耗： | 630w / m 2 |
扫描模式： | 1/16扫描 |
可视角度： | 水平角：120度，垂直角：120度 |
灰度级： | 16位 |
刷新率： | > 1,500Hz |
LED寿命： | > 50,000小时 |
环境参数 | |
输入电压： | 110〜220vac，50 / 60hz |
工作温度： | -20℃〜60℃ |
工作湿度： | 10％〜90％rh |
入口保护： | ip65 |
控制参数 | |
控制系统： | Nova / linsn |
兼容视频接口： | Yc，VGA，DVI，yuv，sdi，RGB，cvbs，HD-sdi |
产品优势
1.价格优势：市场上最优惠的价格。
2.性能优势：最佳亮度，高刷新率，高一致性，大视角等。
3.质量优势：从材料到成品，从设计到生产，我们控制所有步骤，确保质量和可靠性。
4.服务优势：拥有专业的服务团队24小时服务！
主要特点
定制设计。
2.真正的色彩再现和真实的视频质量。
3.极限系统可靠性。
4.快速设置，易于操作和完全控制。
优点
高亮度，可调。内置功能卡支持，亮度自动调节。
2.包括专业运动软件和硬件的交钥匙解决方案。
通过严格的质量控制系统，无与伦比的产品稳定性。
我们的服务
1.您的询价与我们的产品或定价将在24小时内回复。
2.保护您的销售区域，设计理念和所有您的私人信息。
3.高品质加上合理的价格加上责任售后等于成功和赢。
贸易条款
1.付款：T / T，生产前30％的存款，70％的余额在交付前支付。
运输费用根据您的要求报价。
3.货运港口：深圳，中国大陆。
4. moq：1件。
技术培训
1.我们免费提供技术培训，包括工厂的操作培训和维护培训。
2.我们将派工程师为您提供一些技术支持。
文件和认证
1.我们提供操作手册，软件和测试报告等。
2.我们还可以提供各种认证，如CE，RoHS等。
CAD绘图和固定
1.我们提供CAD图纸如何免费修复显示和一些其他专家建议。
2.如果我们在谈判后预期我们会将我们的工程师送到您的位置。
我们可以做什么
1.我们所有的产品将进行老化测试，我们保证您的产品在发货前没有问题
2.支持您的徽标印在产品上，让您的徽标闪耀任何地方。
3. OEM / ODM订单热烈欢迎。
保修政策
1.所有产品和附件将在出货前进行测试和检查。
2.所有产品有2 - 5年保修。
我们提供最好的售后服务。如果出现任何问题，我们的团队将尽我们的努力。
售后服务：
1.免费维护和升级。
2.投诉响应时间不超过24小时;维护指导和问题解决方案在48小时内提供。
3.客户满意度跟踪报告。
4.免费技术培训支持。
5.全套文件免费，包括安装指南，软件操作手册，易维护手册和控制系统软件光盘等。
6.大型项目的特殊服务，如体育场馆，展览会，广场等。
Product Description
Specifications
Product Advantages
1. Price Advantage: Best low price in the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle, etc.
3. Quality advantage: From materials to finished products, from design to production, we control all steps, which ensure the quality and reliability.
4. Service advantage: With a professional service team for 24 hours service!
Main features
1. Customized design.
2. True color reproduction & authentic video quality.
3. Ultimate system reliability.
4. Fast set-up, easy to operate and full control.
Advantages
1. High brightness and be adjustable. Built-in functional card support, brightness automatically adjustment.
2. A turn-key solution including professional sports software and hardware.
3. Unbeatable product stability through strict quality control system.
Our service
1. Your inquiry related to our products or pricing will be replied in 24hrs.
2. Protection of your sales area, ideas of design and all your private information.
3. Top quality plus reasonable price plus responsibility after sales equals success & win.
Trade terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivering.
2. Shipping freight are quoted under your requests.
3. Shipping port: Shenzhen, mainland China.
4. MOQ: 1PCS.
Technology Training
1. We provide the technology trainings for free, including the operation training and maintenance training in the factory.
2. We will send our engineers to provide some technical supports for you.
Documents and Certification
1. We provide the operation manual, software, and test report and so on.
2. We can also provide all kinds of certification such as CE, RoHS and so on.
CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestions.
2. We will send our engineers to your location if we are expected after our negotiation.
What we can do
1. All of our products will be tested for aging and we guarantee there is no problem with your products before shipping to you
2. Support your logo printed on products and let your logo shine anywhere.
3. OEM/ODM orders are warmly welcome.
Warranty policy
1. All products and accessories will be tested and checked before shipping out.
2. All products have 2-5 years warranty.
3. We offer the best after-sale service. If any problem occurs, our team will do our best to work it out.
After-sale service:
1. Free maintenance and upgrade in lifetime.
2. Complaint response time does not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customers satisfaction tracking report.
4. Free technician training supports.
5. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big projects, such as stadiums, exhibitions, squares and so on.
Specifications
Visual parameter | |
Pixel pitch: | 3.91 mm |
Pixel density: | 65410 pixels/m2 |
Pixel configuration: | SMD2525 |
Module dimension: | 250*250 mm |
Cabinets dimension: | 500*1000 mm |
Cabinets weight: | 58 kg/cabinet |
Cabinet material: | Aluminum |
Performance parameter | |
Brightness: | 5000-5200 nits |
Best viewing distance: | ﹥ 4 m |
Average power consumption: | 280 w/m2 |
Max power consumption: | 630 w/m2 |
Scan mode: | 1/16 scan |
Viewing angle: | Horizontal angle: 120 degree, vertical angle: 120 degree |
Gray scale level: | 16 bit |
Refresh rate: | ﹥1, 500Hz |
LED lifetime: | ﹥50, 000 hours |
Environment parameter | |
Input voltage: | 110~220VAC, 50/60Hz |
Operating temperature: | -20°c~60°c |
Operation humidity: | 10%~90%rh |
Ingress protection: | IP65 |
Control parameter | |
Control system: | Nova / linsn |
Compatible video interface: | Yc, VGA, DVI, yuv, sdi, RGB, cvbs, HD-sdi |
Product Advantages
1. Price Advantage: Best low price in the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle, etc.
3. Quality advantage: From materials to finished products, from design to production, we control all steps, which ensure the quality and reliability.
4. Service advantage: With a professional service team for 24 hours service!
Main features
1. Customized design.
2. True color reproduction & authentic video quality.
3. Ultimate system reliability.
4. Fast set-up, easy to operate and full control.
Advantages
1. High brightness and be adjustable. Built-in functional card support, brightness automatically adjustment.
2. A turn-key solution including professional sports software and hardware.
3. Unbeatable product stability through strict quality control system.
Our service
1. Your inquiry related to our products or pricing will be replied in 24hrs.
2. Protection of your sales area, ideas of design and all your private information.
3. Top quality plus reasonable price plus responsibility after sales equals success & win.
Trade terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivering.
2. Shipping freight are quoted under your requests.
3. Shipping port: Shenzhen, mainland China.
4. MOQ: 1PCS.
Technology Training
1. We provide the technology trainings for free, including the operation training and maintenance training in the factory.
2. We will send our engineers to provide some technical supports for you.
Documents and Certification
1. We provide the operation manual, software, and test report and so on.
2. We can also provide all kinds of certification such as CE, RoHS and so on.
CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestions.
2. We will send our engineers to your location if we are expected after our negotiation.
What we can do
1. All of our products will be tested for aging and we guarantee there is no problem with your products before shipping to you
2. Support your logo printed on products and let your logo shine anywhere.
3. OEM/ODM orders are warmly welcome.
Warranty policy
1. All products and accessories will be tested and checked before shipping out.
2. All products have 2-5 years warranty.
3. We offer the best after-sale service. If any problem occurs, our team will do our best to work it out.
After-sale service:
1. Free maintenance and upgrade in lifetime.
2. Complaint response time does not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customers satisfaction tracking report.
4. Free technician training supports.
5. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big projects, such as stadiums, exhibitions, squares and so on.
