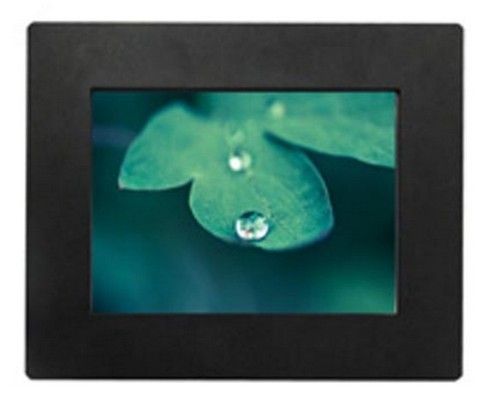

10.4" Industrial All-in-One PC with Intel N2600+Nm10, IP65
10.4'采用Intel N2600 + Nm10，IP65的工业级多功能一体机
议价
加入意向| 型号。 | PC-1042吨 |
| 屏幕尺寸 | 10.4英寸 |
| 安装 | 壁挂式 |
| cpu类型 | 英特尔N2600 + Nm10 |
| 解析度 | 800 X 600 |
| 触摸类型 | 电阻式（4线/ 5线）锯，IR，电容 |
| 规范 | ce，fcc，rohs |
| 类型 | IPC |
| 触摸屏 | 触摸屏 |
| 应用 | 医疗，商业，工业 |
| 饰品 | 工业电源 |
| 逆光 | LED |
| 芯片组 | 英特尔N2600 + Nm10 |
| 起源 | 中国 |
10.4“无风扇面板PCanel PC
1. Intel N2600 + NM10
2.16GB高速固态磁盘（可选）
无风扇，噪音小
4.松下面板，高配置，防振
5.温湿度大
6.打开框架触摸（或带铝制挡板的工业面板PC可选）
7.任何定制服务
8. CE，RoHS，FCC，CCC证书。
9.对于医用面板PC，海洋面板PC，用于信息显示，嵌入工业自动化设备
规范：
1. Intel N2600 + NM10
2.16GB高速固态磁盘（可选）
无风扇，噪音小
4.松下面板，高配置，防振
5.温湿度大
6.打开框架触摸（或带铝制挡板的工业面板PC可选）
7.任何定制服务
8. CE，RoHS，FCC，CCC证书。
9.对于医用面板PC，海洋面板PC，用于信息显示，嵌入工业自动化设备
规范：
| 项目 | 项目 | 参数 | ||||
| 液晶显示器 | 显示类型/大小 | 彩色tft lcd / 10.4“”Prime;″ | ||||
| 活动显示面积（mm） | 211.2毫米（W）×158.4毫米（H）0.4毫米（H）.4mm(H) | |||||
| 显示模式 | 4:3 | |||||
| 最大分辨率 | 800×600mes; 600mes;600 | |||||
| 支持颜色 | 16.7M | |||||
| 亮度（cd / m2）的 | 250cd / m2 | |||||
| 逆光 | LED背光 | |||||
| 对比度 | 500:1 | |||||
| 响应时间 | 5ms的 | |||||
| 像素间距 | 0.264（H）×0.264（V）0.264（v）的.264(V) | |||||
| 可视角度 | 一百十分之一百四十零（H / V） | |||||
| 处理器系统 | 芯片组 | 英特尔N2600 + NM10 | ||||
| 中央处理器 | N2600 | |||||
| 视频 | intel gma3650，640mhz | |||||
| 内部存储器 | DDR3（800/1066 / 1333MHz） 2G（最大4G）（可选） | |||||
| 硬盘 | 16GB高速固态磁盘（可选） | |||||
| HDMI端口 | 1xHDMI端口 | |||||
| COM端口 | Defaultx2 COM（可选） | |||||
| 以太网端口 | 2xRJ45 Realtek 8111E 1000 Mbps /（支持802.11 a / b / g的可选Wi-Fi连接） | |||||
| 音频 | realtek hd alc269q 线路输入/线路输出/扬声器与1W AMP电路 | |||||
| USB端口 | Defaultx4 USB（最大x6） | |||||
| 触摸类型 | 触摸屏类型 | 电阻（4线/ 5线） | ||||
| 可选触摸类型 | SAW，IR，Capacitive | |||||
| TouchScreen界面 | 串行（RS232）或USB | |||||
| 电源 | 输入电压 | dc12v 4a | ||||
| 输出额定值 | <= 18W | |||||
| 温度范围 | 工作温度 | -20〜60ºC;ordm;C | ||||
| 相对湿度 | 20（％rh）〜90（％rh） | |||||
| Model NO. | PC-1042T |
| Screen Size | 10.4 Inch |
| Installation | Wall-Mounted |
| CPU Type | Intel N2600+Nm10 |
| Resolution | 800 X 600 |
| Touch Type | Resistive(4-Wire/5-Wire)Saw, IR, Capacitive |
| Specification | CE, FCC, RoHs |
| Type | IPC |
| Touch Screen | Touch Screen |
| Application | Medical, Commercial, Industrial |
| Accessories | Industrial Power Supply |
| Backlight | LED |
| Chip Set | Intel N2600+Nm10 |
| Origin | China |
10.4' Fanless Panel PCanel PC
1. Intel N2600+NM10
2.16GB high speed solid state disk (optional)
3. Fanless with less noise
4. Sumsang panel, High configuration, vibration proof
5. Wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8. CE, RoHS, FCC, CCC certificates.
9. For medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
Specification:
1. Intel N2600+NM10
2.16GB high speed solid state disk (optional)
3. Fanless with less noise
4. Sumsang panel, High configuration, vibration proof
5. Wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8. CE, RoHS, FCC, CCC certificates.
9. For medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
Specification:
| Item | Project | parameter | ||||
| LCD Display | Display Type/Size | Color TFT LCD/10.4 ″″Prime;″ | ||||
| Active Display Area (mm) | 211.2mm(W)×158.4mm(H).4mm(H).4mm(H) | |||||
| Display Mode | 4:3 | |||||
| Max Resolution | 800×600mes;600mes;600 | |||||
| Support Color | 16.7M | |||||
| Luminance(cd/m2) | 250cd/ m2 | |||||
| Backlight | LED backlight | |||||
| Contrast Ratio | 500:1 | |||||
| Response Time | 5ms | |||||
| Pixel Pitch | 0.264(H)×0.264(V).264(V).264(V) | |||||
| Viewing Angle | 140/110(H/V) | |||||
| Processor System | Chip set | Intel N2600+NM10 | ||||
| CPU | N2600 | |||||
| Video | Intel GMA3650 , 640MHz | |||||
| Internal memory | DDR3 ( 800/1066/1333MHz ) Typ. 2G (Max 4G)(optional) | |||||
| Hard disk | 16GB high speed solid state disk (optional) | |||||
| HDMI ports | 1xHDMI Ports | |||||
| COM ports | Defaultx2 COM(optional) | |||||
| Ethernet ports | 2xRJ45 Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) | |||||
| Audio | Realtek HD ALC269Q Line-In/Line-Out/Speaker out with 1W AMP Circuit | |||||
| USB ports | Defaultx4 USB(Max x6) | |||||
| Touch Type | TouchScreen Type | Resistive(4-wire/5-wire) | ||||
| Optional Touch Type | SAW, IR, Capacitive | |||||
| TouchScreen interface | Serial (RS232) or USB | |||||
| Power supply | Input Voltage | DC12V 4A | ||||
| Output Rating | <= 18W | |||||
| Temperature Range | Operating Temperature | -20 ~ 60ºCordm;Cordm;C | ||||
| Relative Humidity | 20(%RH) ~ 90(%RH) | |||||
