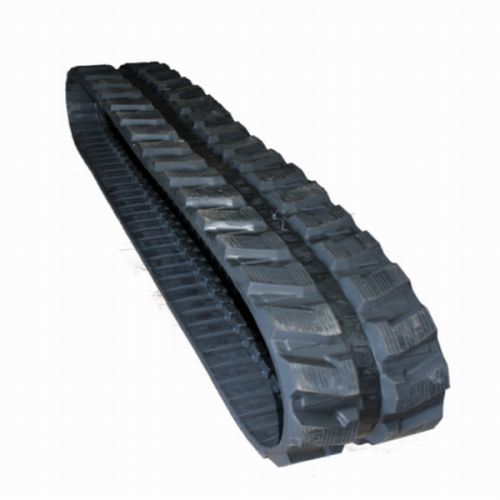

Medium-Size 450*81W*76 Rubber Track for Excavator Machine

Medium-Size 450*81W*76 Rubber Track for Excavator Machine

中型450 * 81W * 76挖掘机橡胶履带

2+
930 USD

加入意向
型号。 450*81W*76
用法 采矿挖掘机
尺寸 中型
条件
沥青 81毫米
颜色 黑色
材料 橡胶和钢铁
商标 无标记或作为买方要求请求equests
规范 450*81W*76
HS编码 8431499900
类型 履带式挖掘机
驱动器类型 内燃机
证明 iso9001:2000
宽度 450毫米
链接 76(可定制)
保证 12个月正常使用
交货时间 15至25天
运输包装 木质托盘
起源 上海
橡胶履带的特点
橡胶履带对道路造成的损伤小于钢轨,在软土地上的车辙少于钢轨
2.拥挤区域的设备受益,橡胶履带噪音低于钢轨
橡胶履带允许机器以比钢轨更高的速度行驶
橡胶履带绝缘机和操作者免受振动,使机器使用寿命缩短,减少操作人员的疲劳
5.装备机器的摩擦轨道的地面压力可能相当低,约为0.14-2.30公斤/平方米,是在湿地和软地形上使用的主要原因。
橡胶跟踪车辆增加的牵引力允许他们拉两倍相同重量的轮式车辆的载荷。
橡胶履带的牵引性能是车轮的两倍,它允许轻型车辆配备橡胶履带,与轮式车辆相同的牵引作业。
使用橡胶履带的通知
1.调整橡胶履带的张力,使机器升高时的高度可变范围为10-20mm。张力下降时重新调整。 (小心,因为如果张力太低,橡胶履带可能脱落)。
2.避免从橡胶履带周围的框架突出,特别是在其内圆周上。 (橡胶履带很容易变形;如果与框架接触,则会发生诸如橡胶被切割的事故)。
旅行时避免尖锐的投影。
4.避免在混凝土道路上转弯太快,因为这样会导致橡胶切割等事故。
5.注意不要油等附着在橡胶履带上。如果是,请立即擦除。
6.长时间储存​​时,请保持室内,避免阳光直射和雨淋。
7.观察链轮的磨损时,请尽快更换
我们也有其他种类和尺寸的橡胶履带,如果你有兴趣,只要给我一个消息,我会很乐意为您服务。
期待收到您的询问。
适用机器 各种挖掘机
材料 橡胶和钢铁
规范 450 * 81N; 450 * 81W;等
安装位置 安装在挖掘机上

参数:
尺寸宽*间距 链接 A B C D F 模式 主导
130*72 29-40 23 64.5 28 28 15 AF1 A2
150*60 32-40 22 64 22.5 24.5 15 AC A2
150*72 29-40 23 64 23 23 15 AC A2
170*60 30-40 19 57 22 22 13 CE A1
180*60 30-40 23.5 64 21 21.5 15 上午 A1
180*72 31-43 25 68 29 29 15 BK A2
180*72K 32-48 20 61 22 19.5 17 BB1 B2
B180*72 31-43 23 66 30 29 15 BB1 B2
H180*72 30-50 23 64 27 26 17 BK A2
190*60 30-40 23.5 64 21 21.5 14 上午 A1
190*72 31-41 21 68 27.5 26.5 15 BF A2
200*72 34-47 23 76 28.5 26.5 18 BB1 A2
200*72K 37-47 21 69 29.5 29 18 BM A2
Y200*72 40-52 24 64 28.5 29.5 12 BK A2
230*48 60-84 24 72 24 25 21 B1
230*48K 60-84 24 66 21 20 19 B2
230*72 42-56 24 82 30 26 18 AF1 A2
230*72K 42-56 20 69 29.5 28 16 BD A2
230*96 30-48 25 68 23.5 25.5 22 B1
230*101 30-36 25 74 22.5 29 19 B1
250*47K 84 23 70 24 20 22 BD B2
250*48.5K 80-88 24 66 21 20 19 CA B2
250*52.5K 72-78 26 81 23 25 25 BA B2
250*52.5 72-78 29 72 23 25 21 B1
250*72 47-57 24 82 30 26 18 AF1 A2
B250*72 34-60 23 64 29 22 10 CI A2
B250 * 72B 34-60 23 78 29 26 16 AB B2
250*96 35-38 25 70 20 19 22 BB1 B2
250*109 35-38 40 89 24.5 14 20 CG B1
260*55.5K 74-80 31 80 21.5 27 24 CA B2
Y260*96 38-41 25 68 23 25.5 22 AB B1
260*109 35-39 30 84 24 29 15 AB B1
E280 * 52.5k 70-88 29 84 27 26 22 B2
280*72 45-64 25 78 29.5 26 22 A2
Y280 * 106K 35-42 30 80 27.5 28 20 AB B2
300*52.5N 72-98 30 82 25 18 20 B1
300*52.5W 72-92 43 96 22 23 22 B1
300*52.5K 70-84 29 84 27 26 22 B2
300 *52.5千瓦 72-92 40 92 25 24 22 C1
E300 * 52.5k 70-88 29 84 27 26 22 B2
KB300 * 52.5 72-92 40 90 24.5 24.5 22 C1
KB300 * 52.5n 72-98 30 82 23 20 25 B1
jd300 * 52.5n 72-98 30 80 23.5 22 22 B1
300*53K 80-96 31 88 25 19.5 21 B2
300*55 70-88 29 86 25.5 27.5 23 B1
300*55.5K 76-82 31 82 22 27 21.5 CA B2
300*71K 72-76 42 106 23 24 40 BD B2
300*72 36-40 23 75 40 34 18 BK A2
BA300 * 72 36-46 26 76 29 27 19 AF1 A2
300*109N 35-42 29 82 27 28 25 B1
300*109W 35-44 38 90 26 29 24 BB1 B1
K300*109 37-41 27 85 23.5 27.5 20 AB B2
300 * 109wk 35-42 40 90 24.5 14 23 CG B1
320*52.5 72-98 30 83 23.5 18 21 B1
320*54 70-84 29 80 23 21 20 AB B1
B320 * 55K 70-88 30 82 25 30 23 B2
Y320 * 106K 39-43 31 80 26 27 24 AB B2
350*52.5 70-92 40 94 22.5 19 30.5 B1
E350 * 52.5k 70-88 29 84 27 26 22 B2
350*54.5K 80-86 40 92 23.5 22.5 23 广告 B2
B350 * 55K 70-88 30 82 25 30 23 B2
350*56 80-86 39 89 25.5 16.5 20.5 公元前 B1
350*75.5K 74 37 98 24.5 25 25 CA C2
350*108 40-46 40 90 24.5 14 25 CG B1
350*109 41-44 40 92 26 20 25 B1
y370 * 107K 39-41 38 94 25.5 28 23.5 AB B2
400*72.5N 70-80 38 100 26 24 25 AF3 B1
400*72.5W 68-92 51 108 26 24 25 B1
Y400 * 72.5k 72-74 28 86 30 24.5 25 AF3 C2
kb400 * 72.5k 68-76 37 94 24 26 23.5 BA B2
400 *72.5千瓦 68-92 46 112 24 23.5 25 B2
400*74 68-76 38 100 25.5 29.5 24 BH2 B1
400*75.5K 74 39 100 25 26 25 CA C2
Y400 * 107K 46 38 89 27 25 25 AB C2
K400*142 36-37 27 87 34 27 29 比照 C2
400*144 36-41 47 98 27 11 30 比照 B1
Y400 * 144K 36-41 35 126 29.5 26 25 B2
450*71 76-88 42.5 115 29.5 17 30 B1
DW450 * 71 76-88 44 114 31 27 25 BD B1
450*73.5 76-84 42 118 31 34 28 CG B1
450*76 80-84 48 122 30.5 31.5 26 B1
450*81N 72-80 42 117 26 24 27 B1
450*81W 72-78 58 140 29 32 30 B1
kb450 * 81.5 72-80 42 110 31.5 27.5 26 BD B1
K450*83.5 72-74 42 112 24.5 25 28 B1
Y450 * 83.5k 72-74 38 113 24 27 26 CA B2
K450*163 38 38 114 27 28 30 AB B2
485*92W 74 62 142 34 33 30 B2
K500*71 72-76 41 106 23 24 42 B2
500*92 72-84 48 130 27 26 29 B1
500*92W 78-84 64 155 32.5 35.5 33 B1
K500*146 35 40 106 26.5 24.5 50 BB1 A2
Model NO. 450*81W*76
Usage Mining Excavator
Size Medium-Sized
Condition New
Pitch 81mm
Color Black
Material Rubber and Steel
Trademark No Marks or As buyer′s requestsrequestsequests
Specification 450*81W*76
HS Code 8431499900
Type Crawler Excavator
Drive Type Internal Combustion Drive
Certification ISO9001: 2000
Width 450mm
Links 76 (Can Be Customized)
Warranty 12months Under Normal Use
Delivery Time 15 to 25 Days
Transport Package Wooden Pallet
Origin Shanghai
The characteristics of rubber tracks
1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue
5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed
We also have other kinds of and sizes of rubber tracks, if you have interest in it, just send me a message and I will be very glad to be at your service.
Looking forward to receiving your enquiry.
Applicable machines various kinds of excavators
Material rubber and steel
Specification 450*81N;450*81W;etc
Installation position Installed on the excavators

Parameters:
Size width*pitch link A B C D F pattern guiding
130*72 29-40 23 64.5 28 28 15 AF1 A2
150*60 32-40 22 64 22.5 24.5 15 AC A2
150*72 29-40 23 64 23 23 15 AC A2
170*60 30-40 19 57 22 22 13 CE A1
180*60 30-40 23.5 64 21 21.5 15 AM A1
180*72 31-43 25 68 29 29 15 BK A2
180*72K 32-48 20 61 22 19.5 17 BB1 B2
B180*72 31-43 23 66 30 29 15 BB1 B2
H180*72 30-50 23 64 27 26 17 BK A2
190*60 30-40 23.5 64 21 21.5 14 AM A1
190*72 31-41 21 68 27.5 26.5 15 BF A2
200*72 34-47 23 76 28.5 26.5 18 BB1 A2
200*72K 37-47 21 69 29.5 29 18 BM A2
Y200*72 40-52 24 64 28.5 29.5 12 BK A2
230*48 60-84 24 72 24 25 21 BI B1
230*48K 60-84 24 66 21 20 19 BI B2
230*72 42-56 24 82 30 26 18 AF1 A2
230*72K 42-56 20 69 29.5 28 16 BD A2
230*96 30-48 25 68 23.5 25.5 22 BE B1
230*101 30-36 25 74 22.5 29 19 BO B1
250*47K 84 23 70 24 20 22 BD B2
250*48.5K 80-88 24 66 21 20 19 CA B2
250*52.5K 72-78 26 81 23 25 25 BA B2
250*52.5 72-78 29 72 23 25 21 BI B1
250*72 47-57 24 82 30 26 18 AF1 A2
B250*72 34-60 23 64 29 22 10 CI A2
B250*72B 34-60 23 78 29 26 16 AB B2
250*96 35-38 25 70 20 19 22 BB1 B2
250*109 35-38 40 89 24.5 14 20 CG B1
260*55.5K 74-80 31 80 21.5 27 24 CA B2
Y260*96 38-41 25 68 23 25.5 22 AB B1
260*109 35-39 30 84 24 29 15 AB B1
E280*52.5K 70-88 29 84 27 26 22 BI B2
280*72 45-64 25 78 29.5 26 22 AL A2
Y280*106K 35-42 30 80 27.5 28 20 AB B2
300*52.5N 72-98 30 82 25 18 20 BI B1
300*52.5W 72-92 43 96 22 23 22 BE B1
300*52.5K 70-84 29 84 27 26 22 BI B2
300*52.5KW 72-92 40 92 25 24 22 BI C1
E300*52.5K 70-88 29 84 27 26 22 BI B2
KB300*52.5 72-92 40 90 24.5 24.5 22 BI C1
KB300*52.5N 72-98 30 82 23 20 25 BI B1
JD300*52.5N 72-98 30 80 23.5 22 22 BI B1
300*53K 80-96 31 88 25 19.5 21 BI B2
300*55 70-88 29 86 25.5 27.5 23 BI B1
300*55.5K 76-82 31 82 22 27 21.5 CA B2
300*71K 72-76 42 106 23 24 40 BD B2
300*72 36-40 23 75 40 34 18 BK A2
BA300*72 36-46 26 76 29 27 19 AF1 A2
300*109N 35-42 29 82 27 28 25 BE B1
300*109W 35-44 38 90 26 29 24 BB1 B1
K300*109 37-41 27 85 23.5 27.5 20 AB B2
300*109WK 35-42 40 90 24.5 14 23 CG B1
320*52.5 72-98 30 83 23.5 18 21 BI B1
320*54 70-84 29 80 23 21 20 AB B1
B320*55K 70-88 30 82 25 30 23 BE B2
Y320*106K 39-43 31 80 26 27 24 AB B2
350*52.5 70-92 40 94 22.5 19 30.5 BE B1
E350*52.5K 70-88 29 84 27 26 22 BI B2
350*54.5K 80-86 40 92 23.5 22.5 23 AD B2
B350*55K 70-88 30 82 25 30 23 BE B2
350*56 80-86 39 89 25.5 16.5 20.5 BC B1
350*75.5K 74 37 98 24.5 25 25 CA C2
350*108 40-46 40 90 24.5 14 25 CG B1
350*109 41-44 40 92 26 20 25 BO B1
Y370*107K 39-41 38 94 25.5 28 23.5 AB B2
400*72.5N 70-80 38 100 26 24 25 AF3 B1
400*72.5W 68-92 51 108 26 24 25 BI B1
Y400*72.5K 72-74 28 86 30 24.5 25 AF3 C2
KB400*72.5K 68-76 37 94 24 26 23.5 BA B2
400*72.5KW 68-92 46 112 24 23.5 25 BI B2
400*74 68-76 38 100 25.5 29.5 24 BH2 B1
400*75.5K 74 39 100 25 26 25 CA C2
Y400*107K 46 38 89 27 25 25 AB C2
K400*142 36-37 27 87 34 27 29 CF C2
400*144 36-41 47 98 27 11 30 CF B1
Y400*144K 36-41 35 126 29.5 26 25 BE B2
450*71 76-88 42.5 115 29.5 17 30 BE B1
DW450*71 76-88 44 114 31 27 25 BD B1
450*73.5 76-84 42 118 31 34 28 CG B1
450*76 80-84 48 122 30.5 31.5 26 BI B1
450*81N 72-80 42 117 26 24 27 BE B1
450*81W 72-78 58 140 29 32 30 BI B1
KB450*81.5 72-80 42 110 31.5 27.5 26 BD B1
K450*83.5 72-74 42 112 24.5 25 28 BI B1
Y450*83.5K 72-74 38 113 24 27 26 CA B2
K450*163 38 38 114 27 28 30 AB B2
485*92W 74 62 142 34 33 30 BE B2
K500*71 72-76 41 106 23 24 42 BE B2
500*92 72-84 48 130 27 26 29 BI B1
500*92W 78-84 64 155 32.5 35.5 33 BI B1
K500*146 35 40 106 26.5 24.5 50 BB1 A2
