Rubber Track Systemycl-130 for Stairs Wheelschairs
橡胶履带Systemycl-130用于楼梯轮椅
| 型号。 | YCL-130 |
| 应用 | 橡胶履带系统 |
| 条件 | 新 |
| 型号 | YCL-130 |
| 宽度 | 130毫米 |
| 净重 | 18.65公斤 |
| 接地长度 | 550毫米 |
| 保证 | 正常使用12个月 |
| 运输包装 | 裸包装或木托盘 |
| 起源 | 上海，中国 |
| 类型 | 履带 |
| 证明 | iso9001：2000 |
| 发源地 | 中国上海（大陆） |
| 长度 | 727毫米 |
| 高度 | 305毫米 |
| 装载熊 | 300公斤 |
| 交货时间 | 15-20天 |
| 商标 | PY |
| 规范 | YCL-130 |
| HS编码 | 8708996000 |
产品信息：
橡胶履带系统：YCL-130
产品规格
轻机械重量
小摇晃
低噪音
大牵引力
5.接地压力小。
SUV橡胶履带系统规格：
连续橡胶履带
常规型或可互换型橡胶履带
保修：一般使用一年保修
橡胶履带系统
它很容易安装。
2.适合各种苛刻的使用
橡胶履带系统的部件：
橡胶履带系统主要由橡胶履带，三角架，驱动轮，
支撑轮，导轮以及连接电镀装置
它是一个集成的机械装配，可以使您的汽车在所有地形上运行良好
雪，泥，沙，松散的表面，甚至丘陵地形...
我们还可以根据您的车轮螺栓图案设计安装孔，以便您可以
直接安装在您的汽车上而不使用复杂的工具...
橡胶履带系统：YCL-130
产品规格
轻机械重量
小摇晃
低噪音
大牵引力
5.接地压力小。
SUV橡胶履带系统规格：
连续橡胶履带
常规型或可互换型橡胶履带
保修：一般使用一年保修
橡胶履带系统
它很容易安装。
2.适合各种苛刻的使用
橡胶履带系统的部件：
橡胶履带系统主要由橡胶履带，三角架，驱动轮，
支撑轮，导轮以及连接电镀装置
它是一个集成的机械装配，可以使您的汽车在所有地形上运行良好
雪，泥，沙，松散的表面，甚至丘陵地形...
我们还可以根据您的车轮螺栓图案设计安装孔，以便您可以
直接安装在您的汽车上而不使用复杂的工具...
| 模型： | YCL-130 | 长度： | 727毫米 | |
| 包装： | 简单纸箱/铁架 | 宽度： | 305毫米 | |
| 高度： | 550毫米 | |||
| 净重： | 18.65公斤 | |||
| 接地长度： | 550毫米 | 装载轴承： | 300公斤 | |
| 链轮中心距离地面： | 155毫米 | |||
| 适用车型： | 小型车/轮椅 | |||
| Model NO. | YCL-130 |
| Application | Rubber Track System |
| Condition | New |
| Model No | Ycl-130 |
| Width | 130mm |
| Net Weight | 18.65kg |
| Ground Contact Length | 550mm |
| Guarantee | 12 Months Under Normal Use |
| Transport Package | Bare Packing or Wooden Pallets |
| Origin | Shanghai, China |
| Type | Crawler |
| Certification | ISO9001: 2000 |
| Place of Origin | Shanghai, China (Mainland) |
| Length | 727mm |
| Height | 305mm |
| Loading Bear | 300kg |
| Delivery Time | 15-20 Days |
| Trademark | PY |
| Specification | YCL-130 |
| HS Code | 8708996000 |
Product Information:
Rubber track system : YCL-130
Specifications
1. Light mechanical weight
2. Small shaking
3. Low noise
4. Large traction
5. Little grounding pressure.
SUV rubber track system Specifications:
Continuous rubber track
Conventional type or interchangeable type rubber track
Warranty: Guarantee one year under normal use

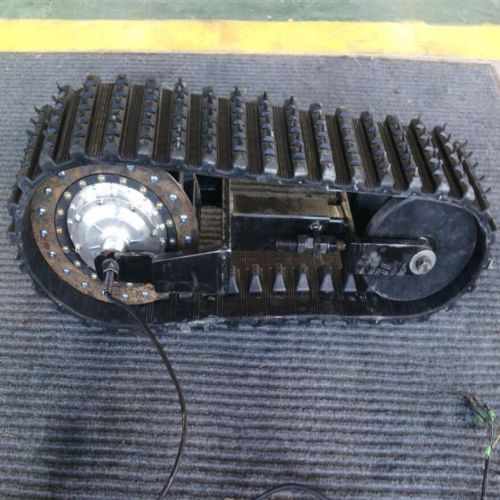

Rubber track system
1. It's easy to install.
2. It's suitable for a variety of harsh envinronment
Parts of the rubber track system:
The rubber track system is mainly composed of the rubber track, triangular frame, driving wheels,
Supporting wheels, guide pulley as well as connecting plated device...
It's an integrated mechanical assembly which can make your car run well at all terrain whatever is
Snow, mud, sand, loose surface, even hill terrain...
We can also design the mounting hole according to your wheel bolt pattern so that you can
Install it on your car directly without using complicated tools...
Rubber track system : YCL-130
Specifications
1. Light mechanical weight
2. Small shaking
3. Low noise
4. Large traction
5. Little grounding pressure.
SUV rubber track system Specifications:
Continuous rubber track
Conventional type or interchangeable type rubber track
Warranty: Guarantee one year under normal use
Rubber track system
1. It's easy to install.
2. It's suitable for a variety of harsh envinronment
Parts of the rubber track system:
The rubber track system is mainly composed of the rubber track, triangular frame, driving wheels,
Supporting wheels, guide pulley as well as connecting plated device...
It's an integrated mechanical assembly which can make your car run well at all terrain whatever is
Snow, mud, sand, loose surface, even hill terrain...
We can also design the mounting hole according to your wheel bolt pattern so that you can
Install it on your car directly without using complicated tools...
| Model: | YCL-130 | Length: | 727mm | |
| Packing: | Simple carton box/Iron Frame | Width: | 305mm | |
| Height: | 550mm | |||
| Net Weight: | 18.65KG | |||
| Ground contact length: | 550mm | Loading bearing: | 300Kg | |
| Sprocket Center Distance to the Ground: | 155mm | |||
| Applicable Type of Vehicles: | Small vehicles/wheelchairs | |||
