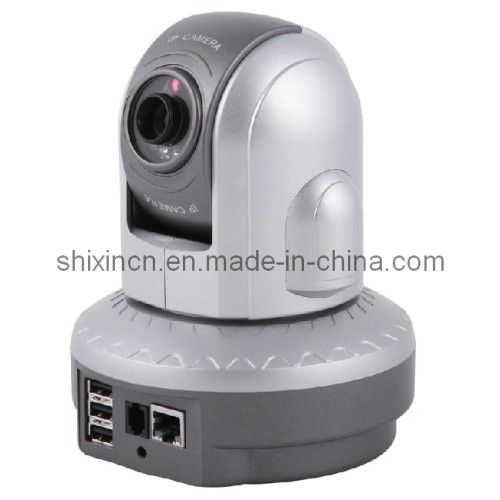

Wireless WiFi PT Indoor Dome IP Camera (IP-06W)
无线WiFi PT室内球机IP摄像机（IP-06W）
议价
加入意向| 型号。 | IP-06瓦特 |
| 样式 | 圆顶相机 |
| 传感器 | CMOS |
| 类 | 手动对焦镜头 |
| 特征 | 迷你尺寸，自动BLC |
| 传感器尺寸 | 1/3英寸 |
| 无线 | 红外夜版 |
| 商标 | 世新 |
| 起源 | 中国深圳 |
| 技术 | 无线 |
| 类型 | 网络摄像机 |
| 水平分辨率 | 420TVL |
| 证明 | ce，fcc，rohs |
| 有效距离 | 0-9m |
| 遥控 | 带遥控器 |
| 早晚 | 云台摄像机 |
| 运输包装 | 正常 |
| HS编码 | 8529904100 |
*平底锅/倾斜，日/夜12IR（10M）/ 6mm /板
* Pan，+/-150Σ（0°〜360°）倾斜：+/-30Σ（0°〜180°）和; （0°〜180°）0° )sum; (0° ~ 180° )
*最小照度：2.5Lux@F1.4
* MJPEG压缩
* 1/4'cmos传感器vga（640x480），cif（352x288）2x288）
*无线网络：支持无线WiFi
*红外PT摄像机
* Pan，+/-150Σ（0°〜360°）倾斜：+/-30Σ（0°〜180°）和; （0°〜180°）0° )sum; (0° ~ 180° )
*最小照度：2.5Lux@F1.4
* MJPEG压缩
* 1/4'cmos传感器vga（640x480），cif（352x288）2x288）
*无线网络：支持无线WiFi
*红外PT摄像机
| 功能 | 网络监控远程/本地录像，屏幕截图 | ||
| 安全 | 不同的访问级别和密码保护，IP地址自我管理 | ||
| 报警 | RS232接口，支持无线烟雾探测器，无线安全探测器 | ||
| 运动检测并发送电子邮件报警图片 | |||
| 摇摄/倾斜和镜头 | 平底锅，+/-150Σ（0°〜320°）〜320°）g; ) ~ 320° ) 倾斜：+/-30Σ（0°〜180°）〜180°）g; ) ~ 180° ) | 6mm固定镜头 镜片角度：60°deg;° | |
| 红外和距离 | 12个红外灯 | 10M | |
| 最小照度 | 5.0 Lux @ F2.0 | ||
| 信号系统 | pal / ntsc系统 | ||
| 网络 | 协议 | tcp / ip，http，arp，rarp，icmp，dhcp，fip，smtp，pppoe | |
| 网络端口 | RJ45 10 / 100m以太网LAN | ||
| 无线协议 | 的IEEE802.11b / g的 | ||
| TX率 | 最大可以是54M | ||
| TX距离 | 室内可以50m，户外可以100m（取决于环境） | ||
| 射频功率 | 18-19dBM（11g），14-18dBM（11g） | ||
| 浏览器 | Windows2000，XP或High版本，Netscape 4.5或高版本 | ||
| 视频 | 压缩格式 | MJPEG压缩 | |
| 帧速率 | 25fps的 | ||
| 解析度 | 1/3“CMOS传感器380k像素VGA（640x480），CIF（352x288）2x288） | ||
| 输入 | 1-2Channles | ||
| 出来 | 1-2Channles | ||
| 镜头座 | C / CS安装镜头 | ||
| 白平衡/ BLC | 汽车 | ||
| 记录 | 支持USB闪存盘（最高2GB），支持USB硬盘（80GB） | ||
| 延期 | 支持usb中心 | ||
| 电源 | dc 5.3v / 1a，100〜240v | ||
| 广泛的应用 | 适用于家庭，学校，社区等 | ||
| Model NO. | IP-06W |
| Style | Dome Camera |
| Sensor | CMOS |
| Kind | Manual Focus Lens |
| Feature | Mini Size, Auto BLC |
| Sensor Size | 1/3 inch |
| Wireless | IR Night Version |
| Trademark | shixin |
| Origin | Shenzhen, China |
| Technology | Wireless |
| Type | IP Camera |
| Horizontal Resolution | 420tvl |
| Certification | CE, FCC, RoHS |
| Effective Distance | 0-9m |
| Remote Control | With Remote Control |
| Day/Night | PTZ Camera |
| Transport Package | Normal |
| HS Code | 8529904100 |
* Pan/Tilt, Day/Night 12IR(10M)/6mm/board
* Pan, +/-150∑ (0° ~ 360° ) Tilt: +/-30∑ (0° ~ 180° )sum; (0° ~ 180° )0° )sum; (0° ~ 180° )
* Minimum illumination: 2.5Lux@F1.4
* MJPEG compression
* 1/4' CMOS sensor VGA(640x480), CIF(352x288)2x288)
* Wireless network: Wireless WiFi supported
* IR PT camera
* Pan, +/-150∑ (0° ~ 360° ) Tilt: +/-30∑ (0° ~ 180° )sum; (0° ~ 180° )0° )sum; (0° ~ 180° )
* Minimum illumination: 2.5Lux@F1.4
* MJPEG compression
* 1/4' CMOS sensor VGA(640x480), CIF(352x288)2x288)
* Wireless network: Wireless WiFi supported
* IR PT camera
| Function | Network Surveillance long-distance/local video recording, screen shot | ||
| Security | different access levels and password protection, IP-Address self-management | ||
| Alarm | RS232 interface, support wireless smoke detector, wireless security detector | ||
| Motion detect and send alarm pictures to email | |||
| Pan/Tilt and lens | Pan, +/-150∑ (0° ~ 320° ) ~ 320° )g; ) ~ 320° ) Tilt: +/-30∑ (0° ~ 180° ) ~ 180° )g; ) ~ 180° ) | 6mm Fixed lens Lens Angle : 60°°deg;° | |
| IR and distance | 12pcs infrared lights | 10M | |
| Minimum illumination | 5.0 Lux @ F2.0 | ||
| Signal system | PAL/NTSC SYSTEM | ||
| network | Protocol | TCP/IP, HTTP, ARP, RARP, ICMP, DHCP, FIP, SMTP, PPPOE | |
| Network port | RJ45 10/100m Ethernet LAN | ||
| Wireless Protocol | IEEE802.11b/g | ||
| TX Rate | maximum can be 54M | ||
| TX Distance | Indoor can be 50m, while outdoor can be 100m (It depends on the environment. ) | ||
| RF Power | 18-19dBM (11g), 14-18dBM (11g) | ||
| Browser | Windows2000, XP or High version , Netscape 4.5 or high version | ||
| Video | Compression format | MJPEG compression | |
| Frame rate | 25fps | ||
| Resolution | 1/3' CMOS sensor 380k pixel VGA(640x480) , CIF(352x288)2x288) | ||
| Input | 1-2Channles | ||
| Out put | 1-2Channles | ||
| Lens mount | C/CS Mount lens | ||
| Whit balance/BLC | Auto | ||
| Record | Support USB Flash disk record( up to 2GB), Support USB Hard Disk(80GB) | ||
| Extension | Support USB HUB | ||
| Power supply | DC 5.3V/1A, 100~240V | ||
| Wide application | Applicable for home , school , community and so on | ||
