| Product Number | KP201 |

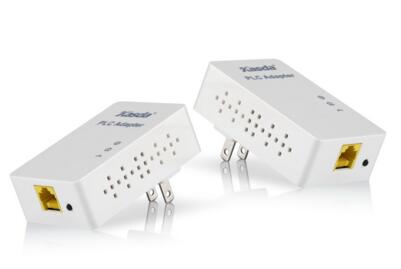

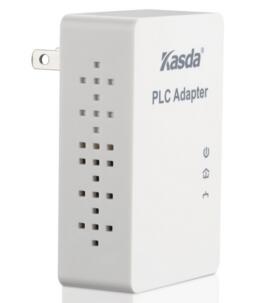

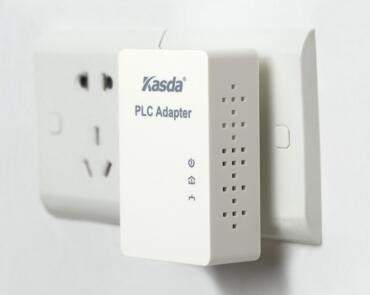

| Product Picture |
|
| Number of Ethernet Ports | One Fast Ethernet Port |
Number of Buttons
| one Pair button (for bulding a secure powerline network system)
|
| Key Features | HomePlug AV standard compliant, high-speed data transfer rate of up to 200Mbps |
| One Fast Ethernet Port for LAN or WAN |
| Miniature design, smaller than most powerline adapters |
| Plug and Play, no need any manual setup |
| Standards: HomePlug AV, IEEE802.3, IEEE802.3U |
| LED Indicators: PWR, PLC, ETH |
| Power Consumption: ﹤2.5W |
| Range: 300m for Indoor Environment |
| Modulation Technology: OFDM |
| IEEE 802.3 MII and RMII Fast Ethernet interfaces, 100 Mbps Ethernet, operating in MAC or PHY mode. |
| Support IGMP managed multicast IP transmission, optimizes IPTV streaming |
| Processor | Broadcom BCM60321
|
Memory
| 1MB
|
| Physical Specifications | Dimensions: 3.35*2.17*2.36 in(85*55*60 mm) |
| Weight:0.22 lbs(100 g) |
| Product Diagram |
|
|
|
|
|
|
|
| Package Contents | Powerline Adapter (Starter Kit) |
| 2 x Ethernet Cables |
| Installation Manual |
| Standards | HomePlug AV, IEEE 802.3, IEEE802.3u |
| IEEE 802.3 MII and RMII Fast Ethernet interfaces, 100 Mbps Ethernet, operating in MAC or PHY mode. |
warranty
| 2 year warranty |
