| Product Number | KW5513 |

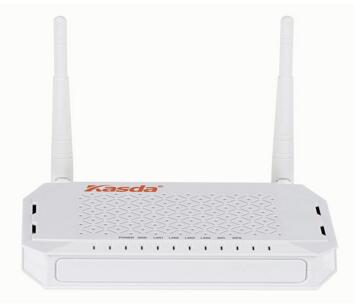

| Product Picture | ![]() |
| Wireless | Wireless Standards: IEEE 802.11b/g/n 2.4GHz |
| Frequency: 2.4GHz | |
| Wireless Speed: 300Mbps | |
| Transmit Power: ﹤(20dBm) | |
| Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK/TKIP/AES | |
Wireless Features: Multi-SSID, WDS, Access Control List | |
| Hardware | Physical Interface: 4*10/100 Mbps LAN port & 1*10/100 Mbps WAN port |
| Buttons: ON/OFF, Reset, WPS | |
| LED Indicators: Power, WAN, LAN1/2/3/4, 2.4G WiFi, WPS | |
| Antenna: 2 External 3dBi Antennas | |
| Power: Input: 100-240V AC, 50Hz; Output: 5V/1A | |
| Processor: RTL8676SVA1+RTL8192ER | |
| Memory: 2MB Flash, 8MB RAM | |
| Dimension: 180(H)*115(W)*26(T)mm | |
| Weight: 0.55 lbs(250 g) | |
| Software | WAN Connection Types: DHCP Client/Static IP/PPPoE, PPTP/ L2TP/ Bridge |
PPP Auto Reconnect and Configurable Timeouts, PPP Auto Reconnect on WAN Access/PPP on Demand, Static Route, Dynamic RIPv1, RIPv2 support | |
| MTU Adjustment | |
| DNS Relay Agent/DDNS Support | |
| Network Address Translation (NAT) | |
| Port Forwarding, DMZ Support, UPnP(Universal Plug and Play) | |
| NAT Application Level Gateway for popular applications | |
| IGMP Snooping v1/2 and IGMP Multicast | |
| DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay | |
| Parental Control | |
| PAP/CHAP for PPP mode | |
| NAT for Firewall | |
| SPI Firewall | |
| 2 Level (User/Admin) Authentication to Router | |
| IP and MAC Filtering | |
| Quality of Service: Priority Queuing /Classification Rules /802.1p, WMM | |
| VPN Pass-through: IPSec/PPTP/L2TP Pass-through | |
| Dynamic DNS: DynDns, NO-IP | |
Management Support: Web Based GUI,FTP /HTTP /Telnet, Command Line Interface, Diagnostic Test, Firmware Upgrade-able, Supports Remote Access Control | |
| Operating System | Windows 8/7/vista/XP, Mac OS, Android, iOS |
| Environment | Operating Temperature:-10°C~55°C(14~131℉) Storage Temperature: -30°C~60°C(-22~140℉) Operating Humidity: 5%~95% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package Content | Wireless Router KW5513; Power Adapter; RJ45 Cable; Quick Setup Guide |

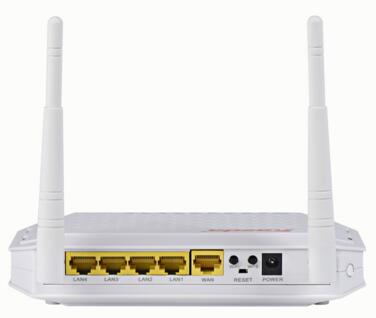

| Product Diagram | ![]() |
| Warranty | 1 year warranty |
