Product Number

KW5813

WiFi Technology

Wireless 802.11b/g/n AP integrated

WiFi Performance

300Mbps

WiFi Range

Medium/Large homes

WiFi Band

2.4 GHz

Number of Ethernet Ports

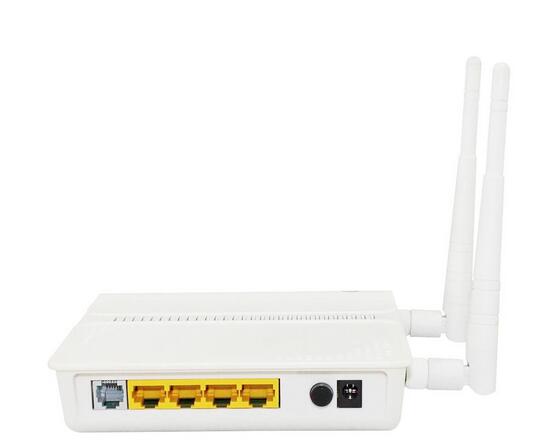

Four 10/100 Ethernet ports (one of which can be configured as Ethernet WAN)

Number of USB Ports

One USB port (for printer or USB storage device)

Key Features

Support ADSL,ADSL2,ADSL2+ standards

Security

Wireless 802.11b/g/n AP integrated

Wireless link rate up to 300Mbps

External 2T2R Detachable Antennas

1 USB2.0 host Port

Support IPv4/IPv6 Dual Stack

Support Ethernet Router working mode

Easy Installation Wizard

Integrated With TR-069 Client

Easy wireless security encryption at a push of the WPS button

PPPOE,PPPOA,IPOE,IPOA,Bridge service type

PAP/CHAP Authentication for PPP mode

Processor

NAT for basic Firewall support

Security IEEE 802.11x Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK

Support Date & Time parent control

State Packet Inspection (SPI) for Firewall with denial-of-service (DoS) protection

ALG (Application-level gateway) for NAT/PAT support

SYN Flooding

IP Filtering

MAC Filtering

Parental control

Broadcom BCM6318

Memory

8 MB flash and 64 MB RAM

Physical Specifications

Dimensions: 7.48*5.51*1.38 in(190*140*35 mm)

Weight: 0.88 lbs(400 g)

Package Contents

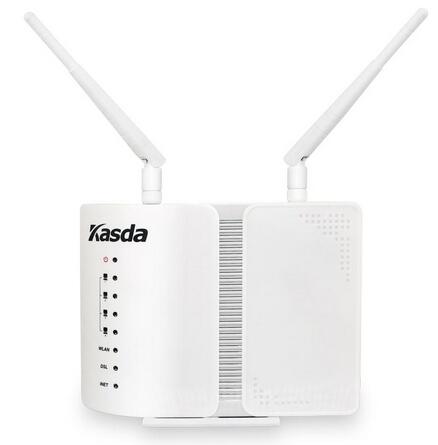

KW5813 Wireless ADSL Modem Router

Standards

2 x Detachable antennas

Telephone Line

Ethernet cable

External Splitter

Power adapter

Installation Manual

IEEE802.3, 802.3u

System Requirements

IEEE® 802.11 b/g/n 2.4GHz

ITU-T G.992.1(Gdmt), G.992.2 (Glite), G.992.3(Gdmtbis), G.992.4 (Glitebis), G.992.5 (ADSL2+)

PPPoE, PPPoA, IPoE, IPoA, Bridge

Microsoft® Windows 7, 8, 8.1, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux®

Warranty

Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher

2 years warranty
