main body |
|---|
| Brands | Huawei (HUAWEI) |
| model | WS318 |
| type of facility | Wireless Router |
Radio parameters |
|---|
| Wireless speed | 300Mbps |
| Wireless spectrum | 2.4GHz |
| Wireless Protocol | Support 802.11n, 802.11b / g compatible |
| Wireless Security | Wireless MAC address filtering, wireless security function switch, 64/128 bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK / WPS2-PSK encryption mechanism; WPS button to establish a secure wireless connection |
| antenna | Two external 5dBi antennas, MIMO support |
Features |
|---|
| Basic functions | Routing; IP bandwidth control function; WDS wireless bridging function; parental controls |
| Security Settings | Supports SPI, ACL, DMZ; built-in firewall; IP and MAC address binding against ARP attacks; IP address filtering; MAC address filtering; DoS attack prevention |
Maintenance Management |
|---|
| maintain | Support for device management via Huawei routing companion APP software; support for device management via the Web configuration interface |
Hardware Specifications |
|---|

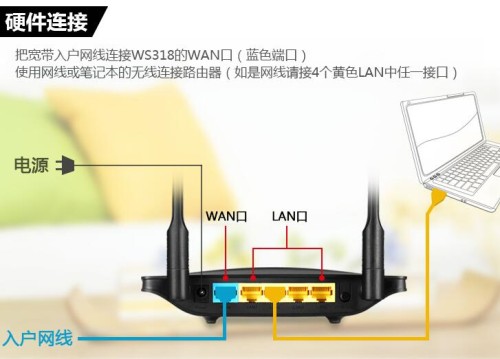

| interface | A 10 / 100Mbps Ethernet RJ-45 uplink interfaces; four 10 / 100Mbps Ethernet RJ-45 downlink interfaces |
| Push button | WPS / Reset button |
| Lights | Power, Internet, WLAN, WPS, LAN |
| size | Bare metal Size: 160mm × 110mm × 32mm (without antenna) |
| weight | About 170g (bare metal weight) |
| Power Specifications | 12V DC, 0.5A |
| Total power consumption | ﹤6W |
Attributes |
|---|
| name of software | Huawei Terminal home router management software V1.0 |
other |
|---|
| Environment | Operating temperature: 0 ° C to 40 ° C; Relative humidity: 5% to 95%, non-condensing |
