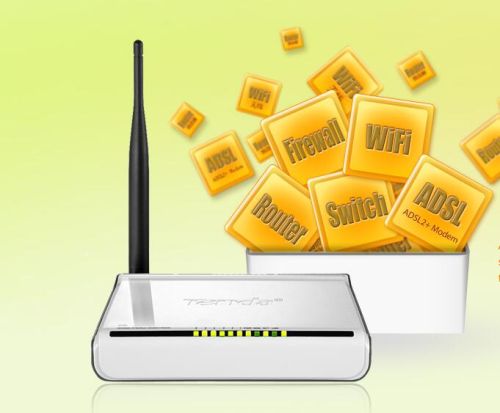

W150D is an IEEE802.11n-compliant device that combines the function of high speed ADSL Modem, wireless router and four-Port switch. Compliant with IEEE802.11n standard, wireless speed up to 150Mbps, W150D combines the function of ADSL2+modem, wireless router and four-port switch in one device. Wireless speed is 3 times faster and wireless range is 3 times further than 802.11g devices. It also supports the latest ADSL2+ standards to provide higher performance (up to 24Mbps downstream and 1Mbps upstream) and longer reach from your Internet Service Provider' s (Digital Subscriber Line Access Multiplexer (DSLAM). With its intelligent QoS, W150D can prioritize Internet traffic to bandwidth sensitive applications like VoIP and online gaming. To prevent unauthorized wireless access into your network, the device is equipped with advanced encryptions including WPA, WPA2 and WPS. It is a total solution to establish a wireless network for share by multiple users throughout your home or office.

﹥﹥ Wireless N technology, data transfer rates of up to 150Mbps
﹥﹥ All-in-One device that combines ADSL2+ Modem, NAT router, switch, and AP
﹥﹥ Lightning Protection design, up to 6000V

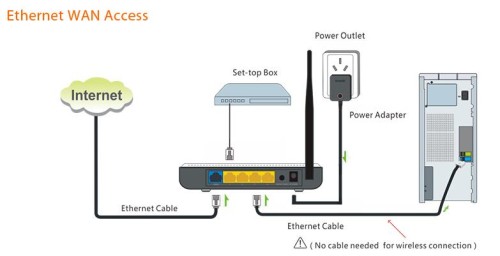

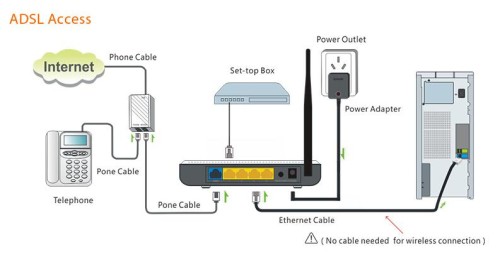

﹥﹥ Supports ADSL and LAN dual internet connection type

Standard & Protocol: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b;IEEE 802.3, IEEE 802.3u;ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5

Interface: 1* RJ11 port;3*10/100Mbps auto-negotiation (Auto MDI/MDIX) LAN ports;1*10/100Mbps auto-negotiation WAN/LAN Interchangeable port (Auto MDI/MDIX)

Antenna: 1* external omni-directional antenna

Button: 1* Power;1* Reset

Power: Input: 100-240V 50/60MHz;Output: 9V DC-1A

Dimension: 171.95*118.97*31mm

LED: POWER, ADSL, WLAN, LAN, SYS, WAN

Transmission Media: Cat.5;Cat.5e;Cat.6;Telephone Line

Internet Connection Type: Dynamic IP;Static IP;PPPoE;PPPoA;IPoA
