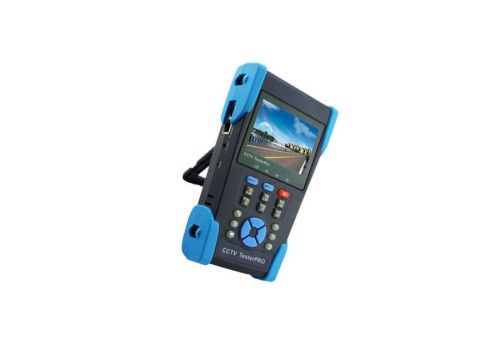

add to cartModel NO. | HVT-2622 |
Size | 3.5 Inch |
Screen Size | 3.5 Inch |
Aspect ratio | 3.5 Inch |
Optimum Resolution | 480*320 |
Response Time | 3ms |
Interface Type | HDMI |
Specification | CE, FCC |
HS Code | 9031809090 |
Type | TFT |
Power | 5V 2A |
Application | Big-Screen Project, Indoor, Outdoor, Mobile Phone, Surveillance |
Feature | LED Backlight Display, Support TV Function |
Widescreen | Not Widescreen |
3D | Not 3D |
Trademark | EYEVISON |
Origin | Shenzhen, China |
Model | HVT-2622/2622T(VI generation) | ||
Video Test | |||
Signal mode | NTSC/PAL (Auto adapt) | ||
Display | 3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution | ||
LCD adjustment | Brightness, Contrast, Saturation adjustable | ||
Video IN/OUT | 1 channel BNC Input & 1 channel Outpututpututput | ||
Video Output Mode | 1.0 VP-p | ||
Video Level test | |||
Level test | Video signals measured in IRE or mV | ||
PTZ controller | |||
Communication | Support RS232 and RS485 | ||
PTZ Protocol | Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. | ||
Baud Rate | 600,1200,2400,4800,9600,19200,57600,115200bps | ||
Video Signal Generation | |||
Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) | ||
UTP Cable tester | |||
UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box. | ||
DC12V 1A power output | |||
DC12V power output | Output DC12V1A power for camera | ||
Audio input test | |||
Audio input test | test the pickup and other audio equipments on the front-end | ||
RS485 data analysis | |||
Data Monitor | Captures and analyzes the command data from controlling device | ||
10x Zoom Image | |||
Image10x zoom | 10x zoom image display and video out | ||
Photograph, Video record, Record playback | |||
Photograph | snapshot and save the current image as JPG file | ||
Video record | Video record and storage the file | ||
Record playback | To view the storage file in the SD card | ||
Port flicker | |||
Port flicker | Find the connected POE port quickly. | ||
IP address scan, Link monitor, PING test | |||
IP address scan | Find out the connected IP camera or the other network equipment IP address quickly. | ||
Link monitor | Check the IP address whether is occupied | ||
PING testing | Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address | ||
Cable scan(Wire tracker) | |||
Cable scan | Search the cable by the audio signal | ||
Poe tester | |||
Poe tester | Display the power supply voltage and cable connection states | ||
Video level meter | ( Only for T model ) | ||
PEAK video signal level, SYNC signal level, COLOR BURST chrome level measurement | |||
TDR cable tester ( Only for T model ) | |||
TDR cable tester | Accurately measure BNC cable, network cable, control cable break-point and short-circuits location. | ||
Visual fault locator | |||
Visual fault locator | Test fiber's bending and breakage ( SM and MM fiber) | ||
POWER | |||
Power Adapter | DC 5V(1.5A) | ||
Battery | Built-in 3.7V Lithium polymer battery ,3000mAh | ||
Rechargeable | After charging 3-4 hour, working time lasts 11 hours | ||
Low Consumption | Energy saving technology, the battery icon real-time display | ||
Parameter | |||
Operation setting | English/Chinese and other languages OSD menu | ||
Auto off | 5-60 (mins) | ||
Key tone | On/Off | ||
General | |||
Working Temperature | -10ºC ~+50ºC~+50ºCrdm;C~+50ºC | ||
Working Humidity | 30%~ 90% | ||
Dimension/Weight | 194mm x 112mm x 48mm / 540g | ||
