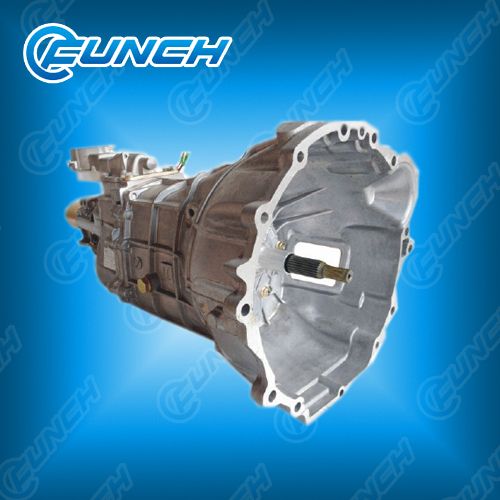

gear box D-Max Parts Tfr55 Diesel Engine Automotive Transmission
· Type: Differentialferentialerential
· OE NO.: D-MAX TFR55AX TFR55AX TFR55
· Car Make: D-MAX TFR55AX TFR55AX TFR55
· Size: standardstandardstandard
· Place of Origin: China (Mainland)ainland)ainland)
· Brand Name: VISTANA VISTANA VISTANA
· Model Number: TFR55r: TFR55r: TFR55
· Warranty: 6 Months6 Months6 Months
· material: steell: steell: steel
· color: silver: silver: silver
· Style: standardstandardstandard
· Models: D-MAX TFR55 diesel engine automotive transmissionsmissionsmission
· Quality: very goodery goodery good
Packaging & Deliveryiveryivery D-MAX parts TFR55 diesel engine automotive transmission gearbox
1. Model : for Isuzu d-max model
2. Item Name: D-MAX TFR55
3. Color: silver
4. Material: steel
5. Packing: 1pcs/ctn
One Stop Service and Resource supplier for Auto parts
Truck and bus parts:
1. Toyota Hiace, Jinbei Hiace,Nissan E25,etc
2. Isuzu, JMC, etc
1. OEM NO.:
2. Item Name: Gear box
3. Item No: 200-727-0012
4. Car Make: TOYOTA HIACE;JINBEI
5. MOQ: 1 PC
6. Color:
7. Material: Aluminium
8. Packing: 1 PC/CTN
1) Manual transmission with three-shafts
2) Separated structure is designed to reduce maintenance costs and expand series products easily
3) Adopts aluminum-alloy case and cast iron intermediate plate for a lightweight structure with big torque and low noise operation
4) All gears adopted optimum designed spindly teeth and precision shot peen gear faces and roots to decrease noise of and increase carrying capacity
5) Forward gear with synchronizer with unique structural design for fifth and reverse gear which decreases synchronous moment of inertia and shift force
6) Low reverse gear is designed to decrease lock rate and the shifting gear lock is adopted to avoid reverse gear shifting in error when shifting out of fifth gear
Specifications:
1) Manual transmission with three-shafts
2) Separated structure is designed to reduce maintenance costs and expand series products easily
3) Adopts aluminum-alloy case and cast iron intermediate plate for a lightweight structure with big torque and low noise operation
4) All gears adopted optimum designed spindly teeth and precision shot peen gear faces and roots to decrease noise of and increase carrying capacity
5) Forward gear with synchronizer with unique structural design for fifth and reverse gear which decreases synchronous moment of inertia and shift force
6) Low reverse gear is designed to decrease lock rate and the shifting gear lock is adopted to avoid reverse gear shifting in error when shifting out of fifth gear
7) With a remote control and cable ideal for use on buses, MPVs, pickups, SUVs and other light vehicles
8) Suitable for assorted engines or chassisTechnical parameters:
8.1) Max. Input power: 102kW/5, 400rpm
8.2) Max. Input torque: 200N. M /3, 000rpm
8.3) Center distance: 72mm
9) Ratio: (1st, 2ND, 3rd, 4th, 5th, reverse)
9.1) 3.70, 2.02, 1.37, 1.00, 0.80, 4.47
9.2) 3.93, 2.33, 1.45, 1.00, 0.85, 4.74
9.3) 4.45, 2.40, 1.41, 1.00, 0.80, 4.47
9.4) 4.45, 2.62, 1.52, 1.00, 0.85, 4.47
9.5) 5.01, 2.95, 1.71, 1.00, 0.9, 5.03
9.6) 3.99, 2.15, 1.33, 1.00, 0.85, 4.22 5)
10)Ratio of speedometer: 17, 18, 19, 20, 21, 22/5, 6
11)Lubrication oil type: 5W/90 (GL-4)
12) Oil capacity: 2.0L
13) Weight: 32kg9) Applicable engine: 491 (Toyota: 3Y, 4Y), 4G24 (Toyota: 2RZ, 3RZ)10) Applicable vehicle: Coach bus, MPV (Toyota: Hiace)
We can supply manual gearbox for Toyota Hiace and Hilux new model(2TR, 2KD), Isuzu and Mitsubishi, matched the engines of Toyota 3Y, 4Y, 2RZ, 3RZ, ISUZU 4JB1.2TR, 2KD
Packaging & Shippingippingpping
Packing:
1. Usually in neutral package if customer asked.
2. We can give color box packing based on large quantity as customer wanted.
3. We can stick color label on box for some cutomer.
4. Each carton has side mark with items name, quantity/ctn. If item has inner box, we will stick a label with item no and name.
5. We can print OE no on item based on small quantity.
