Rugged Waterproof Mobile Industrial GPS (IP65) Handheld Barcode Scanner PDA

Rugged Waterproof Mobile Industrial GPS (IP65) Handheld Barcode Scanner PDA

199-499 USD

add to cart
Model NO. CFON600
Max Width No
Scan Speed 100 scans/sec
Usage Barcode Scanner
Interface Type RS232, USB, IEEE
Optical Resolution 508dpi
OS Android 6.0
Memory 1GB Lpddr RAM, 8GB Nand Flash ROM
Camera Rear 8.0m Pixels, Auto Focus, Flashlight
WiFi IEEE802.11b/G/N
Barcode Scanner 1d/2D Barcode Scanner Optional
Trademark Corewise
Origin Shenzhen Guangdong
Type Laser Scanner
Kind Flatbed Scanner
Scanning Light Source Laser
Network Scanning Support Network
Scanning Element Laser
Application Commercial Application
Display TFT LCD 4', Display Resolution:800*480800*480
Touch Screen Capacitive Touch Screen
GPS GPS, Glonass Supported, 10m
Bluetooth Bt 4.0 with A2dp
Frequency GSM WCDMA CDMA TDS-CDMA Td-Lte:B38/B39/B40/B41 E
Specification 160 mm x 70 mm x 24 mm
Rugged waterproof mobile industrial gps (ip65) handheld barcode scanner pda

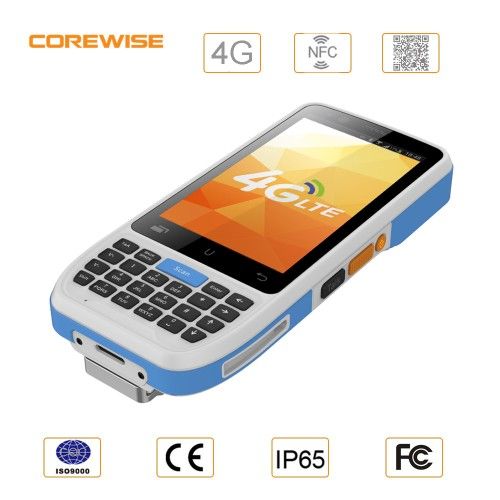

CFON600 Description
COREWISE CFON600 is an industrial PDA integrated with 1D/2D bar code scanning and NFC function, in conjunction with easy& quick scanner and smart mobile computer, to provide more convenient and efficient data collection options to users. The product also possesses functions of superior DPM, image capture, data type-in and data view, combined with 4G, WIFI, 433MHz wireless communication technology, helping mobile workforce to enhance operational efficiency.ency.ency.
Physical Parameter
Design Bar phone Keys twenty eight
Dimensions (L*W*D) 160 mm x 70 mm x 24 mm Weight 350g
Function Parameter
Operating System Android 6.0 Memory 1GB RAM,8GB ROM/1GB RAM,4GB ROM
CPU Qualcomm 8909, 1.2Ghz, Quad Core Camera Rear 8.0M Pixels, Auto Focus with Flash
Memory and Extension Micro SD Card, up to 32GB Networks GSM: 850/900/1800/1900
GPS GPS,GLONASS supported,10m WCDMA:B1/B2/B5
Bluetooth BT4.0 LTE CDMA: BC0
WIFI IEEE 802.11b/g/n TDS-CDMA:B34/B39
Display 4 inch TFT LCD, Resolution 800*480 FDD-LTE:B1/B3
Panel Capacitive touch screen TD-LTE:B38/B39/B40/B41
Optional Functions
NFC Optional
Barcode Scanner
1D Linear Scanner : 1D Linear Scanner :
UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes
2D Imager Scanner: 2D Imager Scanner:
PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Other Parameter
Battery Pack 3.7V, 4000mAh Headphone Supported, 3.5mm
USB Mini- USB 10pin Speaker Supported
Voice Call Supported Charging interface DC 5.5V 1.2A
Reliability MTBF no less than 5000 hours
User Environment
Operating Temp -20ºC~+70ºC~+70ºCrdm;C~+70ºC Working humidity <90%RH0%RH
Storage Temp -40ºC~+70ºC~+70ºCrdm;C~+70ºC Storage humidity 20% ~93%RH(40ºC)rdm;C)rdm;C)
The atmospheric pressure 86Kpa~110Kpa Drop Grade IP65

Packaging & Shippingppingpping
Trade Terms:
Under the Incoterms 2010 rule:
FCA (China), CIP(Destination place),CPT(Destination place), EXW,DDP(named place of destination), DAP(delivered at place),DAT(delivered at terminal)
Payment Terms:
T/T 40% down payment, the balance 60% before shipment.
By confirmed and irrevocable L/C at sight .
D/A,D/P
Packaging: Carton ,neutral packing, or customized packing as required
Delivery Lead Time: 1-100pcs within 7 working days upon receipt of your payment;
100-3000pcs within 35 working days upon receipt of payment.
(Shipping by DHL ,Fedex,UPS or TNT.)
Company Information
Corewise is a leading high-tech enterprise specialized in manufacturing various terminals around smart phones integrated with fingerprint sensors, RFID writers/readers (13.56 MHz for proximity or 840-960 MHz for long range), barcode scanners and thermal printers. These seemingly premature products are hardware ready for further developments to fit any needs using technologies of biometric fingerprint imaging/capturing, RFID & barcode scanning.ning.ning.
Our devices are semi-finished product, which requests further development resorting to our SDK on basis of its
hardware.
Normally the Buyer shall have technical development capability and technical support capability. Of course we willprovide online help/support if required.
We provide free SDK ,DEMO and the application development guide and development environment introduction,
meanwhile,we will provide technical support in your development process.
(You are also welcome to commission this development job to us,we will charge it according to the development period)
FAQ
1.Q:Are you manufacturer?
A:Yes.Our company headquarters is located in Nanjing of China, factory in shenzhen.
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
3.Q:Does the device have the language default as English?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
4.Q:Can your device install the Android Apps that our customers provide?
A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
