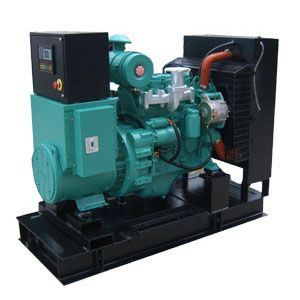

Cummins Silent Diesel Generator Set 20kVA
bargain
add to cart| Model NO. | HCM23 |
| Installation Method | Fixed |
| Cooling Method | Water Cooling |
| Speed | HSS |
| Usage | Common Units |
| Excitation Mode | AC Rotating Exciter |
| Warranty | 1 Year or 1000 Working Hours |
| Trademark | HONNY |
| Origin | China |
| Type | Self-Starting Diesel Generator |
| Stroke | Four Stroke |
| Output Type | AC Three Phase |
| Conditions of Use | Land Use |
| Landuse Type of Unit | Low Noise Automation Type |
| Certificates | CE, ISO, SGS, TUV, etc |
| Options | Silent Canopy, Fuel Tank, ATS, Parallel |
| Specification | ISO8528 |
| HS Code | 8502110000 |
Cummins Silent Diesel Generator Set 20kVA
Cummins engine 4BT3.9-G
Prime 16kw/20KVA, standby 18kw/22.5KVA
Rating frequency 50Hz, 1500RPM, Voltage 400/230V (adjustable)
Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
Cummins engine 4BT3.9-G
Prime 16kw/20KVA, standby 18kw/22.5KVA
Rating frequency 50Hz, 1500RPM, Voltage 400/230V (adjustable)
Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
| Generator set | Genset Model | HCM23 | |
| Rating Power (KW/KVA) | 16/20 | ||
| Standby Power(KW/KVA) | 18/22.5 | ||
| Rating Ammeter(A) | 36 | ||
| Diesel engine | General data | Engine model | 4B3.9-G |
| Prime Power(KW/KVA) | 24/30 | ||
| Standby Power(KW/KVA) | 27/33.75 | ||
| number of Cylinder & Configurationationation | 4 cylinders in line | ||
| Bore X Stroke (mm) | 102X120 | ||
| Displacement(l) | 3.9 | ||
| Compression Ratio | 16.5:1 | ||
| Governor type | Mechanic | ||
| Rated RPM | 1500 | ||
| Exhaust system | Exhaust gas flow(m³/min);/min);/min) | 7 | |
| Max. Exhaust back Pressure(KPA) | 10 | ||
| Air intake system | Aspiration Type | Naturally intake | |
| Max. intake depression(KPA) | 6 | ||
| Combustion air Volume(m³/min);/min);/min) | 1.8 | ||
| Fuel system | Rating Fuel Consumption(l/h) | 6 | |
| 75% full Fuel Consumption(l/h) | 6.3 | ||
| Lubrication system | Total oil capacity(l) | 9 | |
| Oil pressure at rated rpm(KPA) | 345-413 | ||
| Cooling system | Total Coolant capacity(l) | 18 | |
| Fan cooling air flow(m³/min);/min);/min) | 125 | ||
| Alternator | Alternator model | GM-20-4 Shanghai Marathon | |
| Rating Voltage(V) | 400/230 | ||
| Rating Capacity(KW/KVA) | 16/20 | ||
| Eff.% | 85% | ||
| Power Factor | 0.8 | ||
| Exciting type | Brushless self-exciter, AVR | ||
| Voltage regulation | ±1%lusmn;1%lusmn;1% | ||
| No. of Phase | 3 phase 4 wire | ||
| Enclosure Class | IP21 | ||
| Class of Insulation | H | ||
| Battery | Rating Capacity(AH) | 2X60AH 12V | |
| Dimension | Generator set dimension (LXWXH) | 1600X830X1300 | |
| Weight | Generator set Net Weight (kg) | 950 | |
