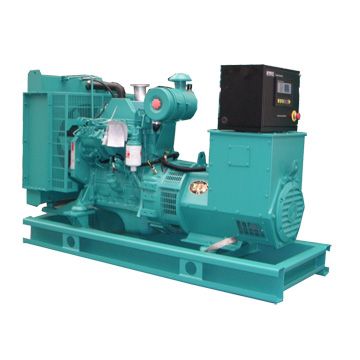

Cummins Diesel Generator Set:
Prime 72.5kVA, Standby 80kVA
Engine model 6BT5.9-G2
50Hz, 1500rpm, 400/230V(adjustable)
Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
