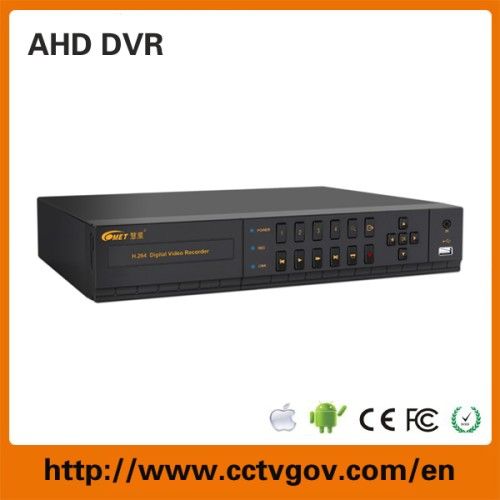

2015 Wholesale 8CH 1080P Ahd DVR with 2 HDD
| Model NO. | HX-A4508BZ |
| Video Compression | H.264 |
| Operating System | Linux |
| Interface Type | BNC/VGA/HDIM |
| Audio Input/Output | 8 Channel |
| Type of DVR | Ahd DVR Recorder |
| Mobile APP | Xmeye/ Cctvgov1 |
| Video Input | 8 Channel |
| Hybrid Mode | 8*Ahd 1080P |
| Package | Standard Box |
| Trademark | COMET |
| Origin | Shenzhen, China |
| Type | Standalone |
| Compressed Format | H.264 |
| Application | Commercial DVR |
| Video Input/Output | 8 Channel |
| Remote Control | With Remote Control |
| Ahd DVR Feature | H.264, 1080P, HDMI |
| HDD Support | Max 4tb |
| Network Interface | Rj-45(10m/100m) |
| Certificate | CE/RoHS/FCC |
| Carton Size | 5PCS Per Cartons |
| Specification | CE/FCC/ROHS/SGS |
| HS Code | 8521909090 |
2015 wholesale 8ch 1080p ahd dvr with 2 HDD (HX-A4508BZ)
* support AHD-M series front-end real-time encoding;
* analog, network, AHD mixed input
* support VGA, HDMI HD output;
* supports P2P technology, any band can be done remotely;
* PC, PAD and mobile wireless playback technology, alarm video push;
* support 4TB hard disk;
* supported wireless network cards
8ch 1080p ahd dvr parameters:
Welcome sample test and trial orders!
* support AHD-M series front-end real-time encoding;
* analog, network, AHD mixed input
* support VGA, HDMI HD output;
* supports P2P technology, any band can be done remotely;
* PC, PAD and mobile wireless playback technology, alarm video push;
* support 4TB hard disk;
* supported wireless network cards
8ch 1080p ahd dvr parameters:
| Brand | Comet | |
| Model | HX-A4508BZ | |
| System | Main processor | Industrial embedded microcontroller Hass Huaweiplatform Hi3521 |
| The operating system | Embedded LINUX operating system | |
| System resources | Simultaneous multi-channel video, multiplesecondary stream, multi-channel playback, multi-channel network operation, USB backup | |
| Interface | Operator interface | 16 bit true color graphic menu interface, mouse,remote control, button operation |
| Picture display | 1/4/8/9 screen (in pure local input modes, forexample, determined in accordance with channelmode) | |
| Video | Video standards | PAL/NTSC(1080P) |
| Image coding | H.264(High Profile); | |
| Monitoring quality | VGA: HD; HDMI: HD | |
| Playback quality | 1080P/720P/960H/D1 | |
| AHD access | 8×AHD 1080PD 1080PD 1080P | |
| AHD+ network access | 8×AHD 720P + 8×IP 720P/ 2×AHD 1080P + 2×IP 1080P 1080P + 2×IP 1080P 1080P 1080P + 2×IP 1080P | |
| Pure network access | 4×IP 1080P / 1×IP 1080P+8×IP 720P /20×IP D1s;IP 720P /20×IP D1;IP D1s;IP 720P /20×IP D1 | |
| Motion detection | Support | |
| Audio | Standard | G.711A |
| Intercom | Support | |
| Video recording and playback | Video mode | Manual ﹥ alarm ﹥ detecting ﹥ timinggt; timing |
| Local playback | 4-channel (default plain local input) | |
| Video queries | Time search, calendar search, events search, channel search | |
| Storage and backup | Each take up hard disk space | Video: CIF 4~5G/day * channel D1 8~10G/day* channel, 960H 12~20G/day * channels 720P 24~30 G/days * channel 1080P 40G~/days * channel; |
| Audio: 691.2M/day * channel | ||
| Video save | Your local hard disk, network | |
| Backup method | Network backup, USB HDD, USB recording | |
| Interface | Video input | 8-channel BNC (1.0Vp-p, 75 ohms), RJ45 |
| Video output | 1 VGA, 1 HDMI | |
| Loop-through output | Does not support | |
| Audio input | 8-channel RCA (200-2800mV,30K ohm) | |
| Audio output | 1-channel RCA (200-3000mV,5K ω)/1-channel HDMI audio output output output | |
| Alarm inputs | NO | |
| Alarm output | NO | |
| Network interface | Adaptive RJ45 10M/100M Ethernet interface | |
| PTZ control | 1 RS485 interface, supporting 20 kinds or more PTZ protocols | |
| USB interface | 2 USB2.0 interface, 1 x USB1.1 interface | |
| Hard disk interface | 2 SATA connectors (each maximum support 4T) | |
| Wireless interface | 3G, WIFI (extended through USB) | |
| Other | Onvif protocols | Support ONVIF2.3 |
| Power supply | DC 12V/3A | |
| Dimensions | 325mm (L) * 245mm (W) * 52mm (H) | |
Welcome sample test and trial orders!
