Wholesale Newest 4CH 1080P Ahd DVR
| Model NO. | HX-A4304BZ |
| Video Compression | H.264 |
| Operating System | Linux |
| Interface Type | BNC/VGA/HDIM |
| Audio Input/Output | 4CH |
| Type of DVR | Ahd DVR Recorder |
| Hard Disk | 4tb |
| Display System | PAL/NTSC |
| Mobile APP | Xmeye/ Cctvgov1 |
| Hybrid Mode | 4*Ahd 1080P |
| Trademark | COMET |
| Origin | Shenzhen, China |
| Type | Standalone |
| Compressed Format | H.264 |
| Application | Commercial DVR |
| Video Input/Output | 4 Channel |
| Remote Control | With Remote Control |
| Display Interface | HDMI VGA BNC |
| OEM | Support |
| Ahd DVR Feature | H.264, 1080P, HDMI |
| Network Interface | Rj-45(10m/100m) |
| Certificate | CE/RoHS/FCC |
| Specification | CE/FCC/ROHS/SGS |
| HS Code | 8521909090 |

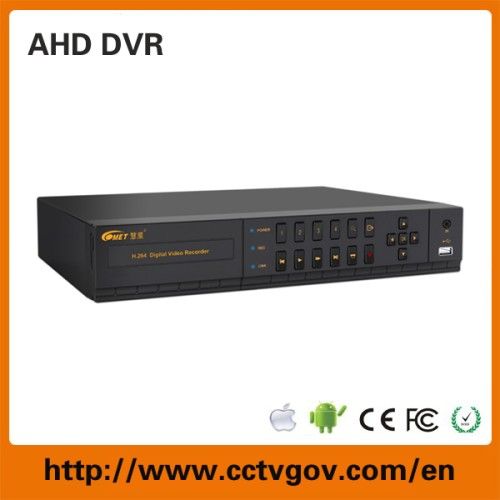

Wholesale Newest 4CH 1080P AHD DVR (HX-A4304BZ)
Key features of AHD DVR Recorder:
* 4CH 1080P AHD DVR;
* support AHD-M series front-end real-time encoding;
* analog, network, AHD mixed input
* support VGA, HDMI HD output;
* supports P2P technology, any band can be done remotely;
* PC, PAD and mobile wireless playback technology, alarm video push;
* support 2*HDD Each max 4TB;
* supported wireless network cards
4CH 1080P AHD DVR Parameters:
Welcome remote experience this ahd DVR or sample testing.
Key features of AHD DVR Recorder:
* 4CH 1080P AHD DVR;
* support AHD-M series front-end real-time encoding;
* analog, network, AHD mixed input
* support VGA, HDMI HD output;
* supports P2P technology, any band can be done remotely;
* PC, PAD and mobile wireless playback technology, alarm video push;
* support 2*HDD Each max 4TB;
* supported wireless network cards
4CH 1080P AHD DVR Parameters:
| Brand | Comet | |
| Model | HX-A4304BZ | |
| System | Main processor | Industrial embedded microcontroller Hass Huaweiplatform Hi3521 |
| The operating system | Embedded LINUX operating system | |
| System resources | Simultaneous multi-channel video, multiplesecondary stream, multi-channel playback, multi-channel network operation, USB backup | |
| Interface | Operator interface | 16 bit true color graphic menu interface, mouse,remote control, button operation |
| Picture display | 1/4 screen (in pure local input modes, forexample, determined in accordance with channelmode) | |
| Video | Video standards | PAL/NTSC (1080P) |
| Image coding | H.264(High Profile); | |
| Monitoring quality | VGA: HD; HDMI: HD | |
| Playback quality | 1080P/720P/960H/D1 | |
| AHD access | 4×AHD 1080PD 1080PD 1080P | |
| AHD+ network access | 2×AHD 720P + 2×IP 720Ptimes;IP 720Ptimes;IP 720P | |
| Pure network access | 2×IP 1080P + 2×IP 720P/ 8×IP 720P0P/ 8×IP 720PP 720P0P/ 8×IP 720P | |
| Motion detection | Support | |
| Audio | Standard | G.711A |
| Intercom | Support | |
| Video recording and playback | Video mode | Manual ﹥ alarm ﹥ detecting ﹥ timinggt; timing |
| Local playback | 4-channel (default plain local input) | |
| Video queries | Time search, calendar search, events search, channel search | |
| Storage and backup | Each take up hard disk space | Video: CIF 4~5G/day * channel D1 8~10G/day* channel, 960H 12~20G/day * channels 720P 24~30 G/days * channel 1080P 40G~/days * channel; |
| Audio: 691.2M/day * channel | ||
| Video save | Your local hard disk, network | |
| Backup method | Network backup, USB HDD, USB recording | |
| Interface | Video input | 4-channel BNC (1.0Vp-p, 75 ohms), RJ45 |
| Video output | 1 VGA, 1 HDMI | |
| Loop-through output | Does not support | |
| Audio input | 4-channel RCA (200-2800mV,30K ohm) | |
| Audio output | 1-channel RCA (200-3000mV,5K ω)/1-channel HDMI audio output output output | |
| Alarm inputs | NO | |
| Alarm output | NO | |
| Network interface | Adaptive RJ45 10M/100M Ethernet interface | |
| PTZ control | 1 RS485 interface, supporting 20 kinds or more PTZ protocols | |
| USB interface | 2 USB2.0 interface, 1 x USB1.1 interface | |
| Hard disk interface | 2 SATA connectors (each maximum support 4T) | |
| Wireless interface | 3G, WIFI (extended through USB) | |
| Other | Onvif protocols | Support ONVIF2.3 |
| Power supply | DC 12V/3A | |
| Dimensions | 325mm (L) * 245mm (W) * 52mm (H) | |
Welcome remote experience this ahd DVR or sample testing.
