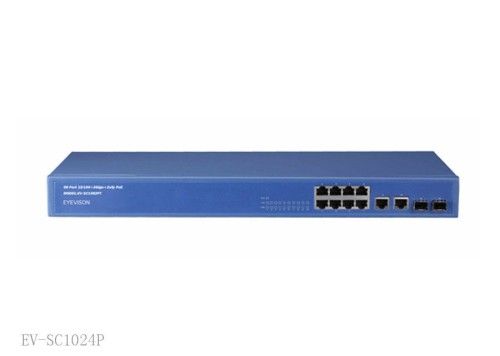

Smart Poe Network Switch 24 Port 2giga 2SFP, 2GB Ethernet Switch EV-Sc1024p

Smart Poe Network Switch 24 Port 2giga 2SFP, 2GB Ethernet Switch EV-Sc1024p

bargain

add to cart
Model NO. EV-SC1024P
Ports 24, 8
Power Voltage 48V
Long*Wide*High 440*278*44mm
Network Site Border Router
Firewall Firewall
Application Enterprise, Personage
Performance Non Line Speed Router
Trademark EYEVISON
Origin Shenzhen, China
Type Ethernet Switch, Wired
Power Supply 400W
Characteristics FPC
Weight 5kg
Transfer Rate 10/100Mbps
Port Structure Modular
Network WCDMA
Architecture Shared Memory
Specification CE, FCC
HS Code 8517623210

Smart Wireless Gigabit POE Network Switch 24 port 2Giga 2sfp , 10gb Ethernet Switch
Introduction:
The 24 ports Standard POE switch provides power and data to wireless access point and IP camera, using Power over Ethernet(PoE) over a single Cat-5 cable. The 24 Ethernet ports can be used for any 10/100 Mbps link and also can supply industry-standard IEEE 802.3af power. Advanced Auto detection gives power only to 802.3af powered devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the standard automatically determines PoE requirements, speed, duplex, and cable type using Auto detection.
Easy Cabling Installation:
With data and power over Ethernet from one unit, The poe switch shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. It is a great selection for expanding your home or office network.
Specification:

POE
POE PORT
1-24

POE Standard
IEEE802.3AF IEEE802.3AT

POE power pin
endspan:1/2(+) 3/6(-)

POE power
30w(at), 15.4w(af)

RJ45
Rj45 port
1-26

speed
1-24 10M/100M
25-26 10M/100M/1000M

SFP
SFP
25-26

speed
1.25G

Web manager
Web manager
Web managament by IE brower

Manage parameter
Manage parameter
IEEE 802.1Q VLAN
IEEE 802.1p
QoS
802.3ad trunk
802.1D
DHCP client

performance parameter
Backplane bandwidth
8.8G

network delay
<20 ms0 ms

Packet forwarding rate
6.5Mpps

The packet buffer memory
256KB

The address database size
8000

The mean time to failure
5 years

network protocol
network protocol
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3ab 1000BASET
IEEE 802.3z 1000BASEX

POE standard
IEEE802.3AF IEEE802.3AT

Power support
power supply
400w

Power voltage
48V

characteristics
FPC

size
Long*wide*high
440*278*44mm

weight
5kg

Environmental specifications
operation temperature
-20° -70°C( 32° 104° F)° 104° F)° F)° 104° F)

Storage temperature
-40° -85°C (14° 158° F)° 158° F)° F)° 158° F)

Operating humidity
10% 90%, no condensation

Operating height
3000 meters above sea level (10000ft)

Radiation and security
Radiation
CE mark,commercial
FCC Part 15 Class A
EN 55022 (CISPR 22),Class A

security
EN 55024

Guarantee
switch
1 year

Packing
Package content
switch
AC power line
The product specification
Warranty card certificate

Features:
1. 24 ports with poe,2 ports 10/100/1000M rj45 and SFP
2. Fully ieee80.2af/at standard compilant
3. Support poe poer up to 15.4w for each port
4. Auto detect powered device(PD)
5. Safe and reliable power to ech of poe end device
6. Plug&play,no configuration requireduireduired
