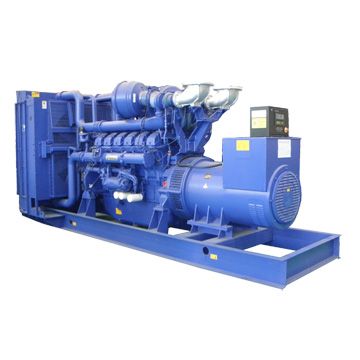

50Hz Large Container Type 1600kW Diesel Generator
Perkins engine 4016TAG2
Rating power 1646kw/2058 kVA
Standby power 1811kw/2264 kVA
50Hz, 1500rpm, 400/230V(adjustable)
Fuel consumption 430L/h
BokeXStroke 160X190
Qua. Of cylinder 16V
Dimension size 60200X2300X3000 mm
Weight 15500kg
Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Optional Accessory
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.ailer.iler.
