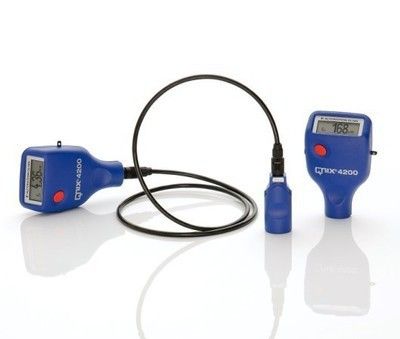

QNIX4200P coating thickness gauge (split)

Brand: Germany Knicks

QNix4200: the world's most popular coating thickness testing equipment, widely used in the paint, automotive and other industries
QNix4200 features
High precision: QNix4200 in good condition within the range of the linear precision
Operation is simple: do not need to be calibrated, can be accomplished one-handed operation
Advanced technology: using mature Hall sensor, measurement is more stable
Ruby wear-resistant, rugged wear-resistant, better protect the measuring surface

Based on the traditional QNix4200, in order to meet the needs of different customers, special introduction QNix4200P
(Split), between the probe and the host by connecting a probe line, to meet specific measurement environment (such as a small space) needs of measurement easier, more humane, more cost-effective
In order to meet user needs, also launched QNix4200 (large range) machine, so that the range can be expanded in iron-based measurement mode to 5mm

QNix4200 (split), introduced
1 simple rapid measurement
2 do not need to be calibrated
3 automatic switching
4 large measuring range FE:0-3000um
5 double probes, high cost performance
6 Hall sensor for measuring a more stable
7 measuring voice synchronization
8 Ruby wear resistance and long service life
9 backlit LED display, reading much clearer
10 automatic recognition measurement matrix
11 separate probes, satisfies the different measurement environment

Technical parameters:

Magnetic substrate (Fe models)
QNix4200/4500 has this feature
Non-magnetic substrate (NFe models)
QNix4500 has this feature
Measuring range:
QN4200:Fe:0-3000um
QNIX4500: Fe: 0-3000um; NFe: 0-3000um
QNIX4500 (5mm): Fe:0-5000um; NFe:0-3000um
QNIX4500 (size): Fe:0-3000um; NFe:0-3000um

Display precision: 0.1um
Accuracy: 0-50um: ≤ ± 1um,50-1000um: ≤ ± 1.5 readings, 1000-3000um ≤ ± 3 readings

Minimum surface: 10x10mm
Minimum curvature radius of convexity: 3mm; Concave: 25mm

Minimum substrate thickness: Fe:0.2mm/NFe:0.05mm

Compensated temperature range: 0-60 ℃

Display: LCD LCD (with backlight)

Probe: Ruby-fixed

Power supply: 2x1.5V batteries

Size: 100x60x27mm

Weight: 110g
