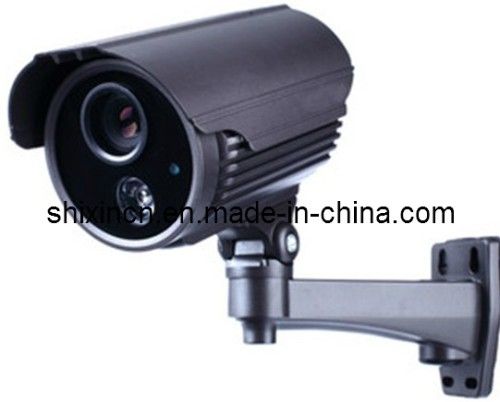

650TV Lines Array LED Security Camera for Outdoor Installation (SX-8805AD-3)
| Model NO. | SX-8805AD-3 |
| Style | Fixed Focus Lens |
| Sensor | CCD |
| Kind | Autofocus Lens |
| Effective Distance | ≧30m |
| 1/3 Inch Sony CCD | 4mm/6mm/8mm/12mm/16mm |
| Case | Metal |
| IR LED | 1PCS Array IR LED |
| Trademark | SHIXIN or OEM |
| HS Code | 8529904100 |
| Technology | Infrared |
| Type | CCTV Camera |
| Horizontal Resolution | 700tvl |
| Feature | Waterproof / Weatherproof, Array LED |
| Sensor Size | 1/3 inch |
| Resolution | 700tvl |
| Night Vision | Array LEDs |
| IR Distance | 15m |
| Origin | Shenzhen |
Array LED CCTV Camera SX-8805AD-3
- Color 1/3' Sony HAD 2 CCD IMAGE SENSORSENSOR
- Ultral High Resolution 700TVL
- ATR (Adaptive Tone Reproduction)
- BLC/HLC
- 2D-DNR
- O. S. D Menu (7 languages)
- Motion Detection
- Privacy Region Shielded
- Color 1/3' Sony HAD 2 CCD IMAGE SENSORSENSOR
- Ultral High Resolution 700TVL
- ATR (Adaptive Tone Reproduction)
- BLC/HLC
- 2D-DNR
- O. S. D Menu (7 languages)
- Motion Detection
- Privacy Region Shielded
| Model Number | SX-8805AD-3 |
| Sensor | 1/3 inch Sony CCD(PAL: ICX673AK/NTSC: ICX672AK) |
| DSP System | CXD4127 |
| Effective Pixels | NTSC:976(H)×494(V);494(V);494(V) |
| PAL:976(H)×582(V);582(V);582(V) | |
| Sync. System | Internal |
| O.S.D Menu | Available( 7 languages ) |
| Backlight Compensation | BLC/HLC/OFF selectable |
| Resolution | Color: 650TVL B/W: 700TVL |
| S/N(Y Singal) | ≥65dB(AGC OFF)OFF)OFF) |
| Mini Illumination | Color Model: 0.001 Lux |
| B/W Model: 0.0001 Lux | |
| White Balance | ATW/PUSH/USER 1/USER 2/ANTI CR/MANUAL/PUSH CLOCK |
| Gain Control | YES |
| Motion Detection | On/Off( 4 Zone ) |
| Privacy | On/Off( 4 Zone ) |
| Horizontal Resolution | 700 TV lines |
| Mirror(H-REV) | ON/OFF |
| SHARPNESS | ON/OFF(Level Adjutable) |
| D/N Selection | Color/B/W/Auto |
| ATR | ON/OFF |
| Noise Reduction | 2D-NR |
| Video Output | Picture Adjustment |
| White Pixel Detection and Compensation | Static and Dynamic |
| Automatic Adjustment of Mechanical Iris | Yes |
| Analog Output | Y/C Separate video, Composite video |
| Lens | 3.6mm, 6mm, 8mm.12mm. 16mm Optional |
| IR LED | One Array IR Led |
| IR View Distance | 15m |
| Power | DC12±10% Max 2.0WMax 2.0WMax 2.0W |
| Dimension | (D) * (H)mm |
| Weight | g |
