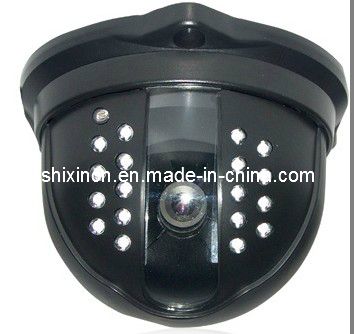

700TV Lines Day/Night Dome Securiyt Camera (SX-2066AD-3)
| Model NO. | SX-2066AD-3 |
| Style | Dome Camera |
| Sensor | CCD |
| Kind | Manual Focus Lens |
| Feature | Mini Size, Auto BLC |
| Sensor Size | 1/3 inch |
| Trademark | SHIXIN or OEM |
| Specification | 54*34*40cm |
| HS Code | 8529904100 |
| Technology | Infrared |
| Type | CCTV Camera |
| Horizontal Resolution | 700tvl |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| 1/4' Sharp CCD 420tvl420tvl | 3.6mm/6mm Lens |
| Transport Package | 40PCS/CTN; 11kg/CTN |
| Origin | Shenzhen |
Day/Night Dome CCTV Camera SX-2066AD-3
@700 Lines of Resolution
@Automatic Gain Control & BLC; BLC; BLC
@18 High Output IR LED's W/45' Range
@Photocell Turns on IR LED's at 10 Lux
@Built-in Lens. Excellent Value
@700 Lines of Resolution
@Automatic Gain Control & BLC; BLC; BLC
@18 High Output IR LED's W/45' Range
@Photocell Turns on IR LED's at 10 Lux
@Built-in Lens. Excellent Value
| Model Number | SX-2066AD-3 |
| Resolution | Med-res. |
| Sensitivity (F1.2) | 0.3Lux, 0 Lux at IR on |
| Chip | SONY Effioe-E |
| Pick-up Device | 1/3' Sony Super HAD 2 CCD sensorsensor |
| Minimum Illumination | 0 Lux / F1.2 IR on |
| S/N ratio | 52dB(AGC OFF) |
| Auto Gain Control | AGC |
| White Balance | Auto |
| BLC | Auto |
| TV system | PAL/NTSC |
| Picture Elements | NTSC: 811(H)×508(V), PAL: 795(H)×595(V)×595(V)595(V)×595(V) |
| H. Sync Frequency | NTSC: 15.734KHz, PAL: 15.625KHz |
| V. Sync. Frequency | NTSC: 59.94 Hz, PAL: 50 Hz |
| Synchronization | Internal |
| Horizontal Resolution | 700 TV lines |
| Back Light Compensation | ON/OFF Switchable |
| Electronic Shutter | ON/OFF Switchable, |
| Range: 1/50(1/60) ~ 1/100, 000 sec. | |
| Lens | 6mm |
| Gamma Correction | 0.45 |
| IR LED | 18 units 850nm infrared LED |
| IR Distance | 15meters (Subject to IR reflection conditions ) |
| IR Status | IR on: Under 10 Lux, by PT auto control |
| Power Requirement (± 10%)mn; 10%)mn; 10%) | DC12V, 500mA |
| Power Consumption (± 10%)mn; 10%)mn; 10%) | IR on: 300mA, IR off: 120mA |
| Video Output | 1.0 Vp-p, 75 Ohm |
| Dimension (mm) | 108(ø ) x 83 (H)x 83 (H)x 83 (H) |
| Power Consumption (+/-10 %) | 110mA |
| Weight (g) | 200g |
| Storage Temperature | -30 ~ + 80 |
| Operating Temperature | -20 ~ + 55 |
