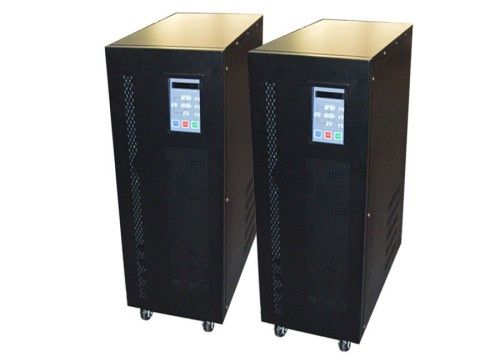

High Reliable 8kVA Computer UPS Battery Backup with Stable Voltage
bargain
add to cart| Model NO. | GP1108KS |
| Usage | UPS, Electric Power, Electric Bicycle |
| Discharge Rate | High Discharge Rate |
| Electrolyte | Alkaline |
| Rechargeable | Chargeable |
| Transport Package | Paper Packaging |
| Origin | Shenzhen |
| Type | Lead-Acid Batteries |
| Nominal Voltage | 220V or 230V |
| Shape | Square Battery |
| Installation | Open Frame |
| Trademark | Eyevison |
| Specification | 44*40*20 |
| HS Code | 8504402000 |
High Reliable 8KVA Computer UPS Battery Backup With Stable Voltage
Quick Detail:
1. Perfect protection function, standard configuration have lightning and surge protection
2. Wide input voltage design, the remarkable grid adaptability
3. Zero switching time, pure sine wave output
4. Durable and reliable industrial design, strong load compatibility
5. Double conversion on-line design, including output isolation transformer
6. Intelligent monitoring function, can optional SNMP card
7. Large-screen high-definition LCD Chinese and graphical display
Application:
1. monitor,security systems, information center
2. Industrial and mining equipment, chemical industry, petrochemical production equipment
3. Others (the valuable equipment that do not allow outage)
4. centralized power supply for Workstations, Medium and large data centers department
5. Industrial automatic equipment, SMT chip mounter equipment
6. Transmitter station, control room, medical instruments
7. Factory production equipment
Technical specifications and parameters:
Model | GP1108KS |
Nominal capacity (VA) | 8KVA |
Nominal capacity (VA) | 220 VAC or 230VAC |
Input voltage range | (150-310)VAC |
Out put voltage range | 50 (60) Hz±25%usmn;25%usmn;25% |
Frequency tracking rate | 1Hz/s |
The input power factor (PF) | >0.98 |
Maximum input current | 45A |
output voltage | 220VAC±1%lusmn;1%lusmn;1% |
Output frequency (battery mode) | 50/60Hz±0.5%smn;0.5%smn;0.5% |
power factor | 0.8 Lag |
Waveform distortion | ≤2% linear load,≤3% nonlinear loadar loadar load |
overload capacity | Output will exchange bypass the power supply after overload110-150% maintain 5min;Output will exchange bypass the power supply after overload 150% maintain 300ms |
Protection function | overload,Battery low voltage,output voltage,output over voltage,system fault,over-temperature,Current limiting protection is 1.3 times of the nominal current |
switching time | 0ms |
battery voltage | 192VDC |
charging time | 8-10hour finished 90% capacity |
LED display | Indicates a battery low voltage,AC,contravariant,bypass,UPS abnormal,Overload Indication |
LCD | Input and output voltage,frequency,battery voltage,load percentage,inner temperature |
operating temperature | 0-40ºCordm;Cordm;C |
relative humidity | 0-95% Non -condensate |
Storage Temperature | -25ºC-55ºCC-55ºCrdm;CC-55ºC |
Noise | <55dB( distance box 1M )1M ) |
Net Weight (kg) | 69 |
GrossWeight (kg) | 89 |
Size (W×D×H)mm;D×H)mms;H)mm;D×H)mm | 230*580*560 |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
6. CE,FCC,RoHS passed
