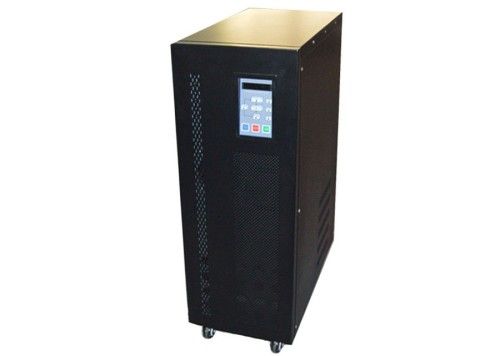

High Frequency Network 20kVA UPS Uninterruptible Power Supply 1Hz/S Gp1120ks

High Frequency Network 20kVA UPS Uninterruptible Power Supply 1Hz/S Gp1120ks

bargain

add to cart
Model NO. GP1120KS
Usage Car, UPS, Electric Power, Electric Bicycle
Discharge Rate High Discharge Rate
Electrolyte Acid
Rechargeable Chargeable
Nominal Capa 20kVA
Maximum Input Current 112A
Net Weight (Kg) 220
Type Lead-Acid Batteries
Nominal Voltage 220VAC
Shape Square Battery
Installation Open Frame
Model Gp1120ks
Frequency Tracking Rate 1Hz/S
Output Voltage 220VAC±1%plusmn;1%lusmn;1%

High Frequency Network 20KVA UPS Uninterruptible Power Supply 1Hz/s GP1120KS
Description:
The frequency of Double conversion on-line GP11 series aim at China power grid environment and load system requirement for the high reliability of power supply and carefully designed intelligent frequency on-line UPS . System designed for The frequency of Double conversion on-line topology, completely eliminate the distractions from the grid to make the output of the UPS for a stabilized voltage regulator, filter out noise, not be interference by grid wave interference and low distortion of pure sine wave power supply. The frequency of Double conversion on-line GP11 series adopt perfect combination by DSP digital design, high-speed 16 bit digital chips and DDC control technology of ASIC with advanced high power devices IGBT and SCR perfect combination, designed the intelligent UPS that have the large capacity, high reliability and excellent performance and the capacity from 1 kva to 20 kva.
Key features:
1,Wide input voltage design, the remarkable grid adaptability
2,Zero switching time, pure sine wave output
3,Durable and reliable industrial design, strong load compatibility
4,DC emergency start function
5,Perfect protection function, standard configuration have lightning and surge protection
6,Intelligent monitoring function, can optional SNMP card
7,Large-screen high-definition LCD Chinese and graphical display
Specifications:

Model
GP1120KS

Nominal capacity (VA)
20KVA

Nominal capacity (VA)
220 VAC or 230VAC

Input voltage range
(150-310)VAC

Out put voltage range
50 (60) Hz±25%usmn;25%usmn;25%

Frequency tracking rate
1Hz/s

The input power factor (PF)
>0.98

Maximum input current
112A

output voltage
220VAC±1%lusmn;1%lusmn;1%

Output frequency (battery mode)
50/60Hz±0.5%smn;0.5%smn;0.5%

power factor
0.8 Lag

Waveform distortion
≤2% linear load,≤3% nonlinear loadar loadar load

overload capacity
Output will exchange bypass the power supply after overload110-150% maintain 5min;Output will exchange bypass the power supply after overload 150% maintain 300ms

Protection function
overload,Battery low voltage,output voltage,output over voltage,system fault,over-temperature,Current limiting protection is 1.3 times of the nominal current

switching time
0ms

battery voltage
192VDC

charging time
8-10hour finished 90% capacity

LED display
Indicates a battery low voltage,AC,contravariant,bypass,UPS abnormal,Overload Indication

LCD
Input and output voltage,frequency,battery voltage, load percentage, inner temperature

operating temperature
0-40ºCordm;Cordm;C

relative humidity
0-95% Non -condensate

Storage Temperature
-25ºC-55ºCC-55ºCrdm;CC-55ºC

Noise
<55dB(distance box 1M )1M )

Net Weight (kg)
220

GrossWeight (kg)
250

Size
(W×D×H)mm;D×H)mms;H)mm;D×H)mm
410*680*920

Application:
1, centralized power supply for Workstations, Medium and large data centers department
2,Factory production equipment
3,Industrial and mining equipment, chemical industry, petrochemical production equipment
4, Industrial automatic equipment, SMT chip mounter equipment
5,Transmitter station, control room, medical instruments
6,Others (the valuable equipment that do not allow outage)
