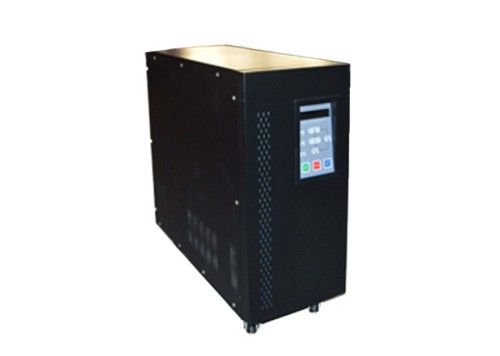

20 kVA UPS Uninterruptible Power Supply Online Industrial UPS

20 kVA UPS Uninterruptible Power Supply Online Industrial UPS

bargain

add to cart
Model NO. GP1103KS
Usage Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Discharge Rate High Discharge Rate
Electrolyte Acid
Rechargeable Chargeable
Specification metal
HS Code 8504402000
Type Lead-Acid Batteries
Nominal Voltage 220V or 230V
Shape Square Battery
Installation Open Frame
Trademark EYEVISON
Origin Shenzhen China

20 Kva Ups Uninterruptible Power Supply Online , Industrial Ups Power Supply
Description:
The frequency of Double conversion on-line GP11 series aim at China power grid environment and load system requirement for the high reliability of power supply and carefully designed intelligent frequency on-line UPS . System designed for The frequency of Double conversion on-line topology, completely eliminate the distractions from the grid to make the output of the UPS for a stabilized voltage regulator, filter out noise, not be interference by grid wave interference and low distortion of pure sine wave power supply. The frequency of Double conversion on-line GP11 series adopt perfect combination by DSP digital design, high-speed 16 bit digital chips and DDC control technology of ASIC with advanced high power devices IGBT and SCR perfect combination, designed the intelligent UPS that have the large capacity, high reliability and excellent performance and the capacity from 1 kva to 20 kva.
Key features:
1, Double conversion on-line design, including output isolation transformer
2, Wide input voltage design, the remarkable grid adaptability
3, Zero switching time, pure sine wave output
4, Durable and reliable industrial design, strong load compatibility
5, DC emergency start function
6, Perfect protection function, standard configuration have lightning and surge protection
7, Intelligent monitoring function, can optional SNMP card
8, Large-screen high-definition LCD Chinese and graphical display
9, Fully meet saltus of the load from 0 to 100%
Technical specifications and parameters:

Model
GP1103KS

Nominal capacity (VA)
3KVA

Nominal capacity (VA)
220 VAC or 230VAC

Input voltage range
(150-310)VAC

Out put voltage range
50 (60) Hz±25%usmn;25%usmn;25%

Frequency tracking rate
1Hz/s

The input power factor (PF)
>0.98

Maximum input current
18A

output voltage
220VAC±1%lusmn;1%lusmn;1%

Output frequency (battery mode)
50/60Hz±0.5%smn;0.5%smn;0.5%

power factor
0.8 Lag

Waveform distortion
≤2% linear load,≤3% nonlinear loadar loadar load

overload capacity
Output will exchange bypass the power supply after overload110-150% maintain 5min;Output will exchange bypass the power supply after overload 150% maintain 300ms

Protection function
overload,Battery low voltage,output voltage,output over voltage,system fault,over-temperature,Current limiting protection is 1.3 times of the nominal current

switching time
0ms

battery voltage
48VDC

charging time
8-10hour finished 90% capacity

LED display
Indicates a battery low voltage,AC,contravariant,bypass,UPS abnormal,Overload Indication

LCD
Input and output voltage,frequency,battery voltage,load percentage,inner temperature

operating temperature
0-40ºCordm;Cordm;C

relative humidity
0-95% Non -condensate

Storage Temperature
-25ºC-55ºCC-55ºCrdm;CC-55ºC

Noise
<55dB(distance box 1M )1M )

Net Weight (kg)
63

GrossWeight (kg)
78

Size
(W×D×H)mm;D×H)mms;H)mm;D×H)mm
200*600*550

Application:
1, centralized power supply for Workstations, Medium and large data centers department
2, Industrial automatic equipment, SMT chip mounter equipment
3,Transmitter station, control room, medical instruments
4, Factory production equipment
5, monitor , security systems, information center
6,I ndustrial and mining equipment, chemical industry, petrochemical production equipment
7, Others (the valuable equipment that do not allow outage)
