Overall dimensions (exposed part): 148.5x148.5x13.5mm

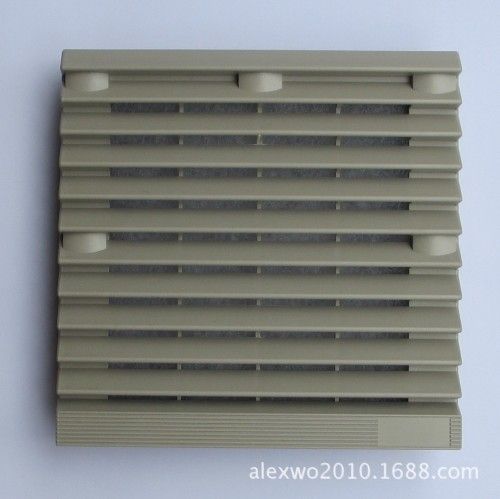

Model: ZL-803

Ventilated mesh body material: flame retardant grade ABS resin, UV protection and electrostatic effects;

Filter material: imported nylon fibers of synthetic resins,

Dust removal rate: dust removal rate of up to 86% effectively prevents dust from entering inside the electric control cabinet;

Vent: a 45-degree angle long, innovative design, elegant, multi-functional design waterproof, dustproof;

Effective volume: 25.0 (M3/min)

Maximum wind speed: 2.0 (M/Sec)

Room temperature:-10 ℃ ~ 55 ℃

Fire rating: 94V-0,UL

Protection class: IP44

Weight: 156 (g)

Packaging: individual box, ordinary cardboard cartons 60/1 case;

Note: this product is applicable to 11025, 12025, supporting the use of any 11,12CM fan like 12038.

Note: in order to ensure effective cooling of the controller and precision electronic parts, extended service life, lower failure rate, filters need regular cleaning to maintain ventilation filter effects.

Shop: ZL-150, ZL-205, ZL-256, ZL-800, ZL-801, ZL-802, ZL-803, ZL-804, ZL-805, ZL-806, ZL-807, ZL-9801a, ZL-9802a, CT-205, CT-256, CT-320 and other specifications shutters (ventilation filter Group).
