Overview

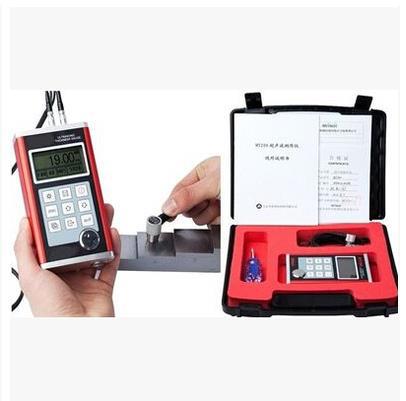

MT200Instrument is the intelligent ultrasonic thickness gauge, using the latest high-performance, low-power microprocessor technology based on ultrasonic measuring principle, you can measure the thickness of metal and other materials, and the material velocity can be measured. Monitoring of production equipment in the various pipes and pressure vessels, in the monitoring of their corrosion degree of thinning Also Can To All kinds of sheet metal and machined parts for precise measurements . This instrument Can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.

2 Technical parameters

l Display: dot-matrix LCD display 128x64 Chinese, high bright EL backlight;

l Measuring range: 0.75~ 300mm (In steel), metric and inch are optional;

l Velocity range: 1000~9999 m/s:

l Resolution: 0.1/0.01mm (Optional)

l Indicating accuracy: ± (0.5%H+0.04) mm H For measuring actual thickness

l Measurement cycle: single point measurement 4Times /Second scan mode 10Times /Second;

l Storage capacity: 20 groups that can be stored (up to 99 measurements for each group) thickness measurements, Either the printer or PC Connection To achieve mass storage.

l Alarm function: you can set limits on outside the limits of measurement will automatically beep alarm

l Operating voltage: 3V (2 AA size alkaline batteries in series)

l Continuous operating time: approximately 100 hours (when the backlight turns off)

l Standard communications interfaces: RS232, Either the printer or PC Connection

l Housing: extruded aluminum housing, elegant, portable, solid and durable, anti-jamming

l Dimensions: 132 x 76.2 mm

l Weight: 345g

3 Main functions

l Suitable for measuring metals (Such as steel, cast iron, aluminium, copper etc ), Plastic, ceramic, glass , Glass fiber And any other Super Sound The thickness of the conductor;

l Can be equipped with a variety of different frequency, different chip sizes of probe;

l Probe calibration of the zero point, two-point calibration function , The system error Automatic Amendment;

l Known thickness OK For determining speed of sound In order to Improved Measurement Precision;

l Single thickness thickness of two thickness mode and scan;

l Can be pre-set thickness value, minimum, out of range alarm;

l With Coupling State function;

l EL backlight display, convenient for use in dimly lit environments;

l Remaining battery indicators, real-time display battery life;

l Has auto sleep, energy-saving features such as automatic shutdown;

l With RS232 interface, you can easily and quickly Exchange data with the PC machine and parameter setting. You can connect to the printer (the manufacturers specified models) print a measurement report.

l Optional equipped with computer software, transmission measurement, measurement of storage management, statistical analysis of measured values, print test reports and other functions;

l Sealed metal case, small, portable, reliable, suitable for harsh operating environments, anti-vibration, shock and electromagnetic interference;

4 Working principle

This Ultrasonic Thickness gauge Measurement of thickness , Is the ultrasonic pulse generated by the probe through the coupling agent to be measured, part of the bottom surface of the ultrasonic signal is an object reflects, the probe from the echo reflected from the bottom surface to be measured, accurately calculate the round trip time of ultrasonic, and according to the following formula to calculate the thickness value and the calculated results are displayed.

In the formula:

H-Measuring the thickness;

v-Materials of sound;

t-Ultrasonic testing of round trip travel time.

5 Instrument configuration

Table 1 Instrument configuration
