Elite company specializes in the production of marine installation of wide-angle instrument. The main products by the Shanghai Bureau of measurement testing qualified, has made the China Classification Society in the form of recognition. Products meet national standards GB / T7676-1998, and so on.

The company's products and the use of marine power distribution cabinets, railway locomotives, power systems, petrochemicals, mining, nuclear power plants, mobile power stations and other high requirements, environmental harsh places.

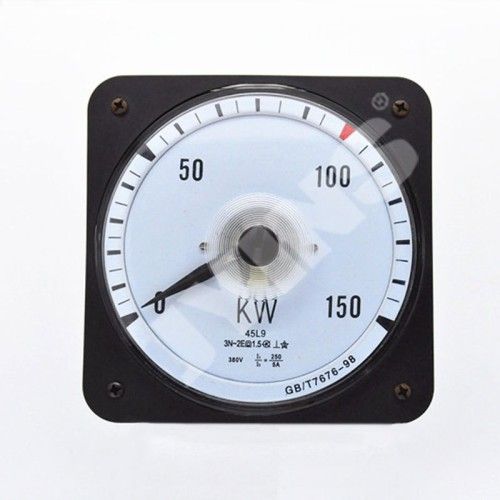

The main products are F96, Q96 (51L5, 51T6, 51L6), F72, Q72 (61T13, 61L13, 61L14), 45C8 (2101), 45L8 (2102, 2105-2109), 45C9 (2101), 45L9 (2181), 61C18 (2181), 61L18 (2182, 2185-2189), 61C19 (2181), 61L19 (2182-2185-2189), 63L10 series installation of wide-angle marine instrumentation.

This series of meters using national standards GB / T7676-1998, The standard equivalent to the International Electrotechnical Commission standards IEC (Fourth edition) part of the index is better than the Japanese industry standard JISC1102. Advanced movement structure This series of ammeter measuring mechanism for the magnetic system Zhang wire support, the rotating part of the friction-free, reliable, high mechanical impact resistance.Advanced converter circuit and indicator integrated structure AC current, voltmeter, RMS converter can be used to measure the correct voltage and current; active and reactive power meter, the use of integrated time division multiplier, and thus work reliably ,High precision. This series of instrumentation indicators and converters are integrated structure, and with a protective device for instrument installation and wiring provides a convenient instrument operating frequency in addition to reactive power meter ﹑ power factor meter, the other varieties are for 60Hz X60Hz Good linearity to ensure a high measurement accuracy of the instrument angle of up to 250 °, And good linearity, all printing dial, not only neat and beautiful, but also to ensure that the instrument has a high accuracy, AC-DC ammeter voltage meter 1.5Level (special orders can be done 1.0Level); active and reactive power meter for 1.5Frequency table 0.5level, 45~ 65Hz Table for 1.0Level, power factor meter 5.0level.

Advanced production technology and measuring equipment I plant production line to introduce Japan-specific tooling equipment and measuring calibration device ﹑ reference to Japanese technology for production. GB / T19001-2000quality certification.

Complete and complete sets of complete sets of the meter has a complete set of (see the list of varieties), with many special instruments, such as: expansion table, overload table; a single scale double color printing and color dial; a control signal indicating instrument and Special symbols, such as instruments, especially in the unbalanced circuit used in the three-phase four-wire meter, filled the gaps in the country

Main technical performance:

item Eye special Sex Participation number

Technology Surgery Mark quasi- GB / T7676-1998

fine degree Wait level See breed list

Make use fine degree -25Lt; 0 & gt; C~ +40Lt; 0 & gt; C (Exchange table 0~ 40Lt; 0 & gt; C)

Deposit put temperature degree 0~ +40Lt; 0 & gt; C

Refers to needle turn angle 250 ° (Synchronization table 360 °)

outer shell Yan color black

table plate Yan color white

Ann Installed Bit Put Vertical⊥)
