A, introduction to Hall sensor

NJK series of Hall-effect sensor is a voltage regulator, Hall-voltage generator, differential amplifier, Schmitt trigger, and collector output is composed of magnetic sensors, Its input for magnetic flux density, output is a digital signal.

ⅱ characteristic

Wide supply voltage range

High frequency

Long life, small size, easy to install

TTL.MOS and transistors, logic circuits and direct interface

Third, types and parameters

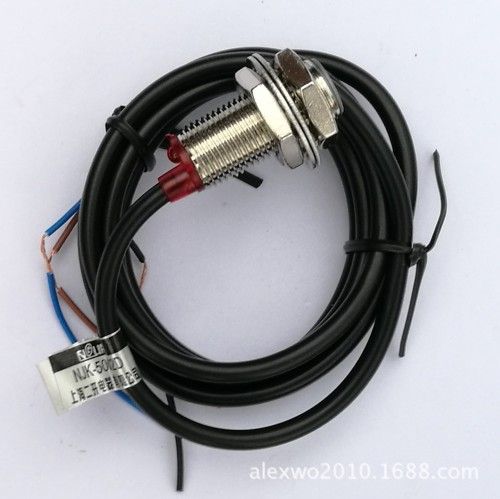

Model: NJK-5002D

Profile: M12mm cylinders

Output type: NPN three-normally closed

Detection range: 10MM

Power supply voltage: 5-24VDC,6-36VDC

Output current: 200mA

Test object: magnet

Switching frequency: 320KHZ

Shell material: copper
