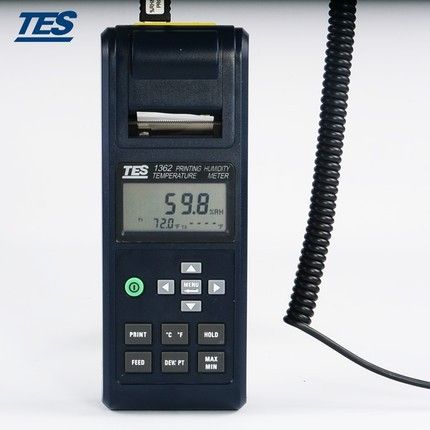

Taiwan list of TES TES-1362 digital thermometer and hygrometer | Industrial dew point measurement of high accuracy temperature meter

Taiwan list of TES TES-1362 digital thermometer and hygrometer | Industrial dew point measurement of high accuracy temperature meter

3600 CNY (524.17USD)

add to cart

Product parameters:

  • Brand: TES/TES
  • Model: TES-1362
  • Type: digital thermometer and hygrometer
  • Weight: 430 g
  • Temperature measuring range: 20 ℃ ~ 60 ℃ (-4 degrees f and 140 degrees f)
  • Humidity measurement accuracy: 10%RH ~ 95%RH


Basic parameters

  • 3 display contains the humidity at room temperature (T1) and Type k (T2) temperatures (-200 ~ 1333).
  • Dew point measurement function.
  • Read the minimum/maximum value/value locked.
  • Real time print measurement function.
  • Available prints.
  • Clock and date display.
TES-1362 specifications

Measuring range
T1: temperature:-20 ℃ ~ 60 ℃ (-4 degrees f and 140 degrees f)
Humidity: 10%RH ~ 95%RH
T2:K-type thermocouple:-200 ~1333 c (-328 to ~2431 f)
Resolution
0.1oC/0.1oF/0.1%RH ; -200oC~999oC/0.1oC;- 328oF~999oF/0.7oF
Accuracy
T1: temperature: ± 0.8 c, ± 1.5 degrees c
Humidity: ± 3%RH
T2:K-type thermocouple:-50 ℃ ~-200 ℃ ± (0.2%RDG + 1.8)
-50℃ ~ 500℃ : ±(0.1%rdg + 0.8℃)
500℃ ~ 1333℃ : ±(0.2%rdg + 1.8℃)
-58℉ ~ -328℉ : ±(0.2%rdg + 3℉)
-58℉ ~ 1000℉ : ±(0.1%rdg + 1.6℉)
1000℉ ~ 2431℉ : ±(0.2%rdg + 3℉)
Input protection
Maximum protection of 60Vdc or 24Vac
Sampling rate
1/sec
Operating environment
0 ~ 50 ℃ (32 ~ 122 ºf), 95% RH
Power supply
6 4th alkaline battery or 9 v DC/500 Ma
Battery life
About 30 hours (interval set to print 60 points).
60 hours (not using the printer function).
Outside dimensions
193 (l) x 74 (w) x 37 (h) mm
Weight
About 430 g
Annex
1. blow box, instruction manual, 6 caps 4th, alkaline batteries, k-type thermocouple (TP-K01)
2.2 rolls of thermal paper
3. temperature-humidity test
