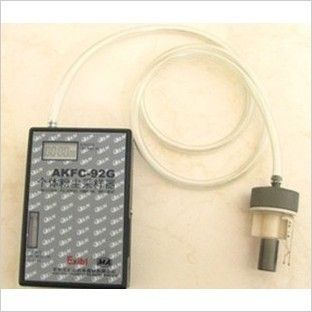

AKFC-92G type individual dust sampler is an instrument to measure the average concentration of dust in the air of a workgroup. The instrument consists of pump, digital timer, flow constant circuit, undervoltage protection circuit, safety power supply and so on. There is a group of micro dust pre-catcher, which can separate the respirable dust and group powder dust from the human body. The separation efficiency conforms to internationally accepted 'BMRC' curve standard.

The sampler shell adopts fire-retardant ABS plastic, and made a moisture-proof, anti-static treatment. Instrument features are closed touch button to start and stop, reducing the malfunction to ensure the life, and the dust more obvious. The machine has the characteristics of compact structure, small volume, light weight, automatic timing, intuitive flow display and safe and reliable. It is especially suitable for operation environment containing explosive gas.

Technical Parameters
1. Sampling flow: 2L / min
2. suction negative pressure:> 5000Pa
3. Load capacity:> 2000Pa
4. Dust collection range: all dust, breathing dust
5. Continuous working time:> 10h
6. Explosion-proof form: mine intrinsically safe (iI)
7. Noise: < 60dB (A)
8. Use of environmental conditions: Temperature: 0 ~ 35 ℃ Relative humidity: < 95% RH
9. Dimensions: 120 × 80 × 42 (mm)
10. Weight: 450g
