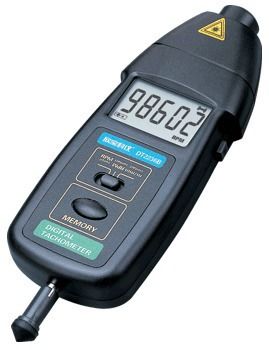

Photoelectric contact with the dual-speed /Wire-speed table

DT2236B

5Bit large-screen LCD display, word high 18 mm

Test range: Photoelectric speed mode: 2.5 to 99,999 RPM

Contact speed mode: 0.5 to 19,999 RPM

Contact line speed mode: 0.05 to 1,999.9 m / min

Resolution:

Photoelectric speed: 0.01 RPM (2.5 to 999.99 RPM)0.1 RPM (1,000 to 9,999.9 RPM)

1 RPM (10,000 RPM the above)

Contact speed: 0.01 RPM (0.5 to 999.99 RPM)

0.1 RPM (1,000 to 9,999.9 RPM)

1 RPM (10,000 RPM the above)

Contact line speed: 0.01m/min(0.05~99.99m/min)

0.1m/ Min (100 m / min the above)

Accuracy: ±(0.05%+1Words)

sampling time: 0.5second (120 RPM the above)

Range selection: Automatic switching

power supply: 3x1.5V AAA battery

Operating Current: Max 45mA
