Tachometer overview

Tachometer is one of the necessary instruments in the machinery industry, used to measure the motor speed, linear speed or frequency. Used in motors, Clothing, automobiles, aircraft, ships and other manufacturing industries. Most commonly used for hand-held centrifugal tachometer.Tachometer measurement in the national economy in various fields, are essential.

product description

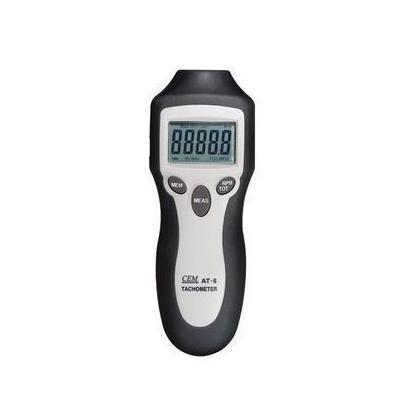

AT-6Digital tachometer using SCM technology, optoelectronic technology, laser technology to provide fast, accurate non-contact object speed measurement.

product features

• This non-contact digital tachometer can accurately and quickly test the rotation speed of rotating objects /number
• 2, This tachometer uses a single-chip technology, optical technology, laser technology
• 3, Two test modes: speed mode (unit: RPM ) And counting mode (Unit: REV)
• 4, Measuring a wide range of high resolution
• 5, High brightness LCD Display and backlight
• 6, You can view the maximum, minimum and final measured values ​​of the internal memory

Product Specifications

display :5Bit number LCD display

Precision :±(0.05%+1d)

Test Range :2~ 99,999 RPM

Counting range :1~ 99,999 REV

Resolution : 0.1 RPM (2~ 999.9 RPM)

1 RPM (exceed 1000 RPM)

sampling time :0.5second (exceed 120 RPM)

Test distance : 50 mm ~ 500 mm

Time base :Crystal oscillator

Power consumption :about 45 mA

power supply :9VBattery or 6VExternal direct current

Operating temperature range :0℃ ~ 50Lt; 0 & gt; C

size : 160x58x39mm

weight:151g

Standard Package: digital tachometer, manual, warranty card, 9VBatteries, soft leather bags, color box.
