Basic functions

Model

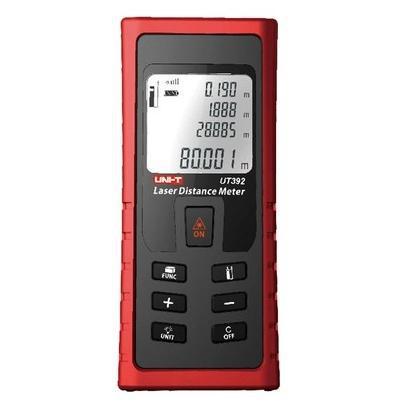

UT392

Measurement accuracy (typical)

±1.5 mm

Measuring range

0.05~ 80m

Units of measurement

M/in/ft

Laser class

635nm,﹤1mw,2Class

Special features

Data storage

20Group

Each set of batteries can be measured

More than 5,000 times

The maximum value, the minimum value measured

√

Continuous measurement

√

Backlight display

√

Displayed across multiple lines

√

Area/volume/Pythagoras function

√

Laser signal strength indicator

√

Measurement reference edge select

Optional fuselage top, middle, bottom and extending the rod as a benchmark

Tripod thread

√

Dustproof/waterproof rating

IP54

Storage temperature range

-20°C ~ 65°C

Operating temperature

-10°C ~ 40°C

General characteristics

Power supply

AAA 2×1.5V

Colors

Red + gray

Weight

175g (Not including batteries)

Set dimension

126×54×29mm

Standard accessories

Carrying cases, batteries

Standard packaging

Blister, instruction manual, warranty card

Standard size

40Taiwan

Product description

Faster, more accurate measurement speed and accuracy;

Laser signal strength indicator;

New ergonomic design;

According to the measured lwh fast intelligent computing areas and volumes, without calculation we.
