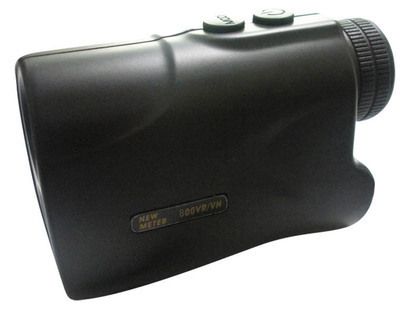

600VR/VH side-angle machine handheld laser altimetry ranging 600 m

Uses or applications:
Suitable for power measurement, construction survey and design of construction, pole spacing measurements, firefighting systems, surveying and mapping, **, animal research, investigation and design of outdoor and travel and tourism, sports, golf, field hunting, camping hiking, outdoor hiking and other sports, is to improve the quality of the work and activities of measuring target distance in good hands.

Product description:

600VR/VH laser ranging telescope is a telescope of angle measurement and angle measurement of laser range finder portable photoelectric instrument, the synthesis telescope, laser ranging and angular features, mainly in two aspects: 1, clearly observe the object at the same time, fixed objects within a certain range of distance can be measured. Ranging high accuracy and short range time from direct display, low power consumption and automatic power off and so on. 2, 600VR/VH-melting together the latest technology, while achieving the target distance and angle measurement. Acquires the target distance and also displays the angle of the telescope to the goal lines and the ground plane (elevation +, angle is-), the relative height and horizontal distance. Instrument of laser emission power, eye-safe; Does not require cooperation objectives for any target; Small size, light weight, easy to carry. CR2-3V used in battery-powered, purchase and replacement is easy.

Features or functions: Instrument of laser emission power, eye-safe; Does not require cooperation objectives for any target; Small size, light weight, easy to carry. CR2-3V used in battery-powered, purchase and replacement is easy.

Technical parameters:
1 measuring range range: 5M-400M~900M; 2 range: ± 1M (usually); 3 angular features:; 4 scan range features:; 5 telescope magnification: 6X; 6 telescope objective lens diameter: 24mm; 7 the eyepiece of the telescope aperture: 16mm; 8 out pupil diameter: 3.8mm; 9 field: 7 °; 10 depending on the degree of adjustment range: ± 3 diopters; 11 product weight: 190 grams; 12 battery type: Li-CR2-3V; 13 LCD monitor: transmissive LCD red/black. 14 laser source: level 15 telescope eye safety systems: 7X zoom in, view 122m/1000m 16 show: transmissive LCD 17 units: meters, yards-18 operation mode: horizontal distance, vertical distance, distance, angle
