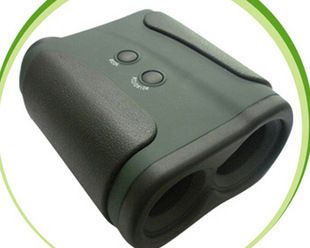

1500VR/VH portable high-precision laser altimeter | Rangefinder
Product parameters:
- Type: laser rangefinder
- Brand: snow color
- Model: 1500VR/VH
- Measuring range: 1500
- Accuracy: 0.1
1500VR/VH portable high-precision laser altimeter 1500 m
Uses or applications:
Suitable for power measurement, construction survey and design of construction, pole spacing measurements, firefighting systems, surveying and mapping, **, animal research, investigation and design of outdoor and travel and tourism, sports, golf, field hunting, camping hiking, outdoor hiking and other sports, is to improve the quality of the work and activities of measuring target distance in good hands.
| Product description: 1500VR/VH in full knowledge of the user's actual needs on the basis of the development of a distinctive, powerful integrated laser measuring products. 1500VR/VH is a integrated distance measurement, angle measurement and height difference measurement function of advanced equipment. Distance measurement Mainly refers to the slant range measurement, which is the distance from the instrument to a connection object. 1500VR/VH laser, laser detectors and pulse counters are accurately adjusted and fully guarantee the accuracy less than 0.5 m up to 200 meters; Some strong reflective target, but special REF mode is designed to improve the accuracy of measurements. Height difference measurement Altitude difference measurement of space between any two points can be measured height difference, whether or not both on the same vertical line. This feature widely in power, forestry, communication and other fields have very good application. Height measurement is a special case of this model. This feature has a high practical value in the actual work. Angle measurement Angle measurement refers to the bow and elevation measurements (not in horizontal angle measurement). 1500VR/VH measurement device used is a high precision electronic inclination measuring chip, stable and reliable performance | |
| Features or functions : 1500VR/VH laser altimetry/distance/angle-measuring machine technical features: 1, unique red laser sighting system, particularly suitable for targeting small target; 2, unique line of laser beam, particularly suitable for measuring small target; 3, after transformation of unique laser, especially suitable for measurement of power line; 4, fast speed, instantaneous measurements; 5, within 200 meters of distance measurement resolution of 0.1 m; Accuracy is less than 0.5 m; 6, unique height differences between any two points of measurement functions, solve the most practical measurement issues; 7, height program has been specifically designed and greatly improve the accuracy of height measurement; | |
| Technical parameters: Technology parameter characteristics TECHNICAL CHARACTERISTICS 1, optical class observation zoom magnification: 7 times times lens diameter: 32mm out pupil diameter: 4mm depending on field: 122m/1000m or 133yad/1000yad film Department: Multilayer Composite plating film Prism type: 4 class roof prism focusing system: monocular focusing 2, laser class laser type: 1 class (people eye security) laser wavelength: 905nm measuring drive range: 5~ 1500m distance precision: Normally ± 1M/Yad scan mode: unit conversion: metres/yards of reflection level indicates that there are 3 other battery type: CR2 3V lithium battery voltage indication: display: transmissive liquid crystal display total weight: 345 g dimensions: 101x57x122 mm |
