Product parameters:

• Type: laser rangefinder
• Brand: CEM/everbest
• Model: iLDM-150
• Measuring range: 0.05~70m
• Accuracy: 1.5
• Operating voltage: 3
• Weight: 203
• Size: 135*58*33
• Scope of application: measure length, area, volume
• Customized processing: no

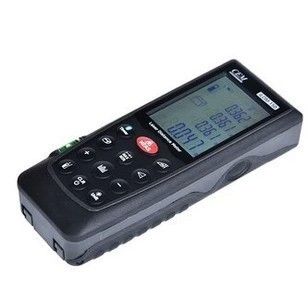

CEM everbest iLDM-150 mobile terminal laser range finder with the newly introduced Meterbox wireless transmission, timing measurement, angle measurement, measurement of Lofting, level bubble, bottom bracket, flanking measure key functions. Range 70 m, accuracy ± 1.5 mm, can be used to measure the site restore, data mining permits and transport, analysis, cloud storage requirements.

"Features"

1. Meterbox-iLDM The world's first intelligent software and cloud services
2. 70Metre range, 1Mm resolution
3.±1.5Mm high precision
4.Distance, area and volume easily calculate
5.Pythagorean theorem calculation functions, triangle measurements
6.Continuous measurement, the maximum /Minimum number of measurements
7.Setting out survey, cumulative length measurement, angle measurement
8.Bottom, top and extension measuring switch
9.Auto power off function, backlight display
10. IP54Protection class

"Technical specification"

Measurement range: 0.05~70Here metres
Measurement accuracy: ±1.5Millimetre
Smallest unit of display: 1Millimetre
Measurement units: meters, inches, feet
Laser levels: level II635nm Maximum output power ﹤1mW
Dust-proof protection: IP54Waterproof and dustproof
Saving data: 20Group
Bluetooth range: 10Here metres
Battery specifications: 2Section 1.5V 'AA'
Automatically turn off the laser: 30Second
Automatic shutdown: 3Here minutes
Measurement range: ±65°
Sensor accuracy: ±0.5°
