Contact speed /Wire-speed table

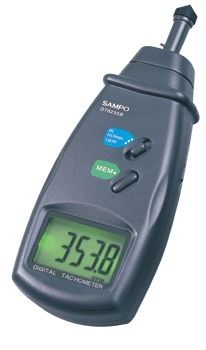

DT6235B

Specifications: 5 large-screen LCD yellow-backlit display, word high 18 mm

Test Range: 0.5-19999 RPM (turn /Min) contact speed

0.05-1999.9m / min (Meter /Minute )Contact line speed (Metric)

0.2-6560 ft / min (foot /Minute )Contact line speed (Inch)

Resolution: Speed: 0.1RPM (turn /Minute) (0.5-999.9 RPM)

1RPM (turn /Minute) (1000 RPM the above)

Line speed: 0.01m/ Min (Meter /Minute) (0.05 to 99.99 m / min)

0.1m/ Min (Meter /Minute) (100m/ Min the above)

0.1 ft / Min (foot /Minute) (0.1-999.9 ft / min)

1 ft / Min (foot /Minute) (1000ft / Min the above)

Accuracy: ±(0.05%+1)

sampling time: 0.5second (120 RPM the above)

Range selection: Automatic switching

Operating Current: Max 45mA

Memory: Automatic memory maximum, minimum ,The last measured value is automatically stored up to 96Data

Timebase: 6MHz Quartz crystal

Time Base Accuracy: 10X10-6(0℃ ~ 50Lt; 0 & gt; C)

power supply: 4X1.5V Battery or external 6VDC power supply
