Product parameters:

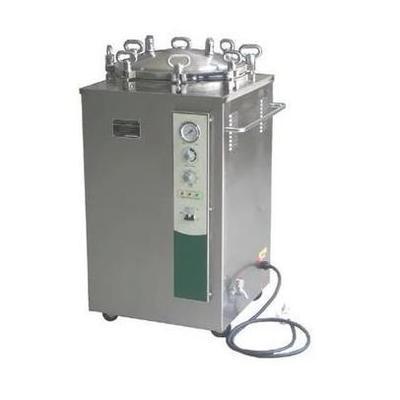

Vertical pressure steam sterilizer
Performance and characteristics:
1. high quality stainless material
2. led display working status
3. over temperature, over pressure automatic protection function
4. dual scale pressure gauge readings
5. water protection control
6. sterilization automatic stop when end buzzer warning
7. easy to operate, safe and reliable
8. equipped with double stainless steel basket
Technical parameters:
Technical parameters | LS-35LJ | LS-50LJ | LS-75LJ | LS-100LJ |
Sterilization Chamber volume | 35L (φ318×450) mm | 50L ( φ340×550) mm | 75L (φ400×600) mm | 100L (φ440×650) mm |
Rated working pressure | 0.22MPa | |||
Rating working temperature | 134 c | |||
Maximum working pressure | 0.23Mpa | |||
Heat uniformity | ≤ ± 1 ℃ | |||
Time selection range | 0~ 60min | |||
Temperature selection range | 105~ 134 c | |||
Power supply voltage | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension (mm) | 480x460x850 | 520x520x980 | 560x560x980 | 590x590x1080 |
Transport volume (mm) | 570x550x970 | 590x590x1110 | 650x630x1150 | 680x650x1220 |
Gross/net weight | 56Kg/ 42Kg | 68Kg/ 50Kg | 90Kg/70Kg | 105Kg/85Kg |
